Motor Cooling Fan, 40mm Twister with Plug for Sledge - Hot Racing

About this part

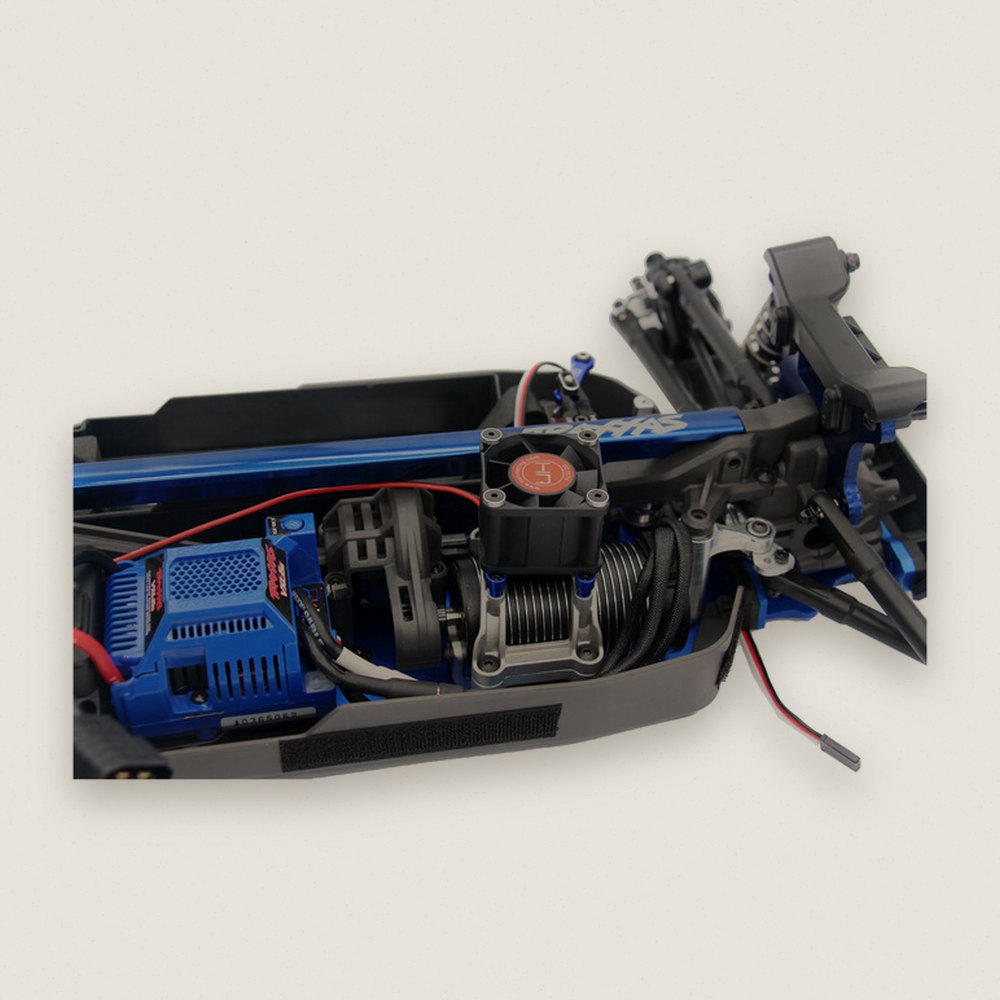

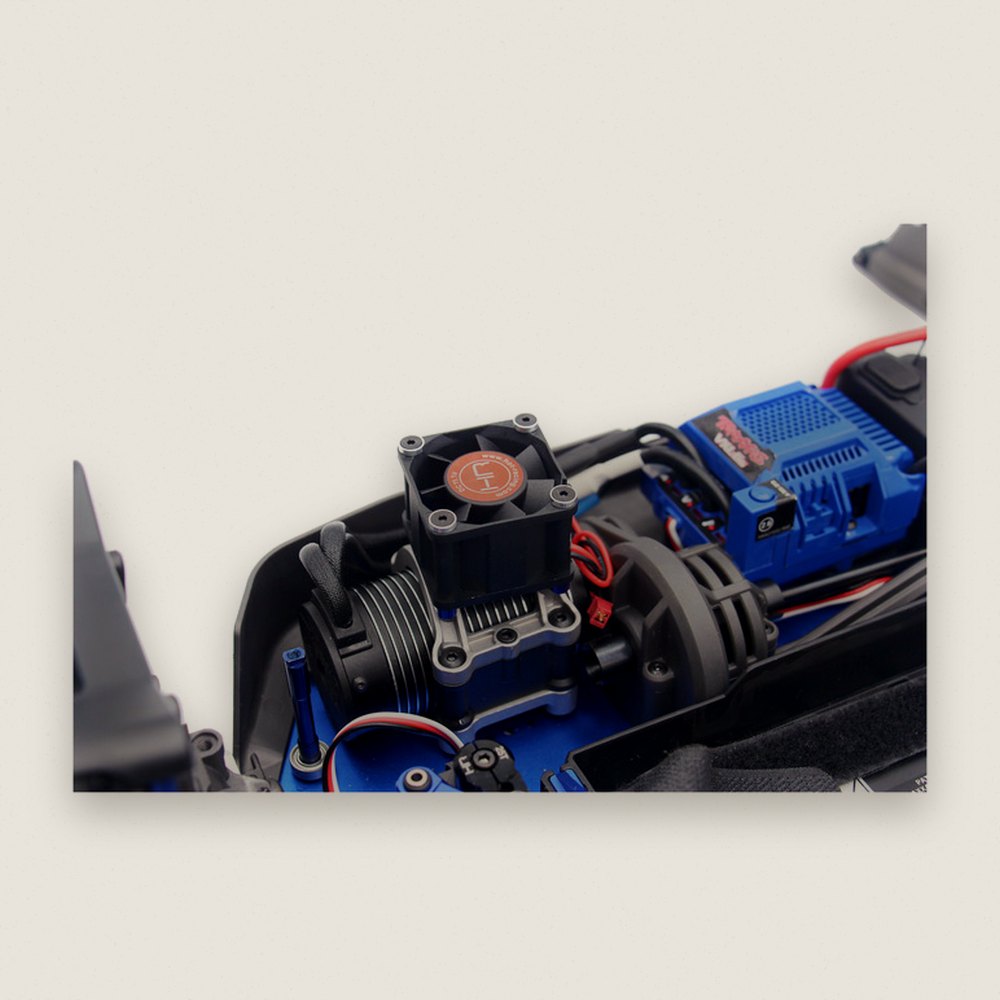

40mm Twister blower fan from Hot Racing, a 7-blade ball bearing unit that pushes air over the motor heat sink and gets your temps down. Comes with an adapter and a TRA plug, so it's ready to bolt in.

Features

• 12,000 RPM forced airflow over the motor heat sink
• Large 40x40x28mm 7-blade fan
• Custom aluminum adapter for simple installation
• Black anodized aluminum heat sink for efficient heat transfer
• Adapter with TRA plug
• 12AWG and 24AWG silicone wire

You will receive

• One (1) fan with plug
• FITS:
• Traxxas 1:8 Sledge

Requirements

• Installation
• Loosen the fan screws during install, then tighten them back down afterward. This keeps the fan from getting tweaked or bound up.
• Medium thread lock (blue) on the fan mount screws
• For off-road use, make sure the fan blades are protected
• Uses a TRA connector. If your system runs a different connector, switch it or use an adapter.

Specifications

• Size: 40x40x28.9mm
• Input voltage: 11.1V (12V max)
• Lead length: about 170mm (may vary)
• Mounting pattern: M3x32mm square

Comments

• Do not use this fan on a single 6-cell pack
• Replacement Hot Racing fan: RAON404FP

Fits
