90mm Air Shock, Blue Internal Spring - Hot Racing

About this part

Blue-capped Hot Racing 90mm internal spring air shocks, built for crawling and custom rigs.

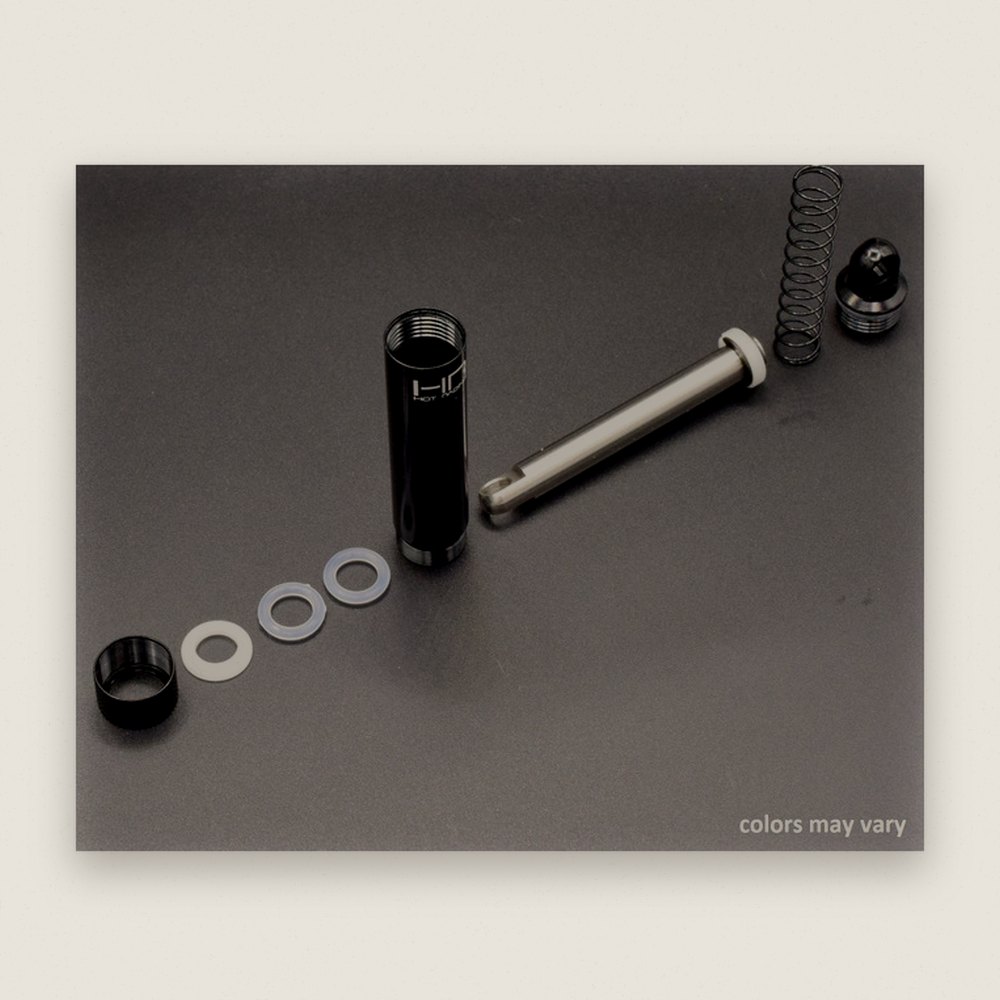

Features

• CNC machined aluminum bodies, black anodized
• CNC machined aluminum upper cap with o-ring seal, blue anodized
• CNC machined aluminum lower cap with shock shaft guide, blue anodized
• Precision machined 7mm stainless steel shock shaft
• Double o-ring lower shaft seal
• Air damping
• Three internal spring rates: gold (soft), black (medium), silver (stiff)
• All aluminum is anodized for durability, corrosion resistance and looks

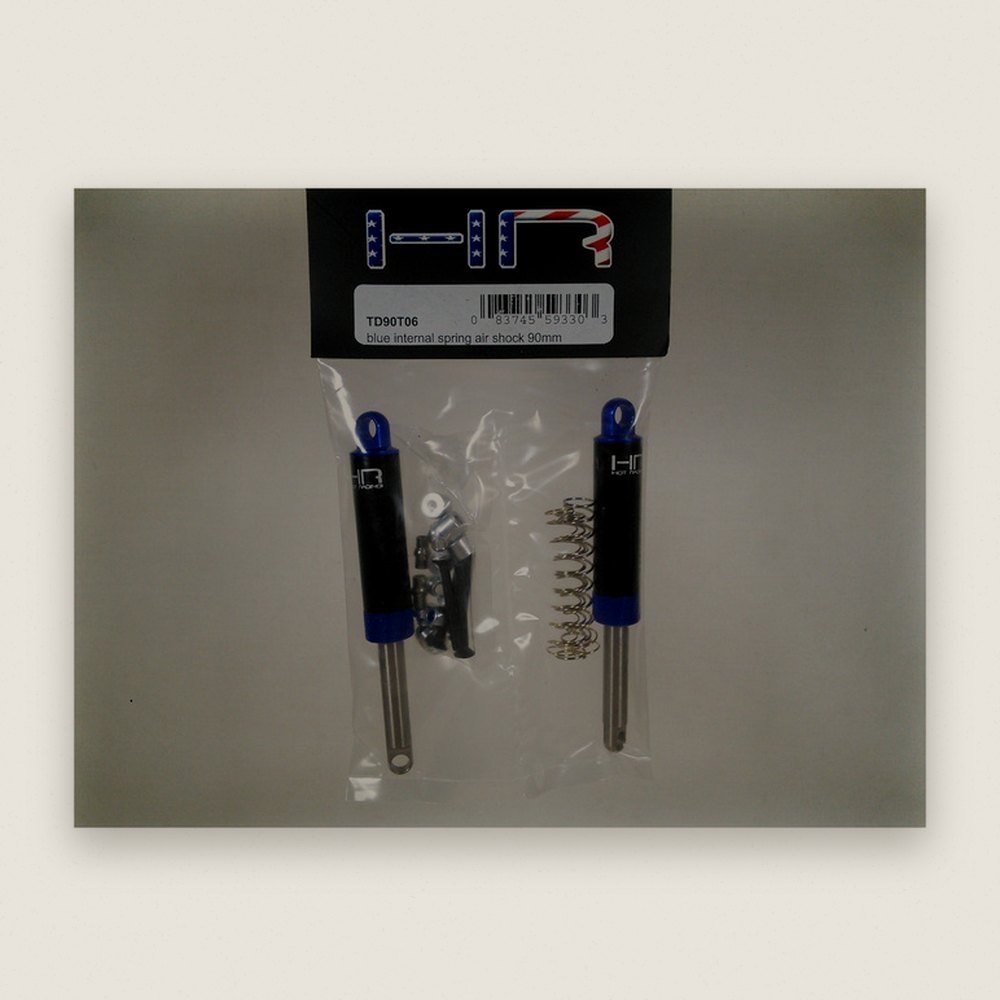

You will receive

• Two (2) assembled shocks
• Two (2) each of gold, black and silver springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Team Associated Green Slime ASC1105 recommended on lower o-ring seals

Specifications

• Extended center to center: 90mm (3.5 inch)
• Compressed center to center: 62mm (2.4 inch)
• FITS:
• Tamiya Juggernaut
• Tamiya Clodbuster/Super Clodbuster
• Tamiya Hi-Lift: F350 Tundra HiLux
• Tamiya CR-01 Crawler FJ40
• Axial SCX-10 Scale Truck
• Axial SCX-10 II
