Adjustable Damper, 25mm for Axial SCX30 - Hot Racing

About this part

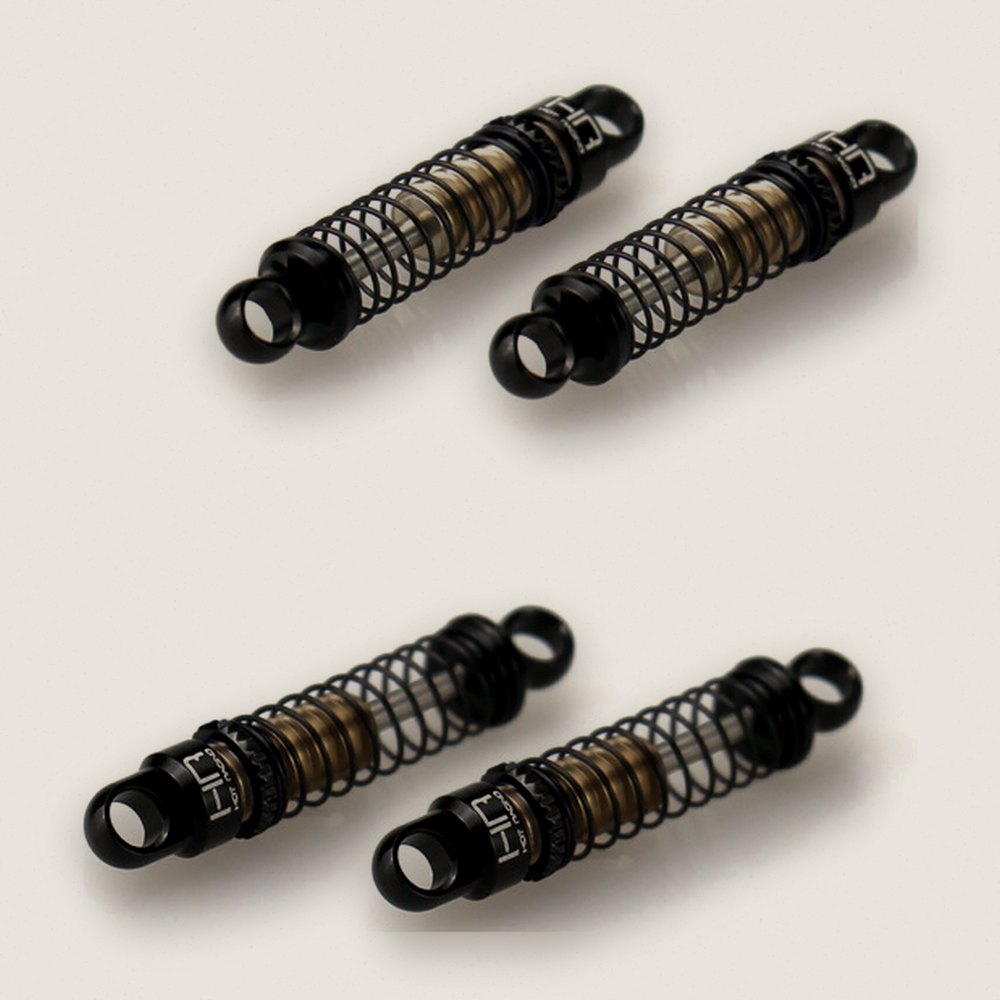

Hot Racing 25mm adjustable spring compression damper set for the Axial SCX30 and other custom rock crawler projects. Friction-type, not oil-filled, with three spring rates included for tuning.

Features

• CNC machined T6 aluminum shock bodies
• Precision-machined stainless steel shock shaft for durability
• Friction damping, not oil-filled
• Three spring rates included
• Hard anodized for durability, corrosion resistance and good looks

You will receive

• Four (4) assembled shocks
• Four (4) silver springs (soft, 13 turns)
• Four (4) black springs (medium, 12 turns)
• Four (4) gold springs (firm, 11 turns)
• Mounting hardware

Requirements

• Installation on vehicle required
• SPL10G08 recommended for smoother action

Specifications

• Extended center-to-center length: 24.5mm
• Compressed center-to-center length: 18mm
• Overall length: 29mm
• Body diameter: 3.85mm
• Shaft diameter: 1.5mm

Comments

• When swapping springs, remove the cap and spring adjuster first. That step keeps the install smooth.
• Do not try to remove the shock end for this process.
