'Plug & Connector Soldering Jig'

About this part

This is Hot Racing RC connector soldering Clamp jig.

Features

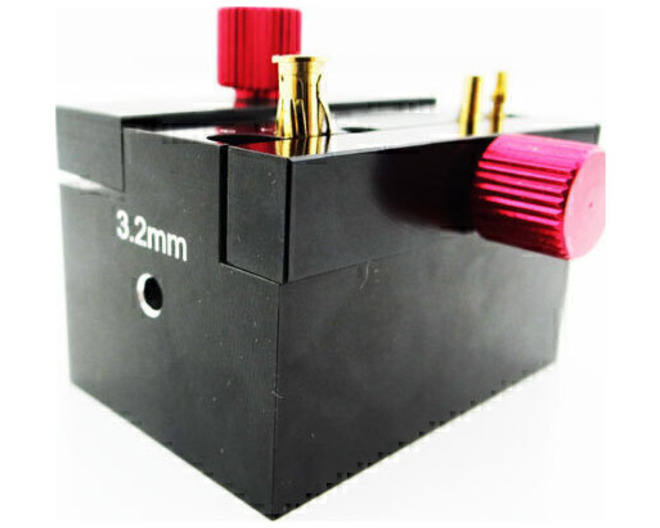

• Ideal for soldering and all types RC connector This jig quickly and securely clamps, holds, and releases these connectors for your soldering tasks.
• This Jig clamp holds the most common RC connectors
• XT60
• T-Plug connector
• TRA TRX Connector
• EC-2
• EC-3
• EC-4

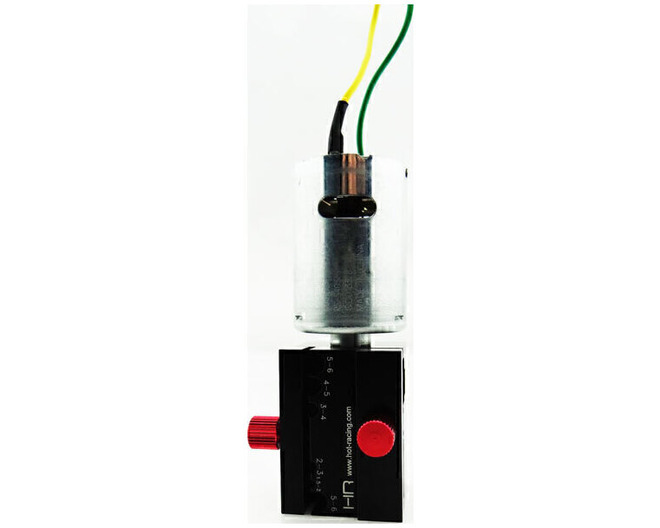

• EC-5 Micro 2pin to 4pin connectors Bullet connectors from 2 to 6.5 mm Can be use as motor holder fit both 5mm and 1/8 motor shaft.

You will receive

• One Hot Racing RC connector soldering Clamp jig

Note

• Soldering tips: 1) soldering iron is must be very HOT!!!!
• 2) Tin the wire and the connector pin with good amount of solder.
• 3) Now place the wire and connector pin together with the help of a very hot soldering tip the solder will melts
• 4) Then remove the soldering tip from the solder join, and let it cool done
• Warning
• The most dangerous is to connect positive and negative wires together creating a short circuit.
• 1) One of the wires must be properly isolated at all times.
• 2) Only clamp on one pin at a time from the same battery.
