Aluminum Front Lower Front Suspension Arm Mount Arrma 1/8

About this part

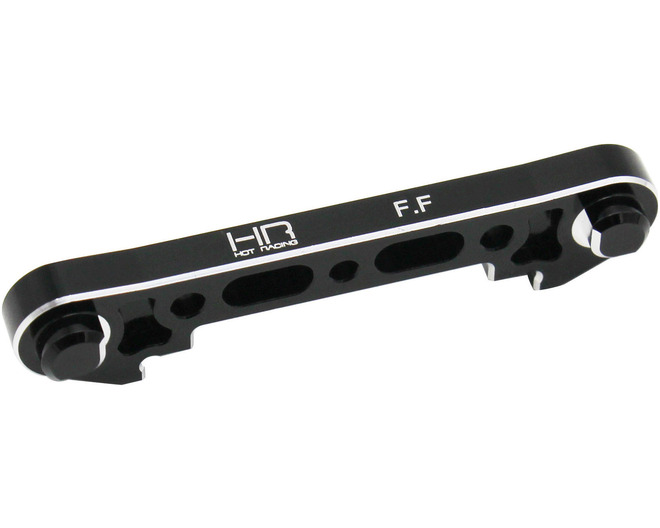

Hot Racing aluminum front hinge pin brace arm mount for the front lower suspension of Arrma 1/7 on-road and 1/8 4x4 vehicles. It eliminates the need for the stock hinge pin mount.

Features

• CNC machined 6061 aluminum
• Eliminates the stock hinge pin mount

You will receive

• One front lower front hinge pin brace arm mount.

Requirements

• Installation. Medium thread lock on the screws.

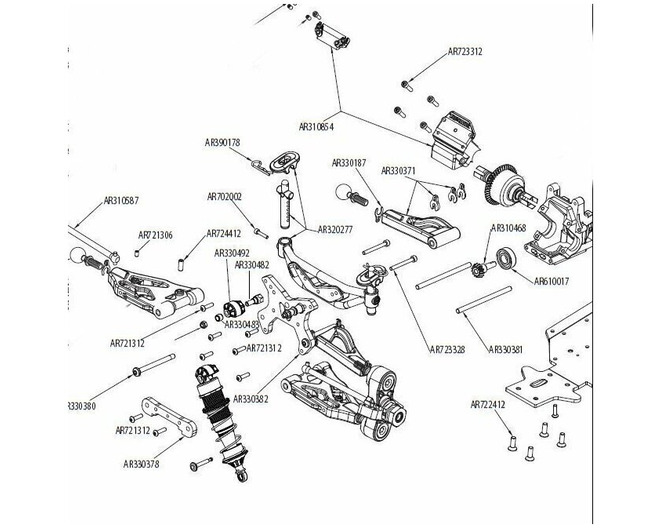

• Replaces front lower front hinge pin braces, Arrma part AR330378.
• FITS:
• Arrma 1:10 4x4 Senton 6S BLX
• Arrma 1:7 Felony
• Arrma 1:7 Fireteam 6S BLX Assault
• Arrma 1:7 Infraction
• Arrma 1:7 Limitless
• Arrma 1:7 Mojave
• KNOWN ARRMA PART NUMBERS:
• Infraction: ARA109001
• Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
• Limitless: ARA109011
• Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
• Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
• Senton: AR106007, AR102654, AR102673
• Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
• Typhon: AR106001, AR106013, AR106028, ARA106046
• Parts marked optional may fit but could need modification.

Fits

Replaces stock part
