Channel Lock Secure Motor Mount Arrma Karton Outcast

About this part

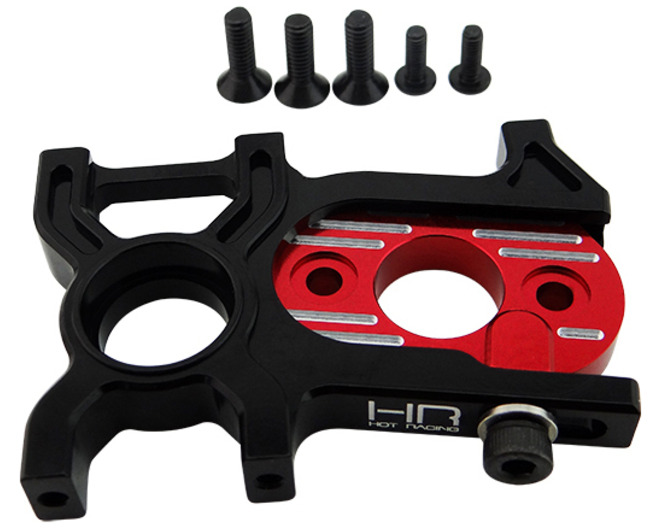

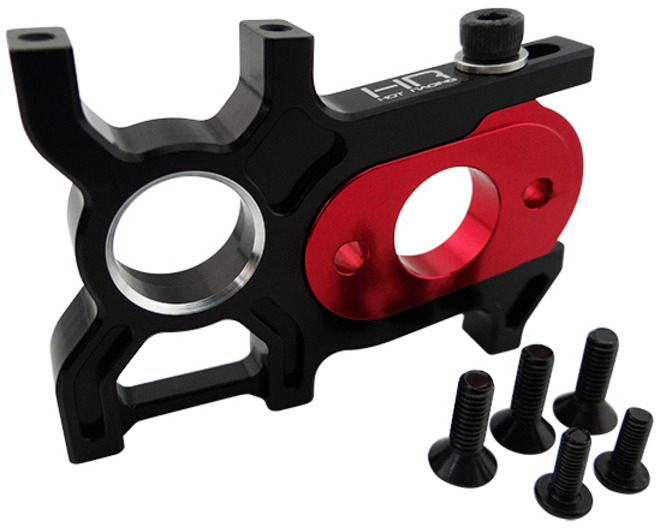

Aluminum sliding channel lock motor mount from Hot Racing, CNC machined from 6061 in black and red anodize. It's a two piece design, so you adjust gear mesh from the top. The V-groove screw lock keeps the motor locked down, and the heat sink fins help it run cooler. Use with support AON38A01 and motor mount AON38M01.

Features

• CNC machined 6061 aluminum, black and red anodized
• Two piece design for gear mesh adjustment from the top
• Channel lock with V-groove screw lock
• Aluminum motor plate heat sink fins help dissipate heat

You will receive

• One (1) aluminum motor mount

Requirements

• Installation
• Medium thread lock recommended on screws

Specifications

• Slider plate motor shaft hole diameter: 14mm

Comments

• Replaces part of the stock motor mount from AR310446
• KNOWN VEHICLE PART NUMBERS:
• Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green)
• Notorious: AR106034/6 (black/blue)
• Outcast: AR106021, AR106027, AR106032/3 (silver/orange)
• Senton: AR106007, AR102654, AR102673
• Lines marked optional may fit but may need modification.
• FITS:
• Arrma 1:10 4x4 Senton 6S BLX
• Arrma 1:8 4x4 Kraton BLX 6S
• Arrma 1:8 4x4 Outcast BLX 6S
• Arrma 1:8 4x4 Talion BLX 6S
• Arrma 1:8 4x4 Typhon BLX 6S

Fits

Replaces stock part
