Aluminum Hd Gearbox Case Bulkhead Arrma Kraton Outcast

About this part

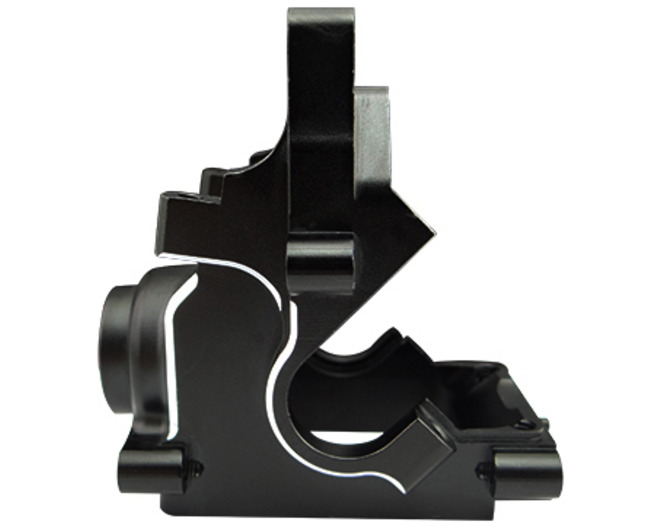

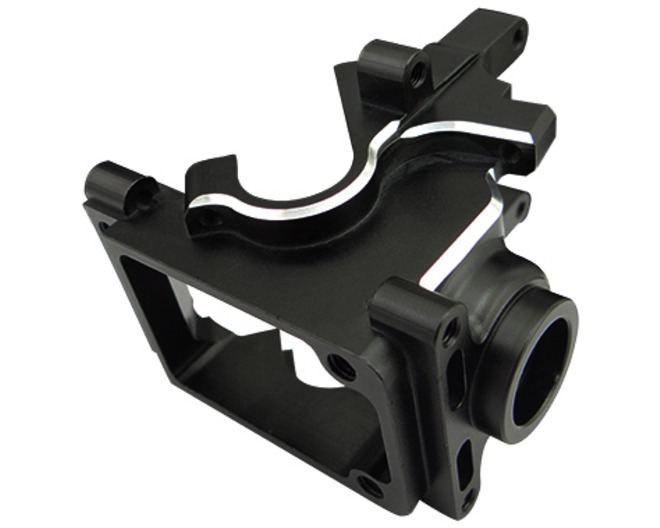

Upgrade the lower gearbox case and get a stiffer drivetrain out of it. This aluminum case comes with a sealed HD output bearing and bolts onto the front or rear of the 1/8 BLX platform.

Features

• Stronger, stiffer assembly
• Swaps the stock 5x11x4mm unsealed outer pinion bearing for an oversized 5x13x4mm sealed bearing
• CNC machined aluminum, anodized black with chamfered edges
• Fits front or rear
• Direct-fit hop up, no modification needed
• IN THE BOX:
• One gearbox case main body
• One 5x13x4mm black rubber sealed ball bearing
• Hardware

Requirements

• All other parts besides the lower case, including the stock 8x19x6mm inner pinion bearing
• Installation per vehicle manual
• Medium thread lock (blue) on screws

Notes

• Will not work with Felony or Infraction
• Replaces the factory lower case from Arrma AR310427 or AR310854
• Fits Kraton BLX 6S, Outcast 6S BLX V5, Talion BLX 6S, Senton BLX and Kraton V6

Fits

Replaces stock part
