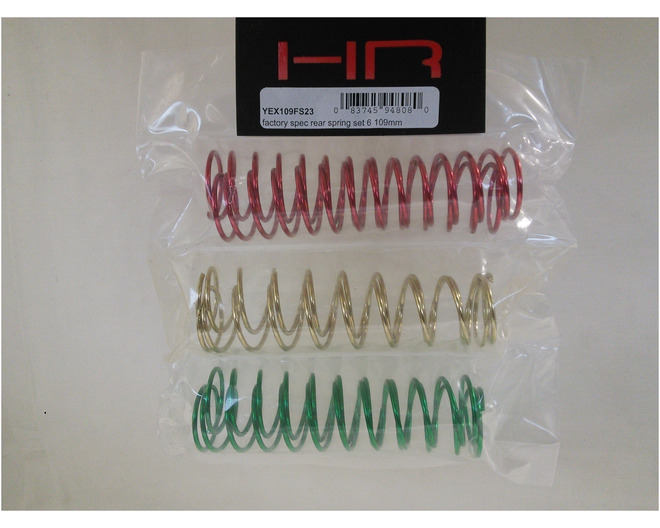

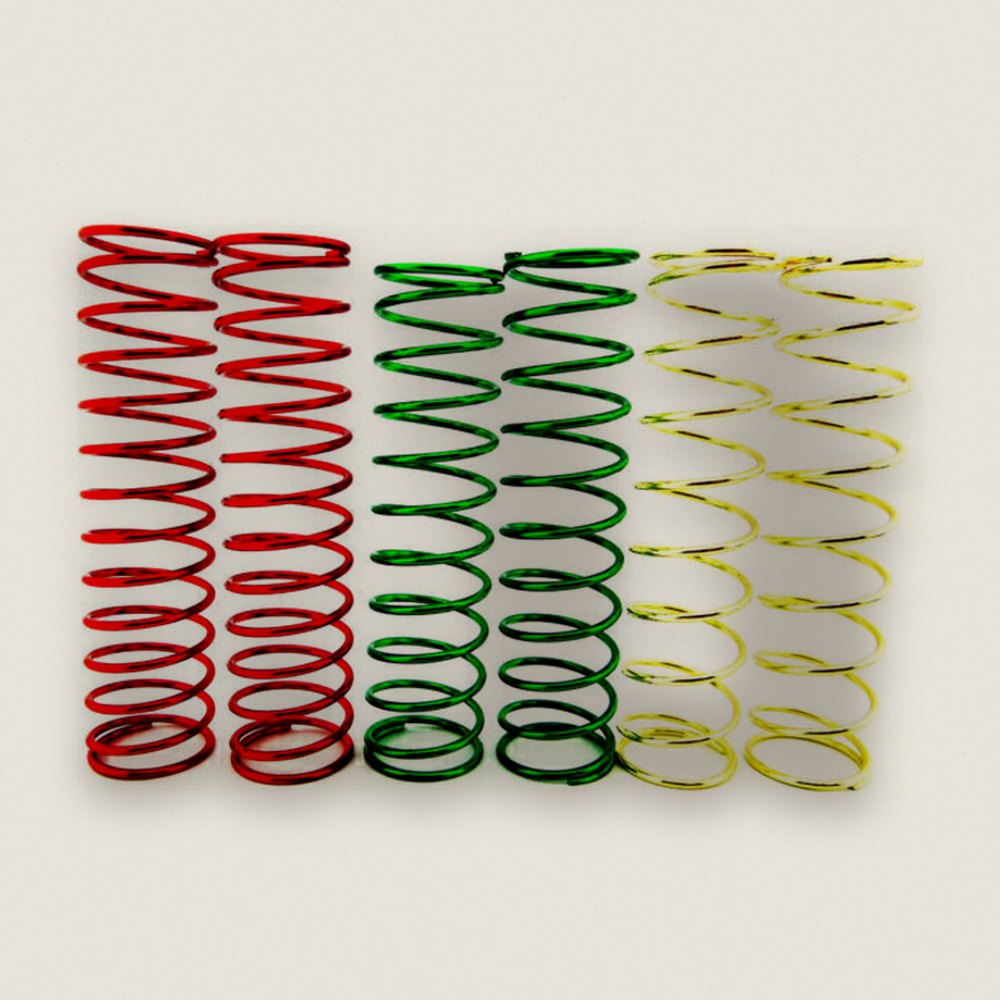

Factory Spec Spring Set (3 sets) - Yeti XL

About this part

• Hot Racing factory spec.
• 23x109mm shock springs for the Axial Yeti XL

Features

• Cold-coiled springs are designed at Axial factory dimensions and rates
• High quality spring steel construction
• Three spring rates

You will receive

• Two (2) red springs
• Two (2) green springs
• Two (2) yellow springs

Requirements

• A single spring shock setup is required for these springs; a dual rate spring setup is not compatible

Specifications

• Red spring: 23x109mm, 3.34lbs/in rate
• Green spring: 23x109mm, 5.35lbs/in rate
• Yellow spring: 23x109mm, 6.76lbs/in rate

Comments

• See Hot Racing part YEX109RS23 for progressive rate spring options
• Replaces factory Axial springs: AX31240 Red spring: 23x109mm, 3.34lbs/in rate
• AX31241 Green spring: 23x109mm, 5.35lbs/in rate
• AX31242 Yellow spring: 23x109mm, 6.76lbs/in rate
