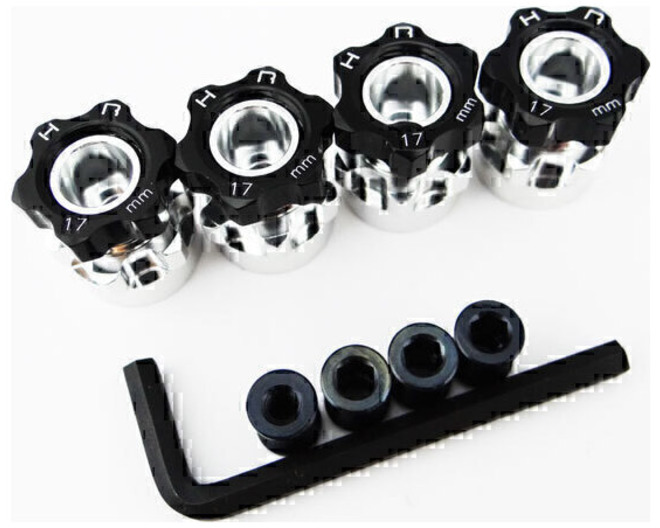

Hex Hub Adapters 12mm to 17mm W/ 6mm Offset

About this part

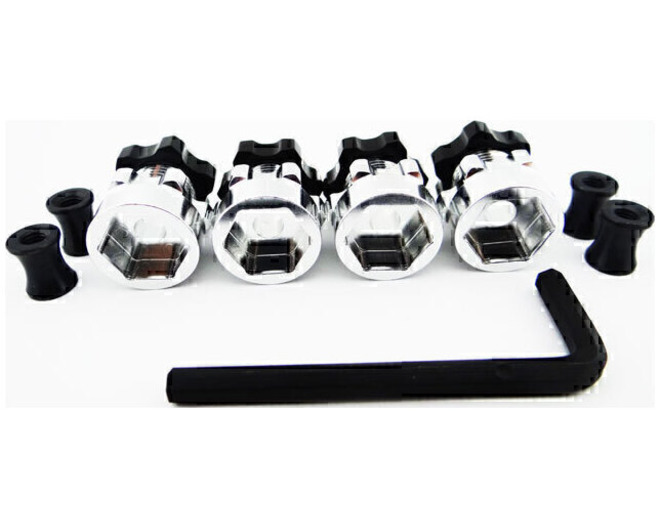

Hot Racing's aluminum 12mm to 17mm hex wheel hub adapters. These adapters are compatible with many 1/10th scale vehicles with factory 12mm hex hubs and allow the use of 17mm hex wheels, all while adding a 6mm width extension per side of the vehicle for a wider, more stable, stance.

Features

• CNC machined solid billet aluminum construction
• 12mm hex to 17mm hex conversion
• 6mm offset extension per side
• 17mm wheel nuts
• Adapters are anodized silver in color, wheel nuts are anodized black
• Wheel nuts feature an internal o-ring to maintain the nut position, even under the most severe conditions

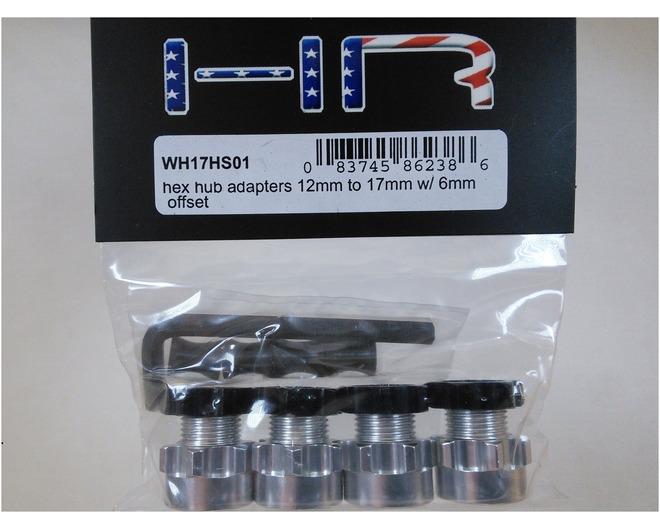

You will receive

• Four (4) wheel adapters
• Four (4) wheel nuts
• Four (4) M4 axle hub nuts

Requirements

• Recommended to use a removable-type locking adhesive on axle nuts
• These adapters fix a wide array of vehicles. Make sure the vehicle uses a hex at least 5mm thick, or the adapter may bind against the hub.

Specifications

• Total length: 20mm
• Max axle diameter: 5mm
• Axle thread: M4
• Hex depth: 5mm

Comments

• See Hot Racing RSSLF117X for replacement/spare M4 axle hub nuts
• O-rings are 11x1mm

Fits
