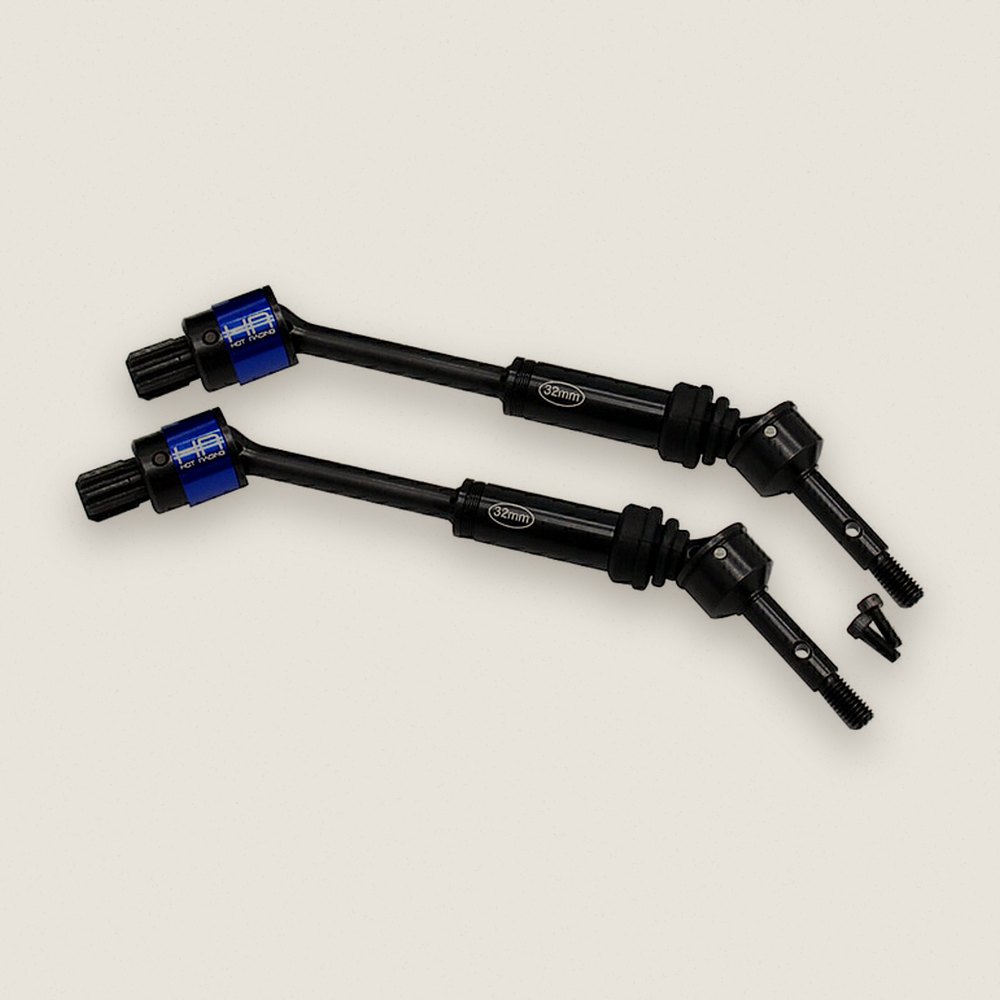

Steel Front Cv Splined Axles Drive Shaft TRA UDR

About this part

Hot Racing optional upgrade heavy duty front splined star drive CVD axle kit for the TRA Unlimited Desert Racer Series

Features

• Completely replaces factory dogbone-style axles from the differential all the way out to the wheel hex
• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement

You will receive

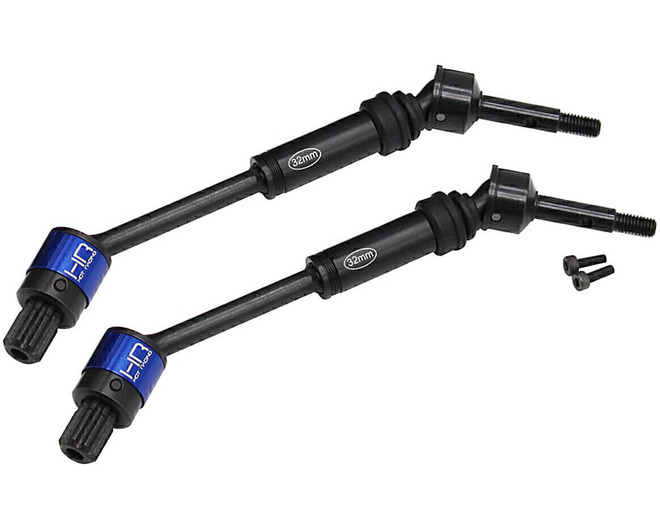

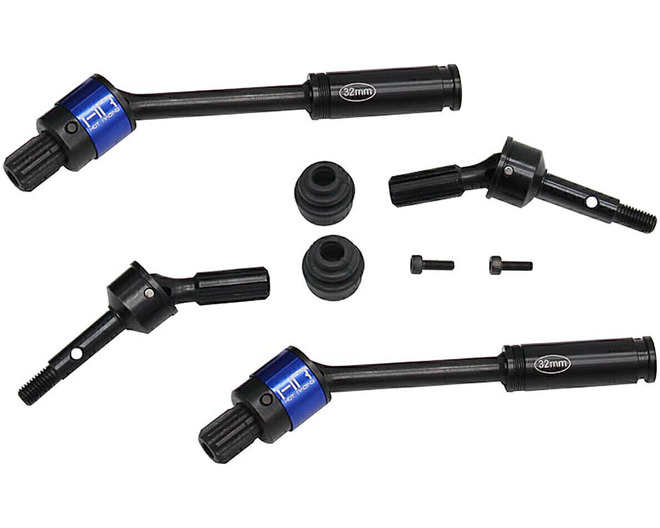

• Two (2) front splined CVD shaft assemblies
• Two (2) M2.5 x 7mm screw cap head

Requirements

• Installation to drive assembly
• Reuses drive pins
• Recommended to maintain CV joint and shaft spline with grease
• Recommended to medium thread lock on screws threading into metal

Specifications

• Collapsed length, overall: 154mm
• Extended length, overall resulting in zero shaft engagement: 164mm
• Collapsed length, wheel pin to outdrive pin: 138mm
• Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 148mm
• Weight/pr: 132g

Comments

• Replaces TRA axle parts: 8551 (drive cup & screw), 8550 (dogbone), 8553 (stub axle), 8554 (CV joint)
• Replacement Hot Racing parts include: Drive hub screw shafts are: M4x2.5x15mm
