126mm Aluminum Double Spring Shock Set (Red) - Hot Racing

About this part

Hot Racing 126mm dual spring threaded shocks, fully assembled. Two colors of spring give a quick first response and a firmer finish.

Features

• Double spring system
• Machined Delrin spring collars
• CNC machined 6061-T6 aluminum shock bodies, spring retainers, threaded spring collars, bottom seal retainers and caps
• Hard anodized bodies for smooth action and corrosion and wear resistance
• Teflon two-hole pistons
• Red anodized spring retainers, threaded spring collars and caps
• 1.1mm black dual springs
• 1.0mm chrome dual springs

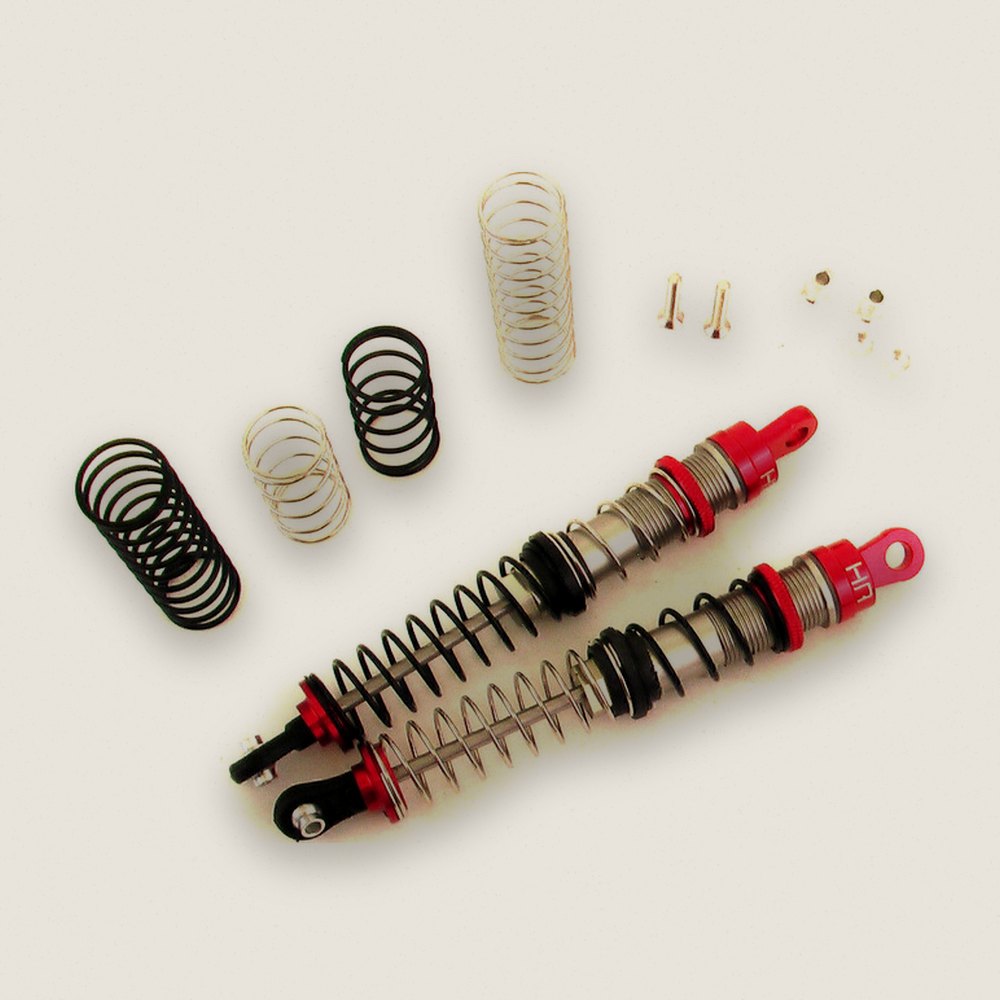

You will receive

• Two (2) fully assembled shocks with black main and tender springs
• Two (2) chrome tender springs
• Two (2) chrome main springs
• Two (2) aluminum upper cap bushings
• Two (2) aluminum countersunk washers
• Two (2) flat head cap screws

Specifications

• Extended mount to mount: 4.96 inch (126mm)
• Compressed mount to mount: 3.30 inch (84mm)
• Body diameter: 1/2 inch (13mm)

Requirements

• Silicone shock oil

Comments

• The double spring setup gives a quick initial response while both springs compress together. Once the tender spring fully closes, only the main spring is working, which gives a firmer ending rate.
• FITS:
• Tamiya 1:18 TLT-1 Rockbuster
• Tamiya Hi-Lift: F350 T

Fits
