90mm Threaded Aluminum Shocks - Hot Racing

About this part

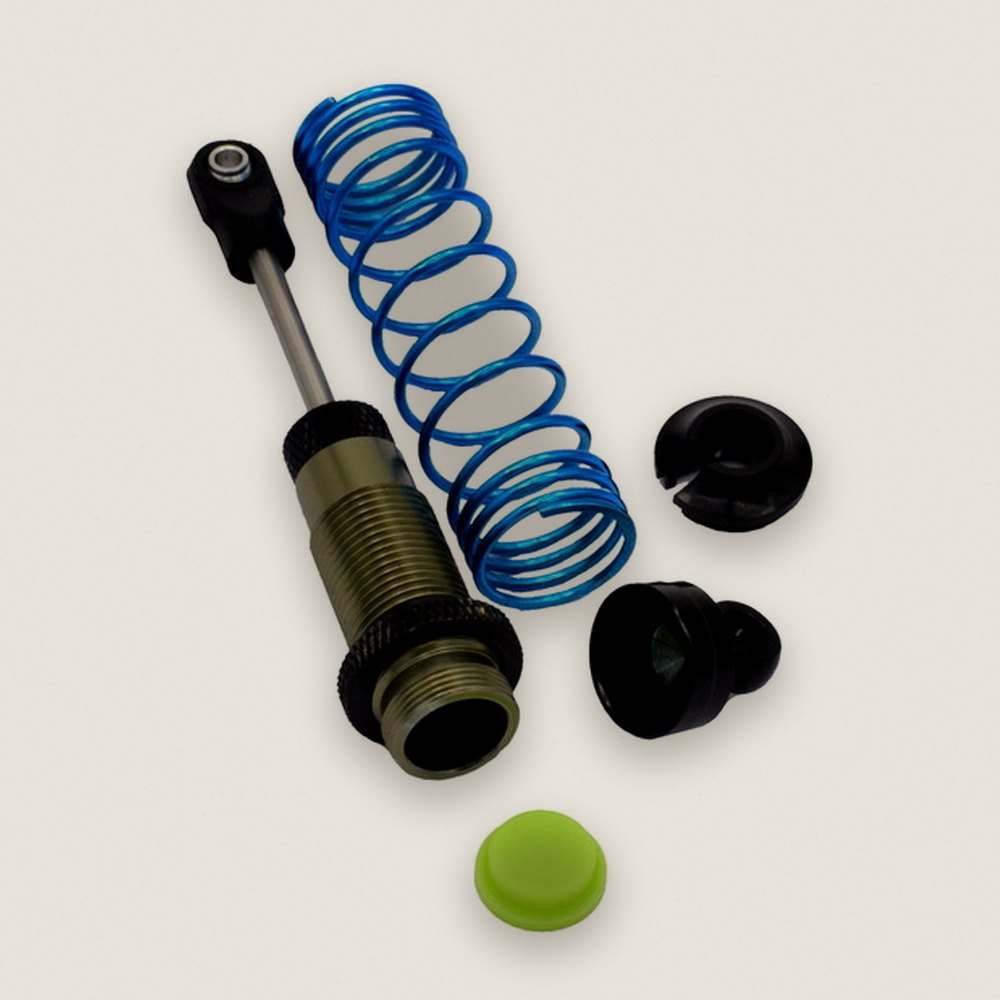

Hot Racing 90mm threaded aluminum shocks for the front of most 1/10 scale 2WD vehicles. They work with the Team Associated SC10 threaded set and most 1/10 off-road trucks.

Features

• Threaded bodies for precise, repeatable ride height and preload
• CNC machined 6061-T6 aluminum bodies, caps, collars and spring retainers
• Bladder style shock for easy, consistent building
• Hard anodized bodies for smooth action and wear resistance
• Two hole 10mm PTFE pistons
• Two spring sets

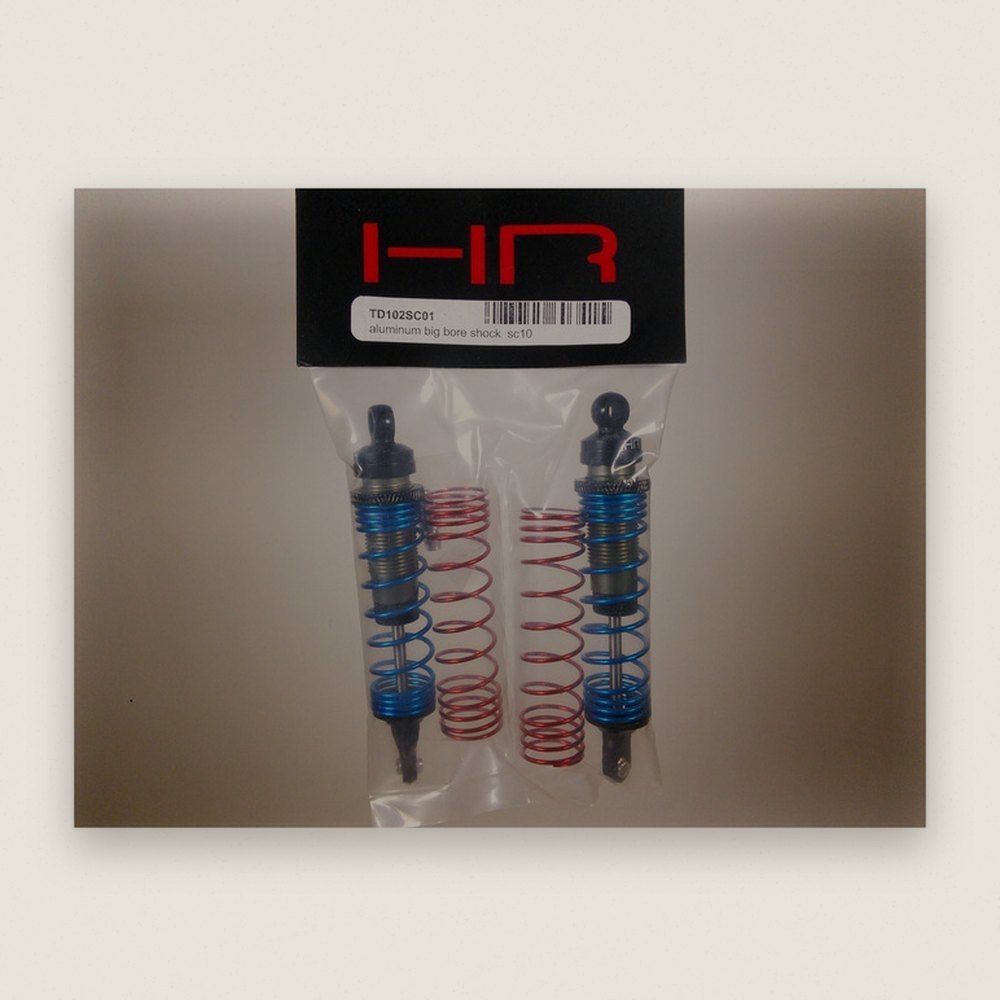

You will receive

• Two (2) assembled shocks
• Two (2) blue springs
• Two (2) red springs
• Two (2) shock mounting flanges

Specifications

• Eye to eye length: 90mm
• Body diameter: 13mm
• Piston diameter: 10mm
• Blue stiff springs: 12 coil, 1.37mm wire, 6.8lb rate
• Red soft springs: 12 coil, 1.09mm wire, 4.2lb rate
• Pivot ball hole diameter: for M3 or 4-40 screws

Requirements

• Silicone shock oil (30wt is a common starting point)
• Installation
• O-ring lube such as Hot Racing SPL10G08 is optional but reduces o-ring stiction

Comments

• Replacement bladders and o-rings: Hot Racing RTD1012B
• FITS:
• Associated RC-10 T3 Truck
• Associated RC-10 T4.x
• Associated RC-10 GT Black Tub
• Associated RC-10GT RTR Blue Chassis
• Associated RC-10GT2
• Associated SC-10
