Black Internal Spring Air Shocks 100mm

About this part

Hot Racing 100mm internal spring air damper shock set for rock crawlers or other custom projects

Features

• CNC machined aluminum shock bodies, black anodized
• CNC machined aluminum upper shock cap with o-ring seal, black anodized
• CNC machined aluminum lower shock cap with shock shaft guide, black anodized
• Precision machined 7mm stainless steel shock shaft for durability
• Double o-ring lower shaft seal
• Air damping
• Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
• All aluminum is anodized for durability, corrosion resistance, and great looks

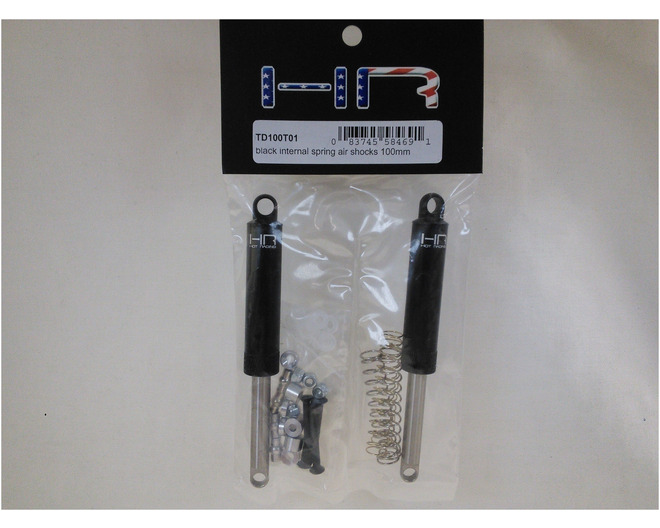

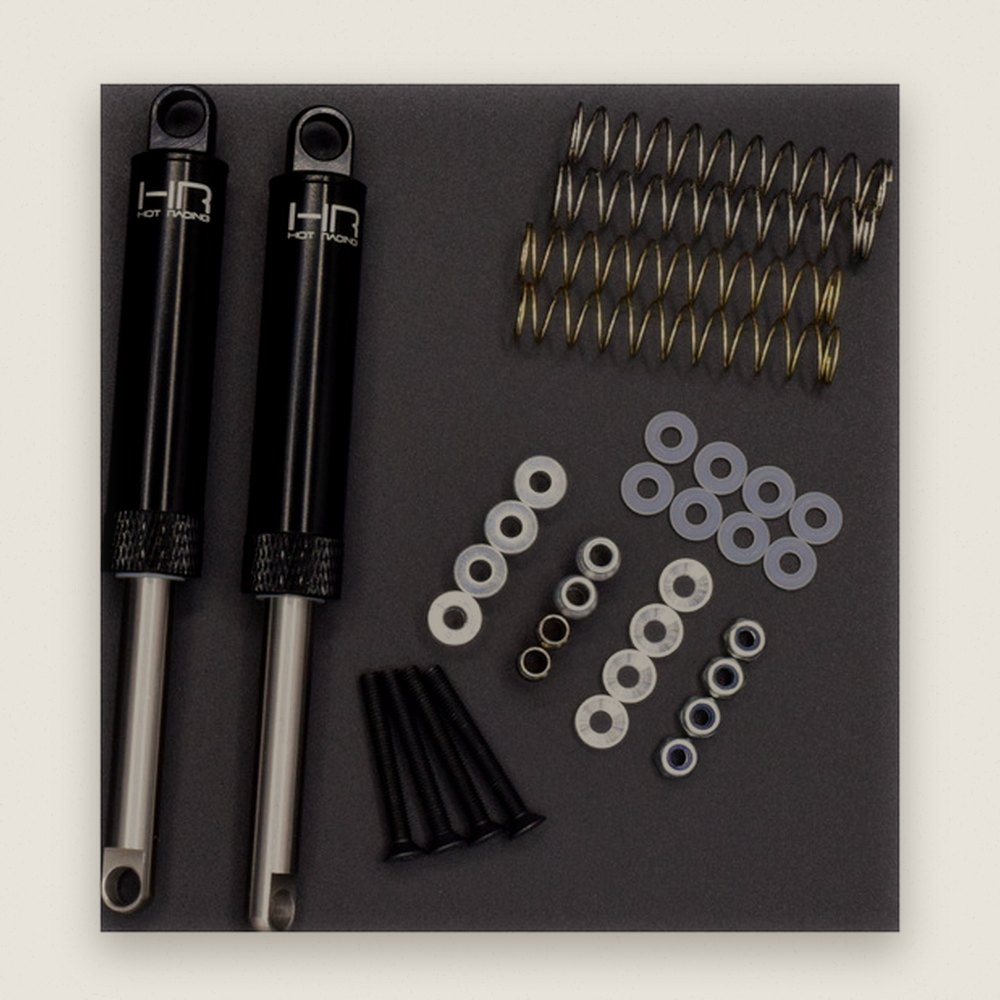

You will receive

• Two (2) assembled shocks
• Two (2) gold (soft) springs
• Two (2) black (medium) springs
• Two (2) silver (stiff) springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness

Specifications

• Extended center to center length: 100mm (3.9 inch)
• Compressed center to center length: 68mm (2.7 inch)
• Overall length:
