Heavy-Duty Oil Dampers (4), 26mm for SCX30 - Hot Racing

About this part

Hot Racing 26mm adjustable HD compression oil damper set for heavy custom SCX30 rock crawler projects. Oil-filled for real damping, with three HD spring rates and a dropper for filling.

Features

• CNC machined T6 aluminum shock bodies
• Precision-machined 1.5mm stainless steel HD shock shaft for durability
• Oil-filled for real damping action

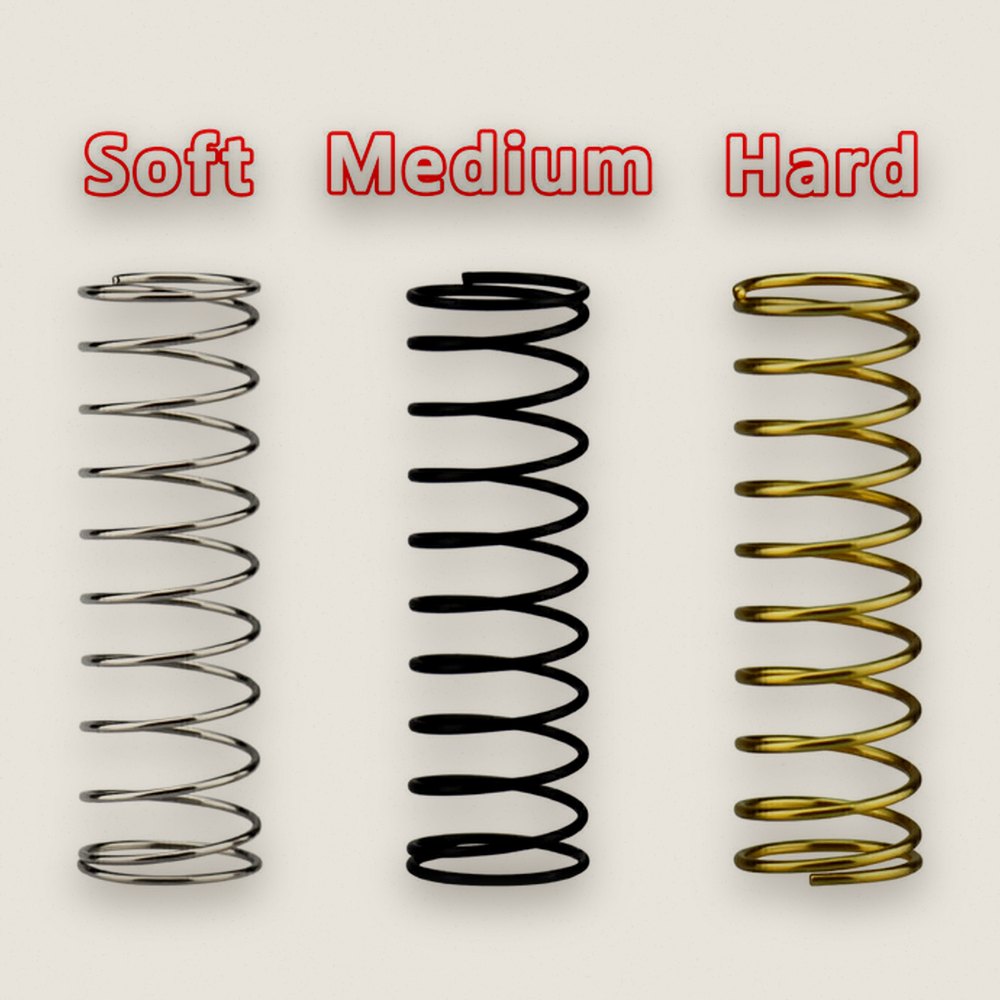

• Three HD spring rates included

You will receive

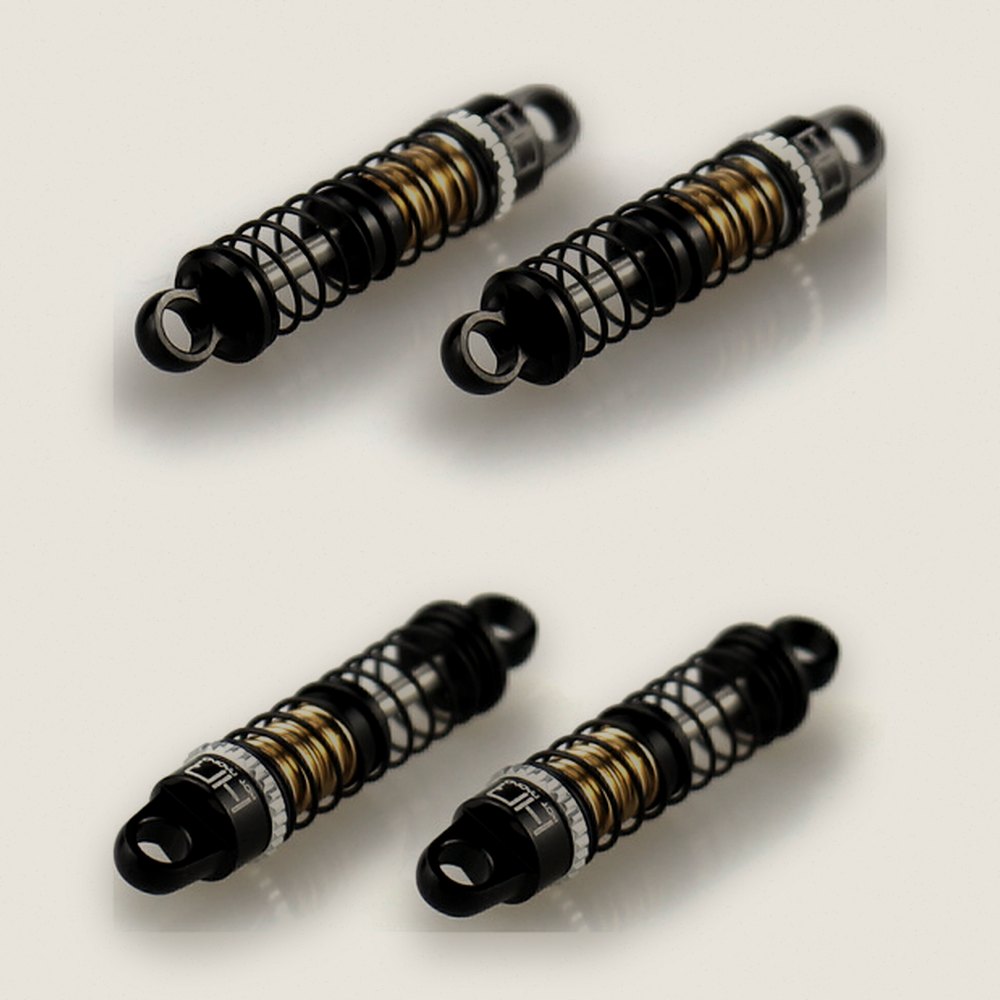

• Four (4) assembled shocks
• Four (4) silver springs (medium, 0.3)
• Four (4) black springs (firm, 0.35)
• Four (4) gold springs (extra firm, 0.4)
• One (1) oil dropper

Requirements

• Installation on vehicle required
• Silicone shock oil of your choice

Specifications

• Extended center-to-center length: 26mm (inch)
• Compressed center-to-center length: 23mm (inch)
• Overall length: 30mm (inch)
• Body diameter: 3.85mm (inch)
• Shaft diameter: 1.5mm (inch)

Comments

• A mini RC emulsion shock depends on a steady mix of oil and air for smooth damping. Fill with quality silicone oil, then loosen the cap to push out the extra oil while the shaft is half compressed.
• Repeatability is the key. Use the half-shaft rule: hold the shaft at its midpoint while you tighten the cap, so there is enough air volume to make up for the shaft en

Fits
