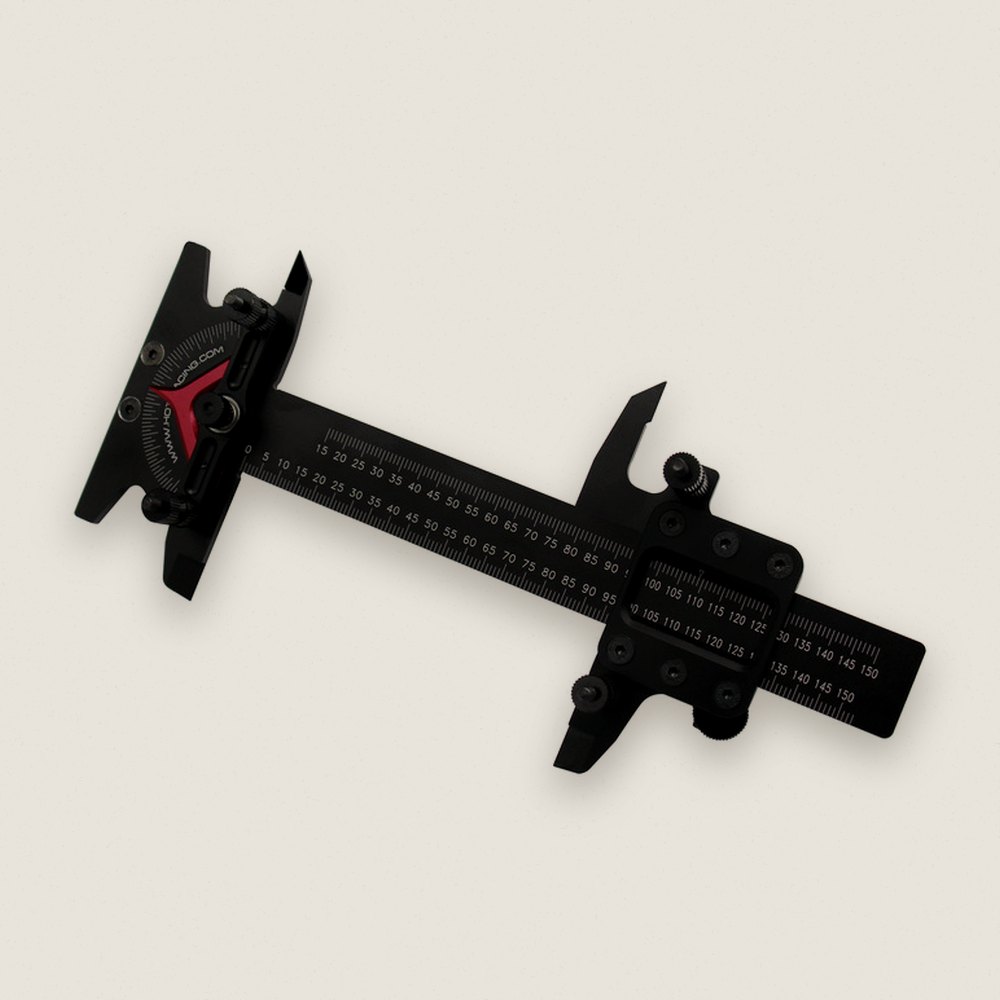

The Shock Tool and Spring Gauge

About this part

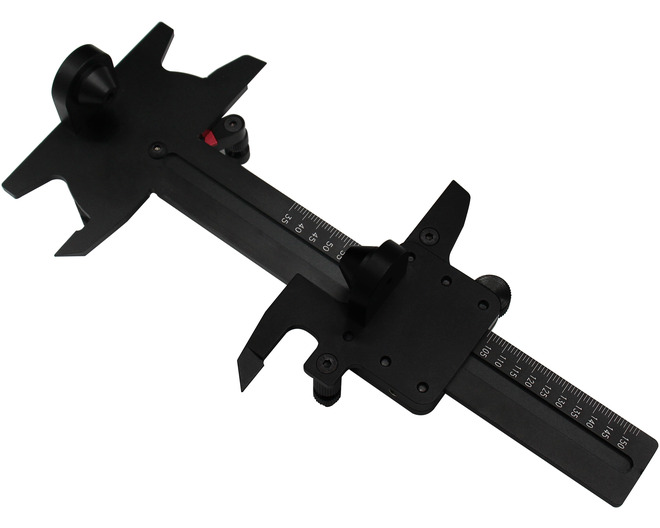

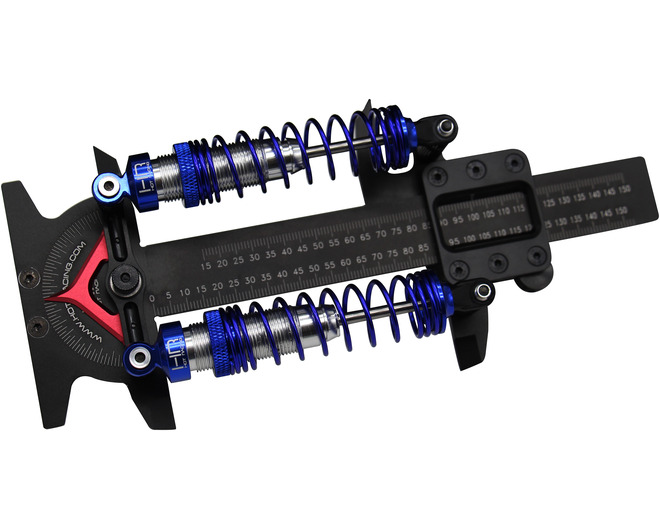

This shock tool is CNC machined from 6061 aluminum with a laser-etched measuring scale on the face. The pivoting gauge on the bottom of the tool is ball bearing supported for maximum precision. Simply mount the shock on and move the slider bar to the extended position, then slowly push it in to the compressed position. The pointer will graphically displace any variances and you will be able to address them as necessary.

Features

• Hard-anodized aluminum Brass pivot gauge for maximum precision Laser-etched measuring scale For all racers: 1/8 to 1/10-scale

Requirements

• For spring rate Kg/cm A appropriate Kg scale for the Spring you like to test Remove locking grub screw befor use.

Comments

• You can test spring from Inner ID 8mm to 19mm

Fits
