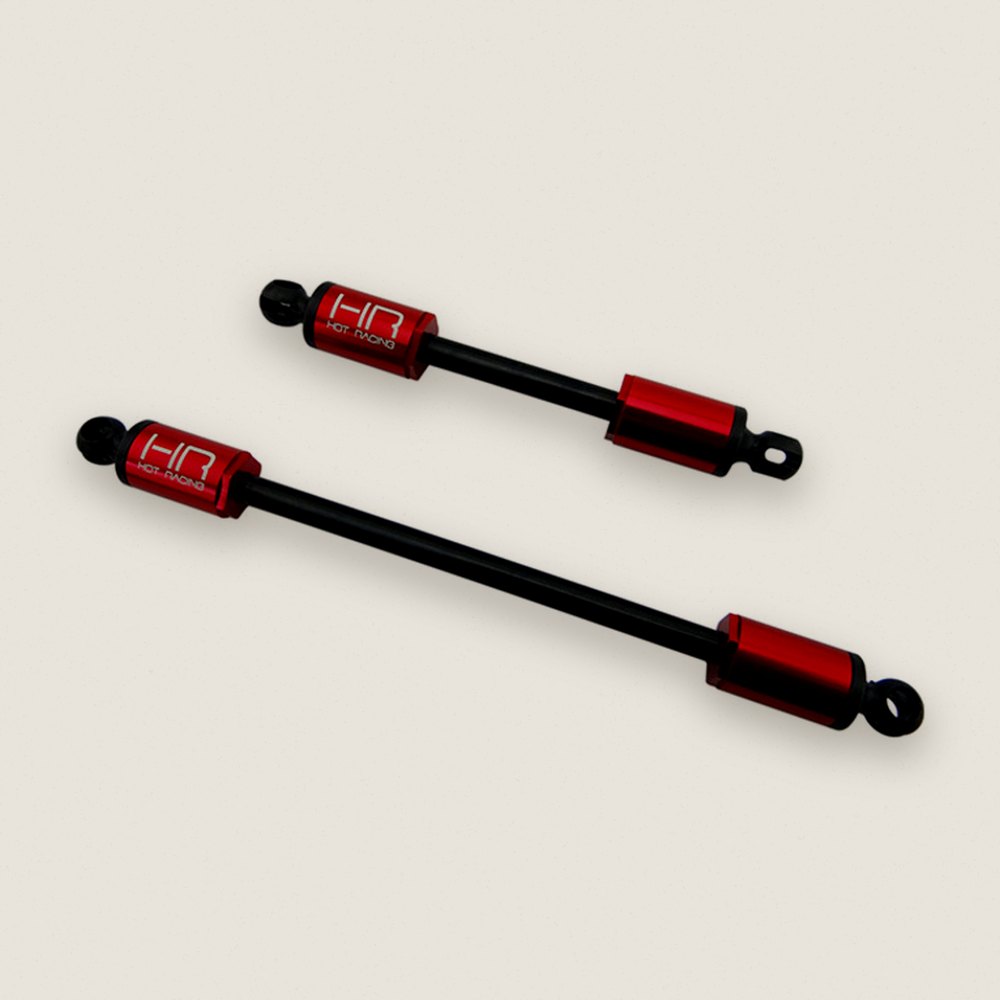

Heavy Duty Steel Drive Shafts with U-Joints Scx Ii Kit

About this part

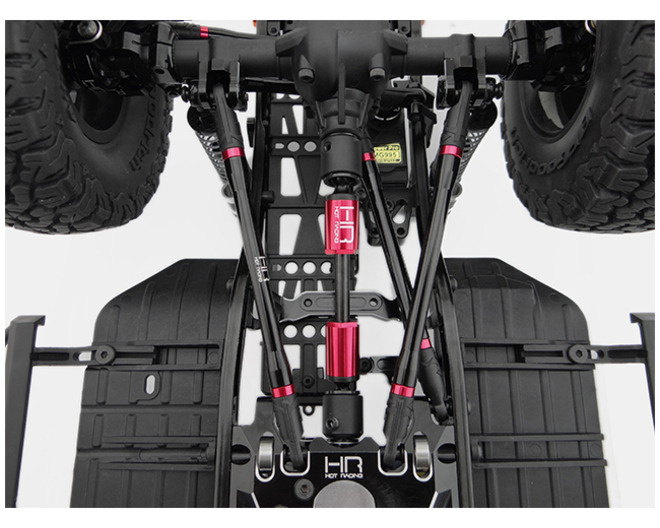

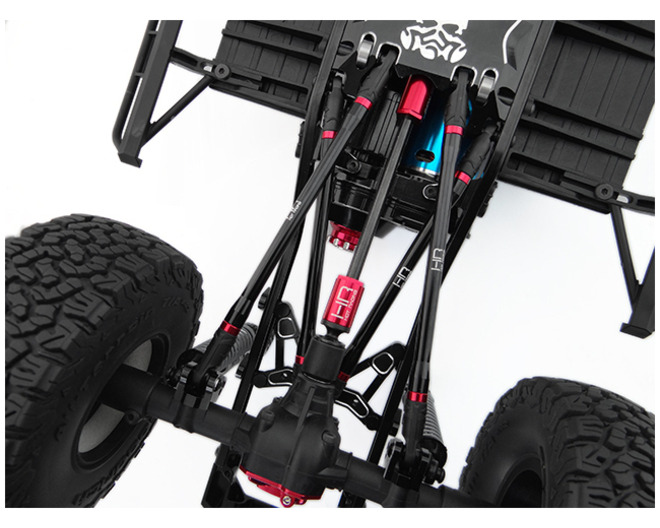

Hot Racing heavy duty steel front and rear telescoping driveshafts for the Axial SCX10 II Kit vehicles (not RTR)

Features

• Heavy duty CNC machined hardened carbon steel construction
• 6061 aluminum screw-on sleeves to capture steel telescoping pins
• Replaces factory plastic front and rear drive shafts

You will receive

• One (1) front steel drive shaft
• One (1) rear steel drive shaft

Requirements

• SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
• Axial AXA0286 M4x2.5x13mm screw shafts are required
• Axial AX31148 W88 V2 Joint 10X15mm
• Axial AX31028 2x11mm pin
• Axial AX31114 (1) Part of W88 V2 driveshaft
• Recommended to maintain telescoping assembly with grease

Specifications

• Short shaft compressed length: 65.5mm joint-joint - Short shaft extended length: 84.5mm joint-joint - Short shaft travel: ~19mm - Long shaft compressed length: 111mm joint-joint - Long shaft extended length: 130mm joint-joint - Long shaft travel: ~19mm - Outside diameter: 11.5mm - Shaft diameter: 5mm

Comments

• Will NOT work with vehicles equipped with the RTR transmission
