Rate Spring Set, FS for TLR 22 (8) - Hot Racing

About this part

Factory spec shock springs for the TLR 22, 22T and 22SC, built from spring steel and cold-coiled. These are the same factory spec springs Team Losi runs. Four rates in the set: rear 1.8 and 2.3, front 3.5 and 4.1. Color-coded, so it's easy to sort.

Features

• Cold-coiled spring steel construction
• Factory spec for TLR 22 series

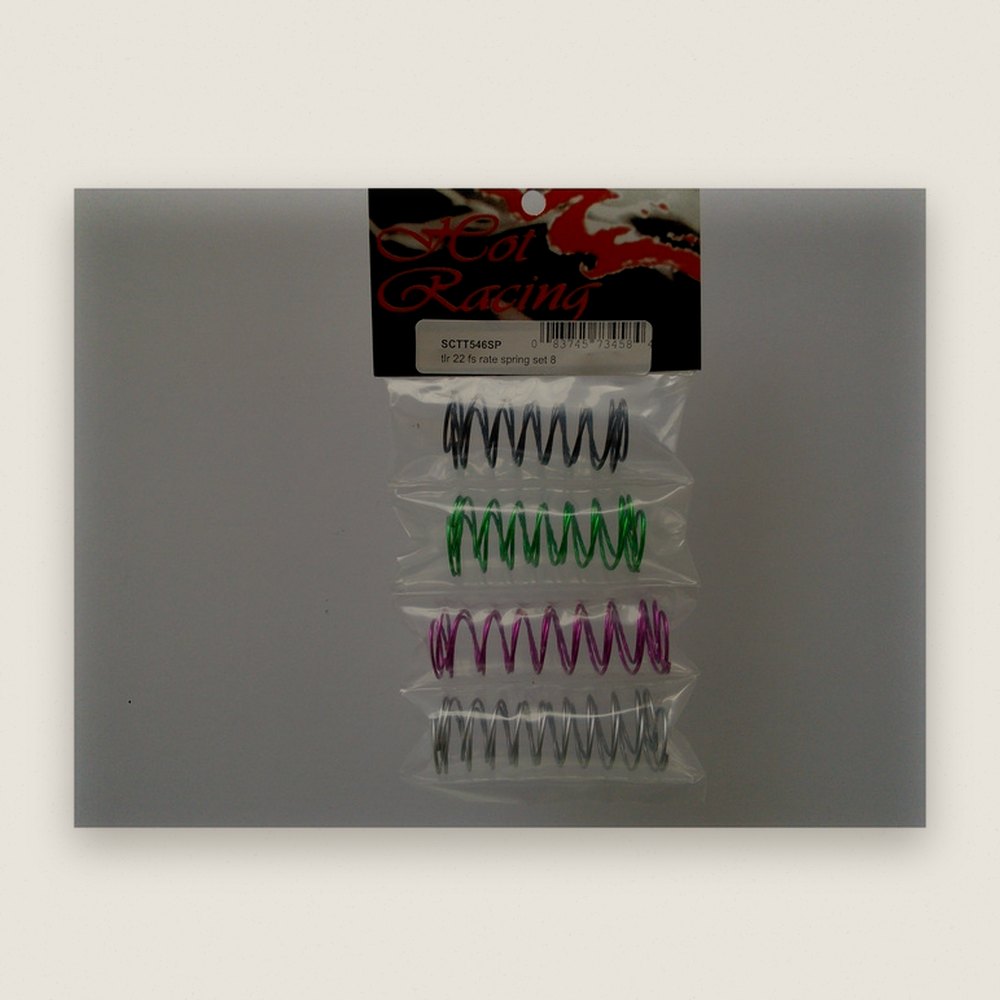

You will receive

• Two rear 1.8 rate springs (silver)
• Two rear 2.3 rate springs (pink)
• Two front 3.5 rate springs (green), 22T and 22SC
• Two front 4.1 rate springs (black), 22T and 22SC

Specifications

• 4.1 rate (black): wire 1.2mm, length 48mm, 8 turns
• 3.5 rate (green): wire 1.2mm, length 53mm, 9 turns
• 2.3 rate (pink): wire 1.1mm, length 64.5mm, 9 turns
• 1.8 rate (silver): wire 1.1mm, length 64.5mm, 11 turns

Requirements

• Installation on vehicle

Notes

• Matches the Team Losi factory springs: TLR5163 rear 1.8 rate (white), TLR5168 rear 2.3 rate (pink), TLR5182 front 3.5 rate (green), TLR5184 front 4.1 rate (black).
