Center Driveshaft, Steel 95-130mm (Short) - Hot Racing

About this part

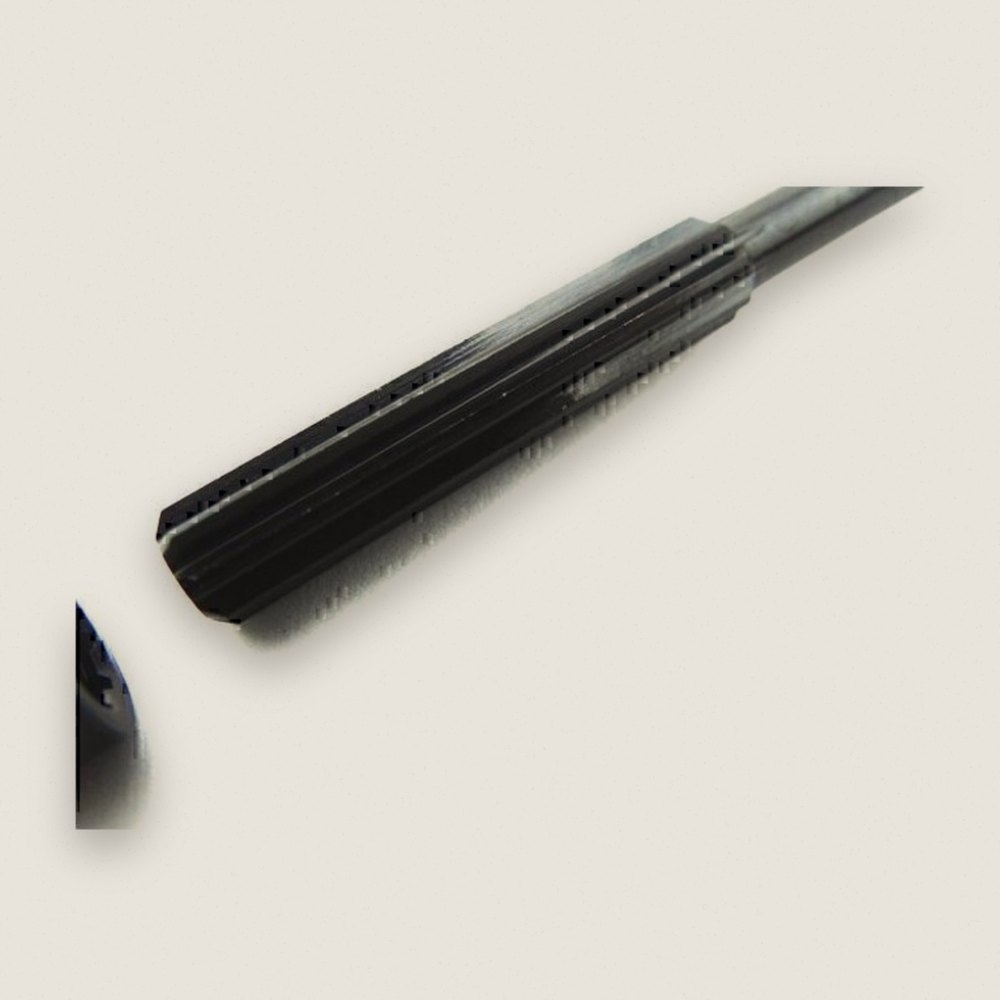

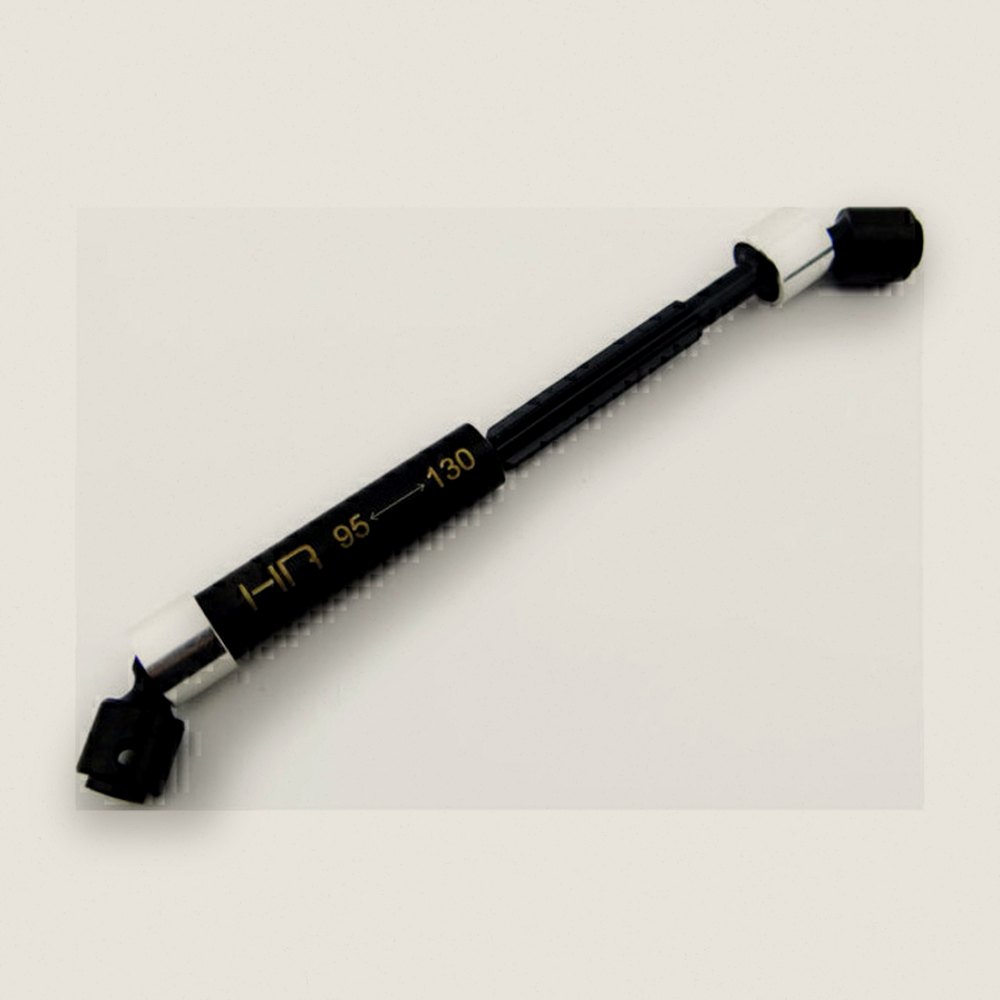

Short version of the heavy duty splined star center driveshaft, running 95-130mm. Hot Racing built this one for the Tamiya CR01 front, the stock AX10, the SCX10 front, or a custom rig. Same hardened carbon steel and pin capture rings as the medium, just shorter and tuned for tighter builds.

Features

• Heavy duty CNC machined hardened carbon steel
• Aluminum pin capture rings with rubber o-rings to stop movement
• No CV pin setscrew needed
• Fits 5mm output shafts
• Black finished steel

You will receive

• One center CVD drive shaft assembly

Requirements

• Four M3 setscrews or two screw pins (such as Axial AXA0175) to attach to transmission and differentials
• Grease the CV joint and spline
• Removable locking adhesive on screws threading into metal

Specifications

• Collapsed length end to end: 93mm
• Operating length: 95-130mm end to end (85-120mm hub pin to hub pin)
• Travel: 35mm
• Spline engagement at 130mm: 10mm
• M3 threaded holes for vehicle attachment
• REPLACEMENT PARTS:
• RCV11DH (drive hub), RCV11P

Fits
