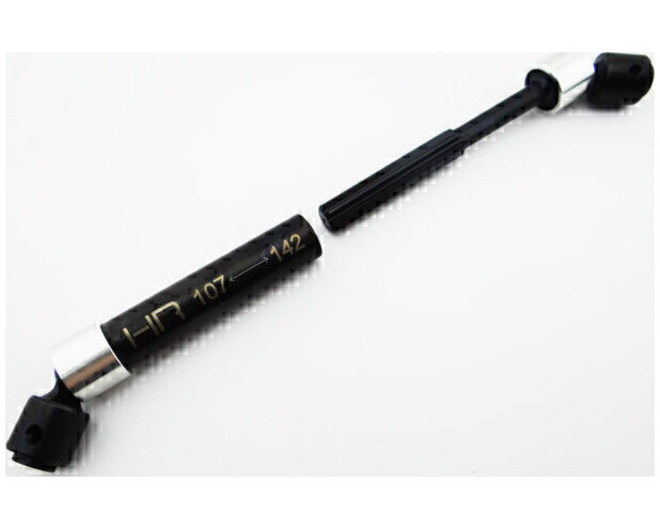

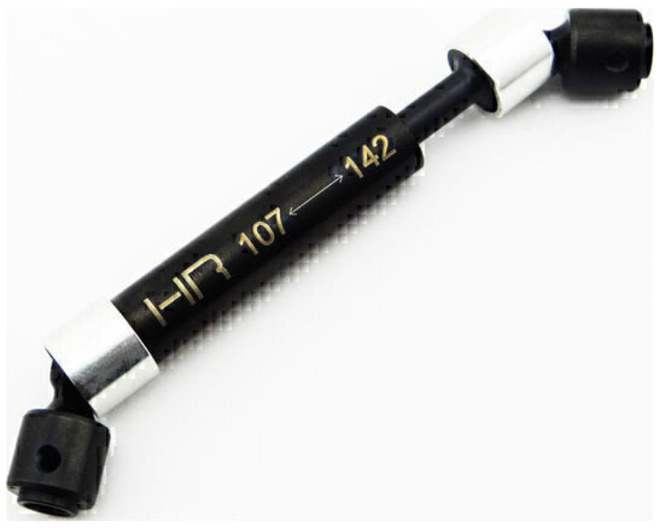

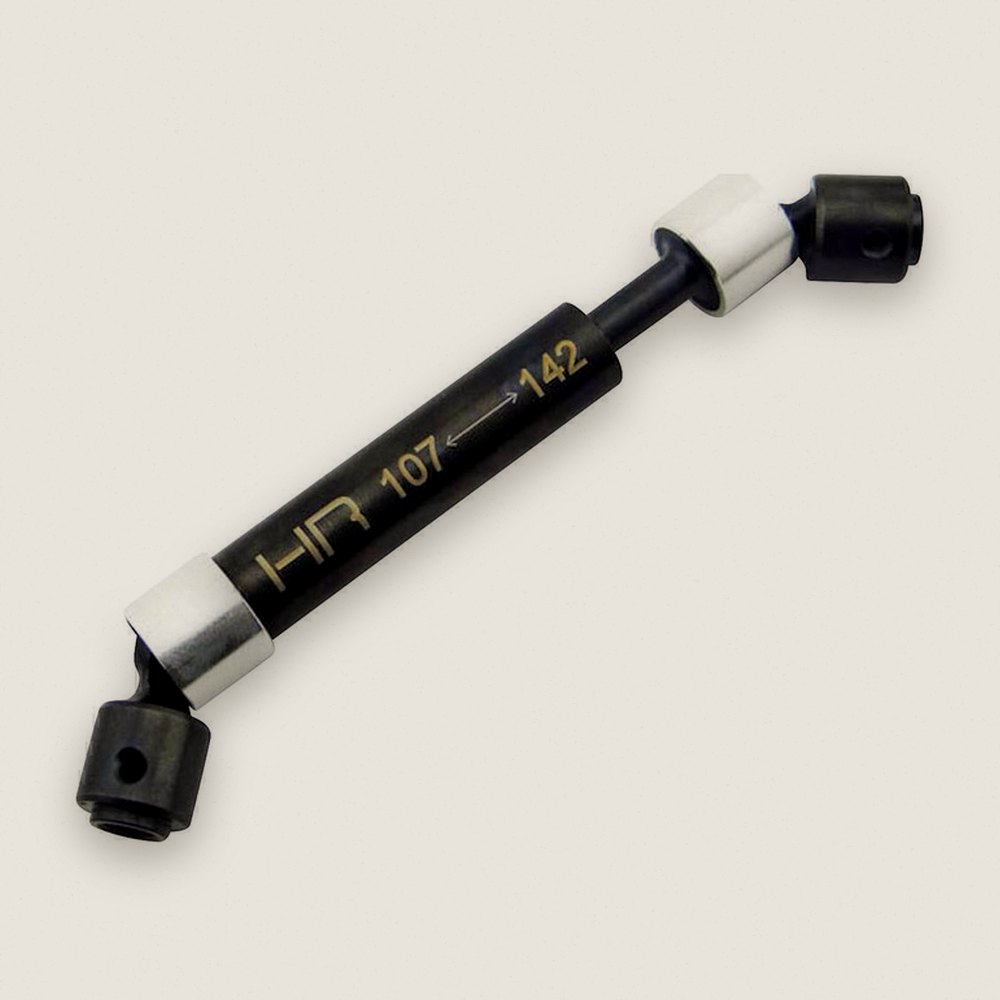

Steel Center Driveshaft 107-142mm (Medium)

About this part

Hot Racing optional upgrade heavy duty splined star drive shaft for the Axial AX10, Axial RR10 Front, Axial SCX10, Axial Wraith, Tamiya CC01, Tamiya CR01 (front), Red Cat Gen8 or a custom vehicle. Please see the specifications below to verify fitment for your vehicle.

Features

• Heavy duty CNC machined hardened carbon steel construction
• Aluminum pin capture rings with rubber o-rings to prevent movement
• Design eliminated CV pin setscrew
• Compatible with 5mm output shafts
• Steel is black finished

You will receive

• One (1) center CVD drive shaft assembly

Requirements

• 4X M3 setscrews or 2X screw pins (e. g. Axial AXA0175) to attach to transmission and differentials
• Recommended to maintain CV joint and shaft spline with grease
• Recommended to use a removable-type locking adhesive on screws threading into metal

Specifications

• Collapsed length end-to-end: 104mm
• Recommended operating length: 107-142mm end-to-end (97-132mm hub pin to hub pin)
• Recommended travel: 35mm
• Spline engagement at 142mm: 7mm
• Compatible with 5mm output shafts
• M3 threaded holes for vehicle attachment

Comments

• Replacement parts are Hot Racing: RCV11MF (slider shaft), RCV11DH (drive hub), RCV11P (CV rebuild kit), RCV11R (
