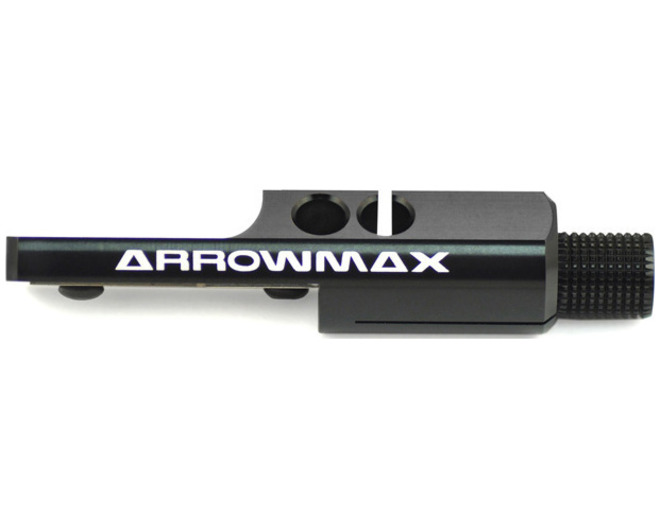

Body Post Trimmer, Black - Arrowmax

About this part

Preparation - Fit your body shell to your car and make sure that its placed in the correct height - Remove the body and put it aside, you wont need it for the post trimming procedure itself! Body post trimming step by step Step 1 - Place the Body Post Trimmer on your cars first body post - You have two options concerning the length, 6 mm and 10 mm, depending on the orientation of the tool Step 2 - Turn the knurled screw counter-clockwise just until you can take it out - Insert your cutter knife / scalpel - Turn the knurled screw clockwise until the scalpel runs on block at the end of the slot Step 3 - Now you can remove the cut top of the body post including the Body Post Trimmer - Congratulation! You have trimmed your first body post! Repeat the procedure with the other body posts on your car! The final cut - Place your Body Post Trimmer with the stud hole on the body post - Turn around the trimmer about 360 under light pressure so that you will cut a perfect 1 mm chamfer IMPORTANT

Note

• If chamfering doesnt work as it should, try to change the gap of your blade which should be 0.2 0.5 mm to the edge of the aluminium body.
• Your results are
• Smooth looking, chamfered body posts with

Fits
