Steel CV Drive, SSD for Revo 4WD - Hot Racing

About this part

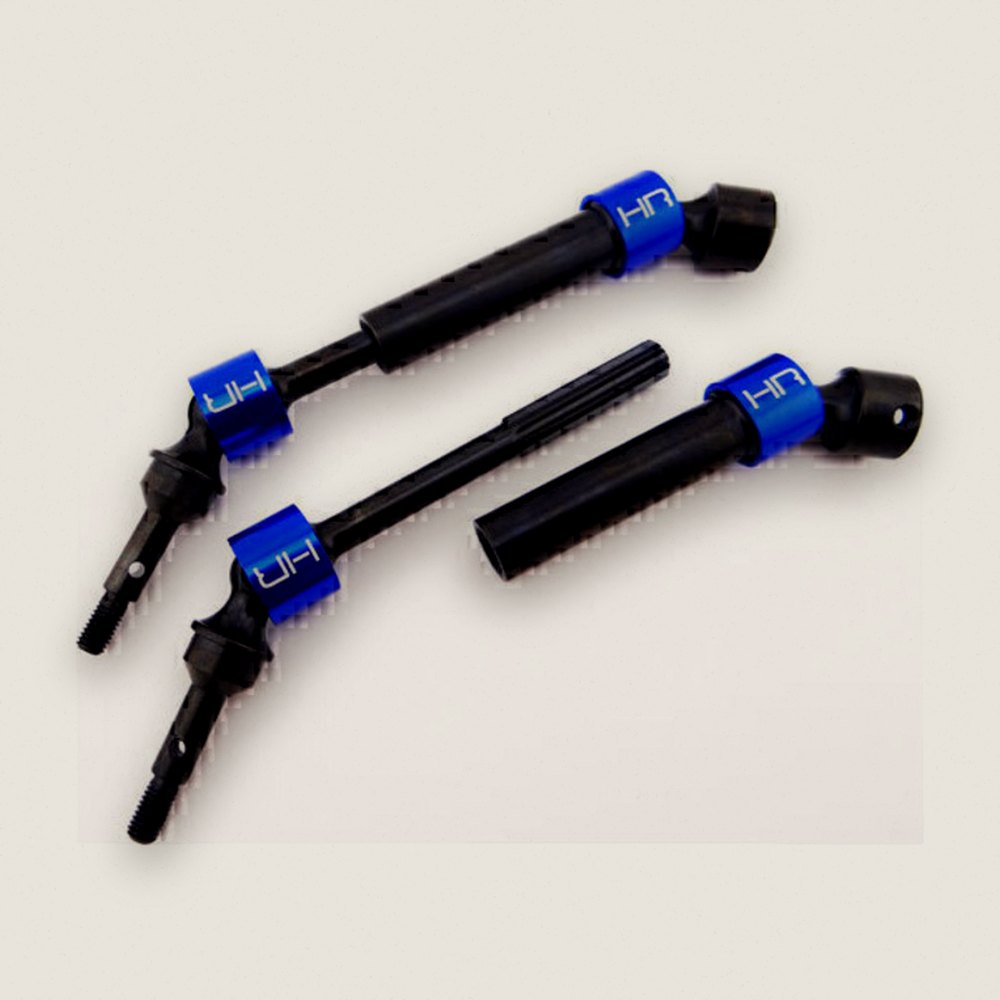

Heavy duty splined star drive CVD axle kit from Hot Racing, for the front or rear of the new TRA 1/10 E-Revo, E-Maxx, Revo 3.3, T-Maxx 3.3 and Summit (56076-4). Check that your truck runs the TRA 5451X shafts before you order, because that's what these fit. Heavy duty CNC machined #45 hardened carbon steel, black finished. Blue anodized pin capture rings with rubber o-rings hold everything in place, and the design drops the CV pin setscrew.

Features

• Heavy duty CNC machined #45 hardened carbon steel
• Replaces factory plastic front or rear drive axles
• Blue anodized aluminum pin capture rings with rubber o-rings
• No CV pin setscrew needed
• Black finished steel

You will receive

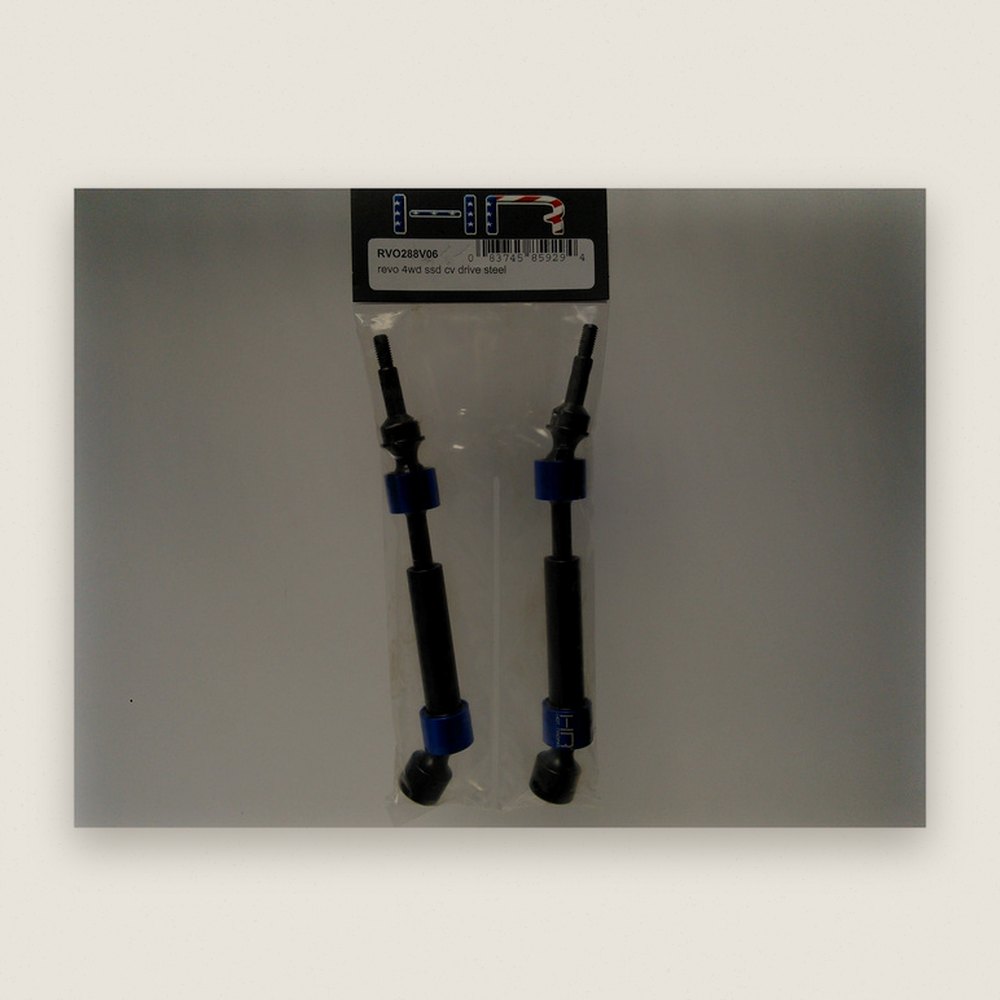

• Two (2) splined CVD shaft assemblies

Requirements

• Install at rear drive assembly
• Grease the CV joint and shaft spline
• Removable-type locking adhesive on screws going into metal

Specifications

• Approximate collapsed length: 151mm (5.9 in)
• Approximate full extension (zero shaft engagement): 199mm (7.8 in)
• Pins: 15x2.5mm
• FITS:
• Traxxas E-Maxx 3908 Brushless
• Traxxas E-Revo 5603, 5605, 5608
• Traxxas Revo 3.3 5308 (2008 models)
• Traxxas Revo 3.3 5309
• Traxxas Summit
• Traxxas T-Maxx 3.3 4907

Comments

• Replaces factory

Fits

Replaces stock part
