Oil Shocks, Aluminum Big Bore for Ascent 32 - Hot Racing

About this part

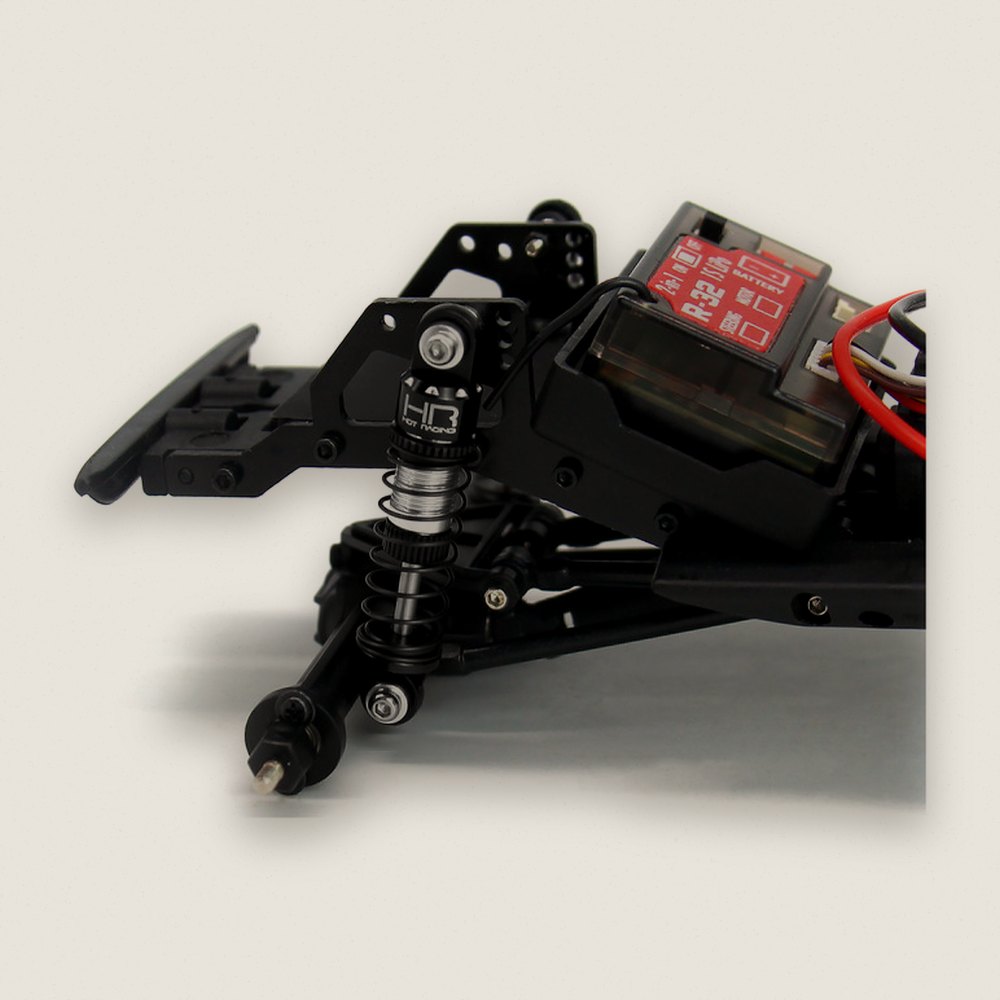

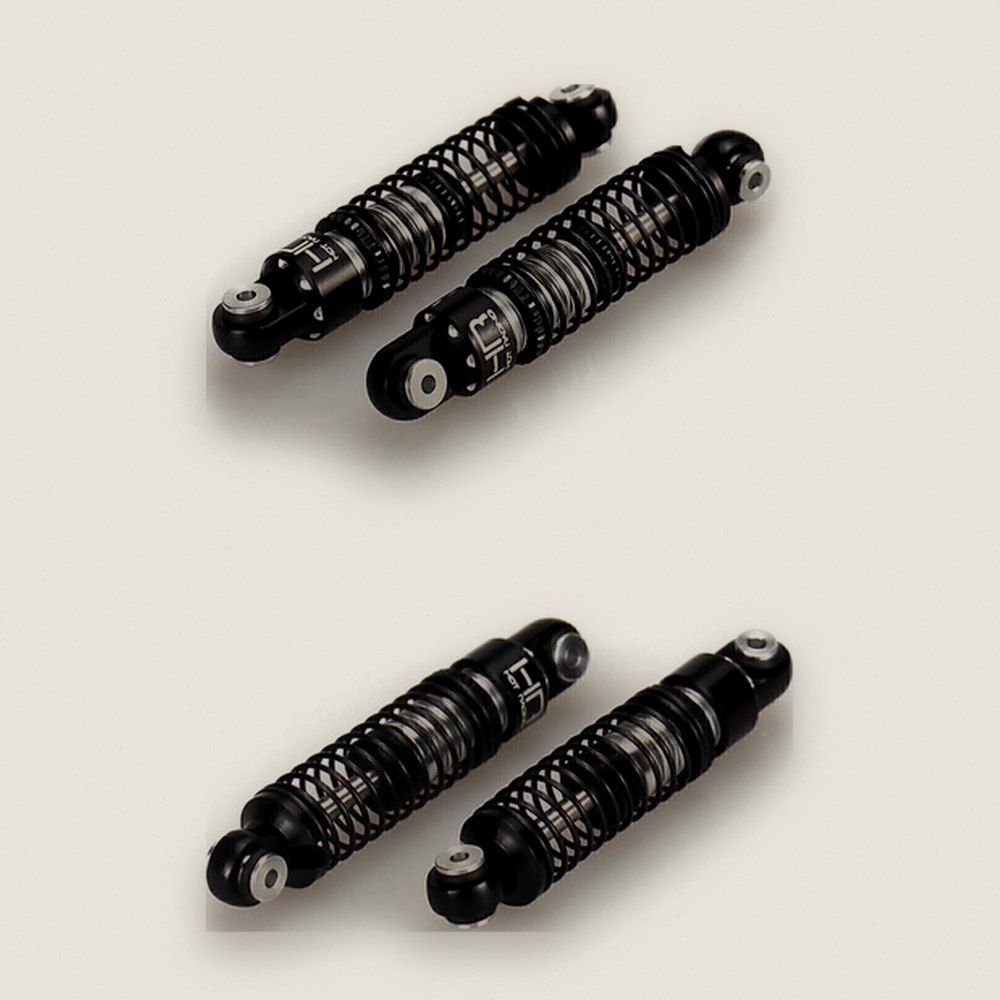

Threaded aluminum big bore oil shocks for the Redcat Ascent 32 and other mini or micro crawlers. Rebuildable bladder seals keep the rebound dampening consistent.

Features

• Bladder seals for consistent rebound dampening.
• CNC machined aluminum construction.
• Threaded bodies for quick preload adjustment.
• IN THE BOX:
• Four (4) shocks
• Eight (8) springs
• Eight (8) M1.4x8 cap head screws

Requirements

• A 0.05in, 1.3mm or 1.4mm hex wrench for the screws.

Specifications

• Extended eye-to-eye length: ~36mm
• Compressed eye-to-eye length: ~27.5mm
• Stroke: 8.5mm

Notes

• Replaces the Redcat Ascent 32 shock set RER41715.
• Replacement part.

Fits
