Metal Cv Splined Drive ShafT 1:10 Maxx

About this part

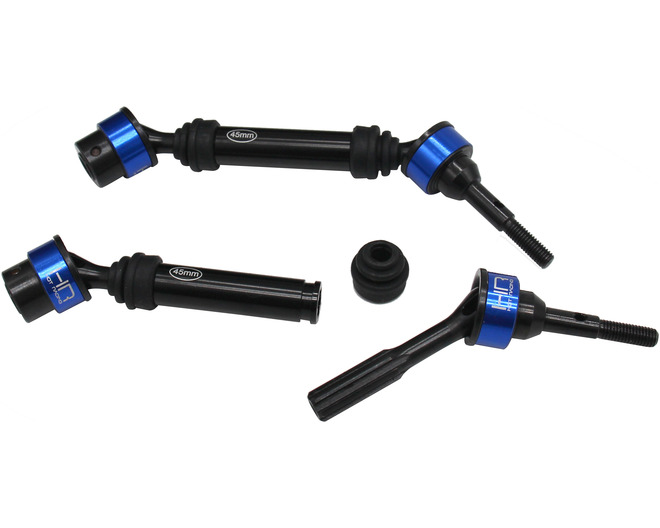

Hot Racing heavy duty splined star drive CVD axle kit for the front or rear of the TRA 1/10th scale Maxx

Features

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust cover boots
• Replaces factory front or rear driveshaft axles

You will receive

• Two (2) splined axle assemblies

Requirements

• Installation to the drive assembly
• Need to reuse the stock Drive pin and set screw Pin
• Recommended to maintain CV joint and shaft spline with grease
• Recommended to medium thread lock on screws threading into metal

Specifications

• Collapsed length, overall: 140 mm
• Extended length, overall resulting in zero shaft engagement: 156mm
• Collapsed length, wheel pin to outdrive pin: 118mm
• Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 132mm

Comments

• For USE with TRA WIDE Maxx Kit.
• You will need to Replace the center drive Tube to 65mm (SLD65T) or order MXX288RCL06 TRA Wide Maxx Kit
• TRA8995

Fits
