MXRT28806

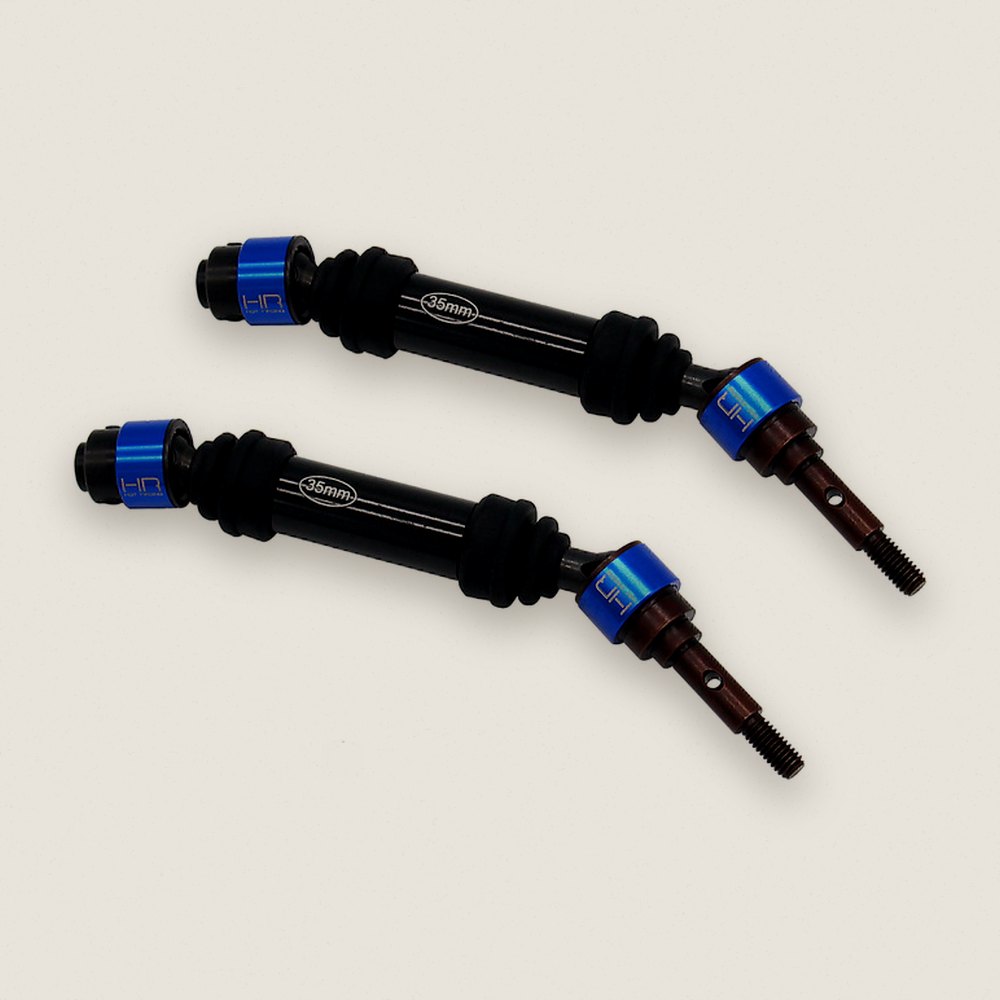

Drive Shaft, Metal CV Splined, for Mini-XRT - Hot Racing

Hot Racing Drive-train: shafts and axles
$62.88
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

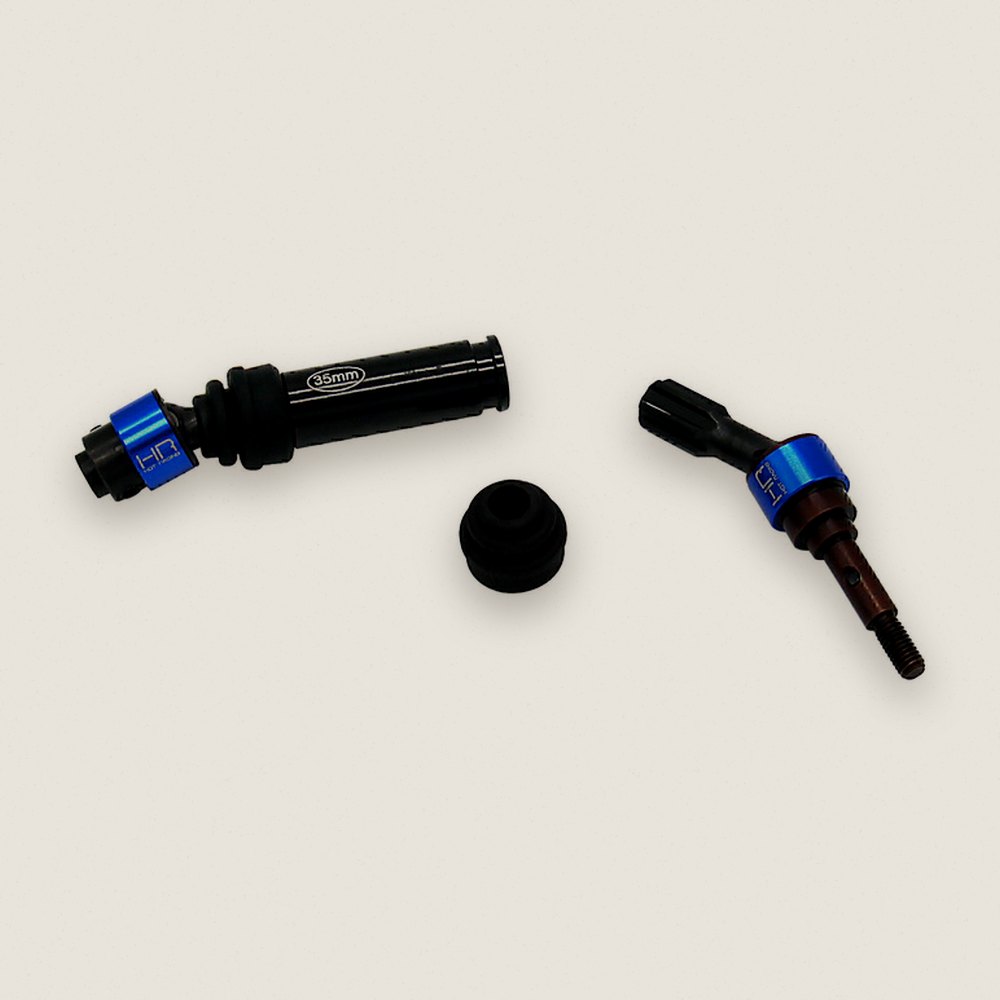

Heavy-duty splined star drive CVD axles for the front or rear of Mini XRT and Mini Maxx builds. They replace the factory driveshaft axles and come with pin capture rings and rubber dust boots.

Features

  • CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
  • CNC machined aluminum slider tube
  • Blue anodized aluminum pin capture rings to prevent movement
  • Rubber dust cover boots

You will receive

  • Two splined axle assemblies

Requirements

  • Installation to the drive assembly
  • Reuse the stock drive pin and set screw
  • Grease recommended for CV joint and shaft spline
  • Medium thread lock recommended on screws threading into metal

Specifications

  • Collapsed length, wheel pin to outdrive pin: 89mm
  • Extended length, wheel pin to outdrive pin (zero shaft engagement): 98mm
  • Pinned set screw: M4x2.5x11mm

Comments

  • Replaces TRA10798 Mini-TRX front or rear
  • Mini Maxx needs the full set of MMX54W01, MMX55W01, MMX56W01, MMX57W01 and MMX288W06

Replaces stock part
