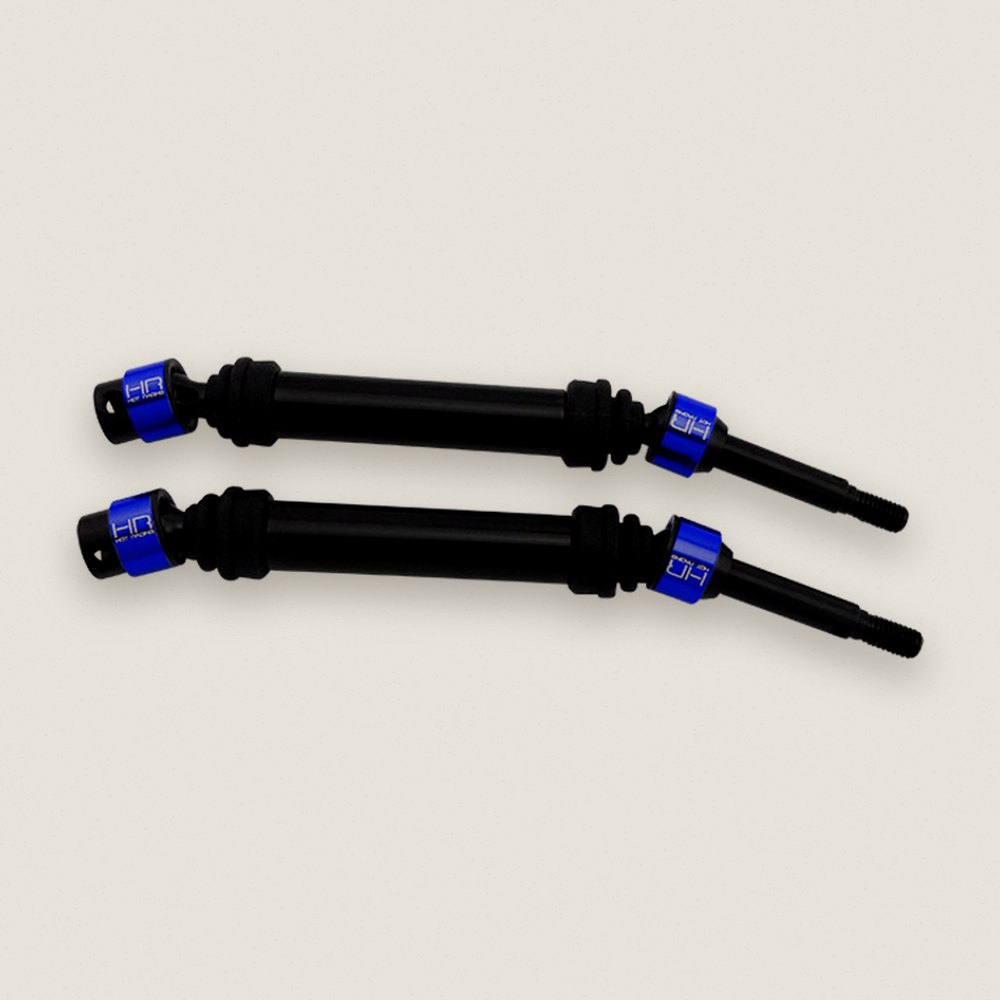

Front CV Splined Axle Drive Shafts for Losi Rock Rey - Hot Racing

About this part

Hot Racing heavy duty front splined CVD axle kit for the Losi Rock Rey. Stronger drive shafts for the front end, and they take the abuse better than the factory plastic.

Features

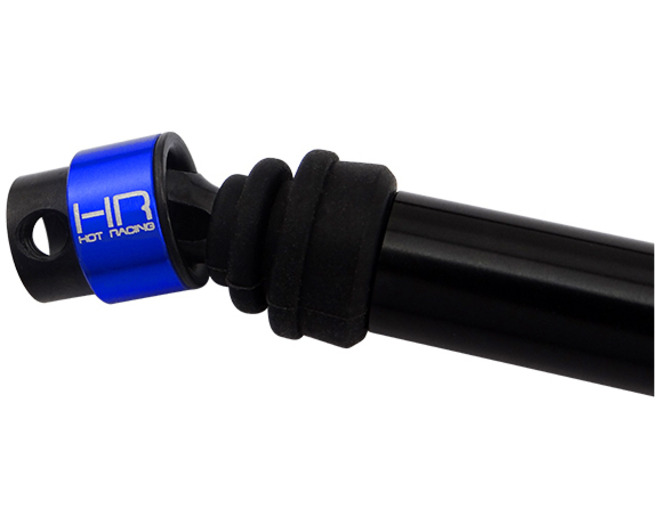

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust cover boots
• Replaces the factory plastic front drive axles

You will receive

• Two (2) front splined CVD shaft assemblies

Requirements

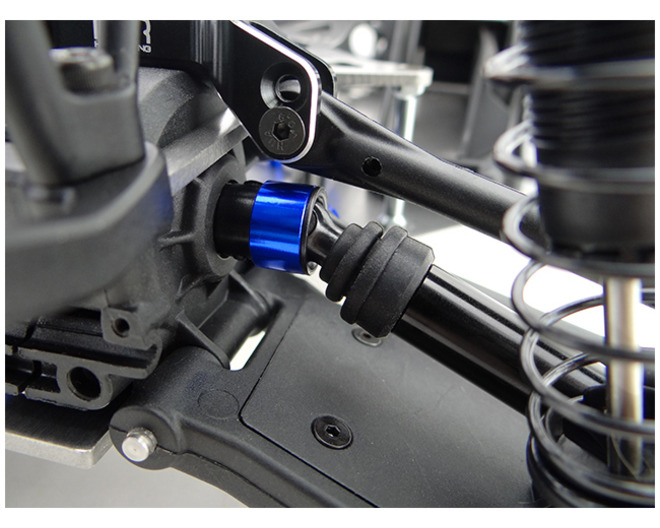

• Installation to the drive assembly
• Stock drive pins VTA246001 must be used
• Grease the CV joint and shaft spline to keep them healthy
• Medium thread lock recommended on screws threading into metal

Specifications

• Collapsed length, overall: 123mm
• Extended length, overall, zero shaft engagement: 156mm
• Collapsed length, wheel pin to outdrive pin: 107mm
• Extended length, wheel pin to outdrive pin, zero shaft engagement: 140mm

Comments

• Replaces the stock Losi axle, LOS232020
• Replacement parts from Hot Racing: SLD646LRR (stub axle), SLD496LRR (input coupler), SLD40LRR (slider shaft)
• FITS:
• Losi 1:10 Rock Rey 4WD Rock Racer

Fits

Replaces stock part
