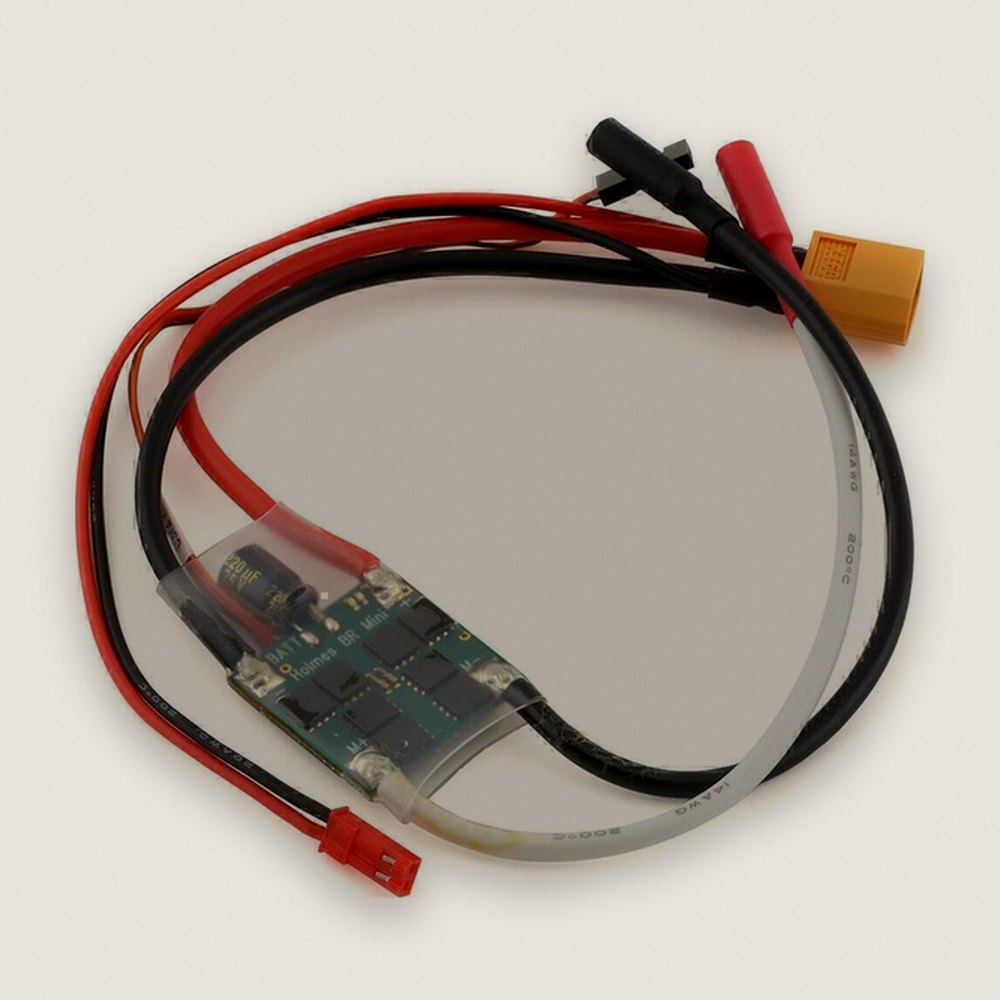

Mini Brushed ESC, Torquemaster - Holmes Hobbies

About this part

The TorqueMaster BR Mini is a high performance competition brushed ESC. It is a miniaturized BR-XL, so it fits weight conscious comp crawlers, scale builds, robotics, servo motor and winch use. It was designed from scratch for low speed control and high torque density. FITS: HPI Electric RS4, HPI Electric Pro 2, HPI Electric MT (electric), HPI Electric Pro 4, HPI Electric Mini (electric), HPI Electric Sport Out of the box you get Auto LiPo LVC, full drag brake, instant reverse and 100% reverse throttle. It comes with an XT60 battery connector and 4mm motor bullet connectors. A JST lead runs from the back of the XT60 for direct power.

Note

• This is not a stock replacement ESC for a specific vehicle, so find your vehicle's system limits. Recommended for competitive RC rock crawling, off-road truck use, and robotic use at 30A or less per channel.

Features

• 1 year manufacturer warranty
• 6v to 25v input, external BEC suggested for all installs
• Brushed only
• Stick and Castle Link programming compatible
• Reverse and brake adjustment
• Throttle and brake curve adjustment
• Regenerative drag brake
• Active hold brake

Fits
