XPTD90FW01Black 90mm Aluminum Adjustable Piggyback Shocks (2)
X-Spede Shock absorber
$34.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

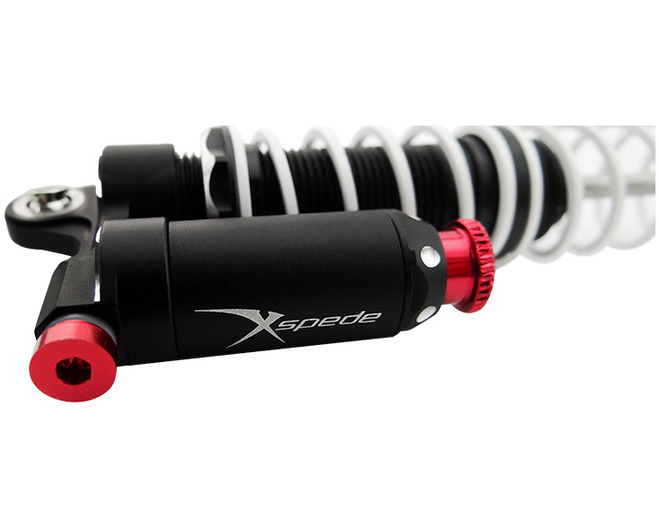

Black 90mm aluminum piggyback shocks with adjustable rebound for most 1/10 2WD vehicles (e. g. TRA Stampede, Rustler, Slash, etc. )
Features
- Functional piggyback reservoirs with externally adjustable rebound compression damping
- CNC machined 6061-T6 aluminum shock bodies, caps, reservoirs, spring adjusters, spring retainers, and shock shaft ends
- Anodized black with red anodized highlights
- Two spring options included
- Bleeder shock caps
- Heavy-duty 3.5mm stainless steel shocks shafts
- Threaded shock bodies for precise preload adjustment
- Steel pivot balls
You will receive
- Two (2) piggyback shocks
- Two (2) pairs of flat wire springs

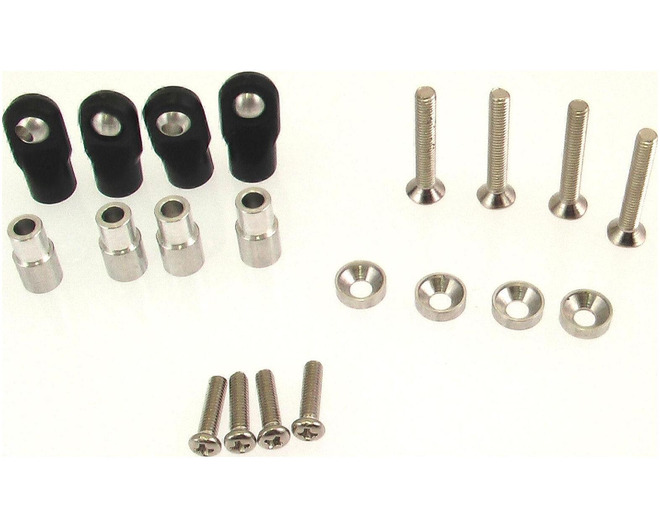

- Mounting hardware
Specifications
- Nominal extended length, eye-to-eye: 90mm
- Travel: 25mm
- White springs: 1.3mm wire, 10 turn
- Black springs: 1.1mm wire, 10 turn
Requirements
- Silicone shock oil
- O-ring lube recommended, such as Team Associated's Green Slime or X-Spede's O-ring Super Lube (SPL10G08)
Comments
- Compression springs made from flat wire offer the advantage of higher energy absorption at the same space. Furthermore, flat wire compression springs are more resistant to buckling.
