XMX3025M15Triple support 30 to 25T M1.5 Direct Drive Conversion X Maxx
Hot Racing Gears - Spurs
$84.88
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

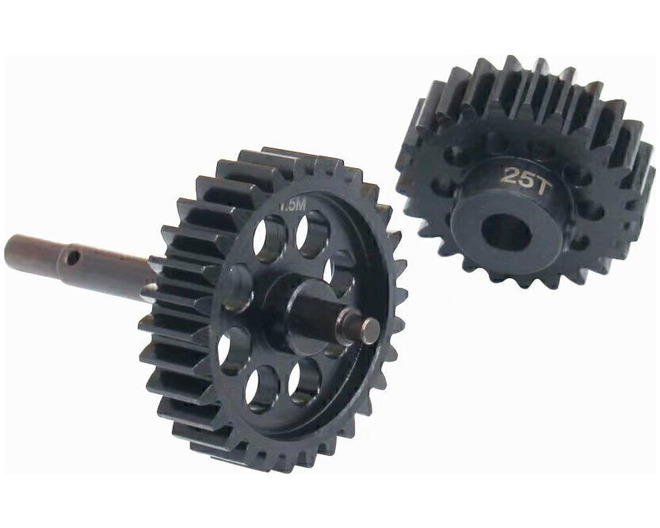

Hot Racing Triple support Direct DRive for the TRA X maxx This part replaces the center Cush Drive Elastomer Damper and the stock gear system for ultimate acceleration. It is used M1.5 30T spurs in conjunction with M1.5 25T pinnon gear
Features
- Triple support gear Axle
- Blue anodized aluminum bearing support
- CNC machined solid 6061-T6 aluminum
- Designed and machined to reduce rotating mass and increase acceleration
- Allows for ultimate speed run acceleration
- Triple support input shaft

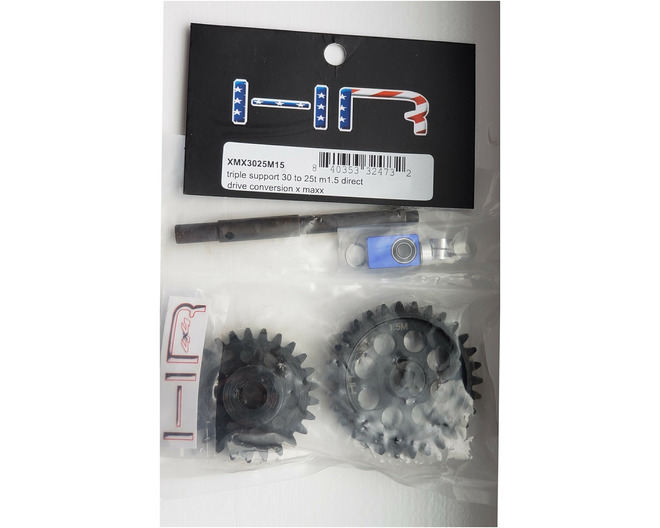

You will receive
- One (1) Third bearing support with bearing
- One (1) Steel Triple support input shaft
- One (1) Steel M1.5 30T Spur gear
- One (1) Steel M1.5 25T 8mm Pinnon Gear
- Four (4) aluminum 3x6x8mm aluminum collars
- Two (2) Steel 0.5mm 6x8mm shim
Requirements
- Medium thread lock (blue threadlocking compound) on screws
- Requires an adjustable motor mount, such as XMX38AX01
Specifications
- Overall diameter: (30T Spur gear) 48.2mm (25T 8mm Pinnon Gear) 40.7mm
- Gear face width: 12mm
Comments
- Not
- Recommended for use on high traction surface .
- If you like to use the stock 5mm Motor you will need NSG85R08
