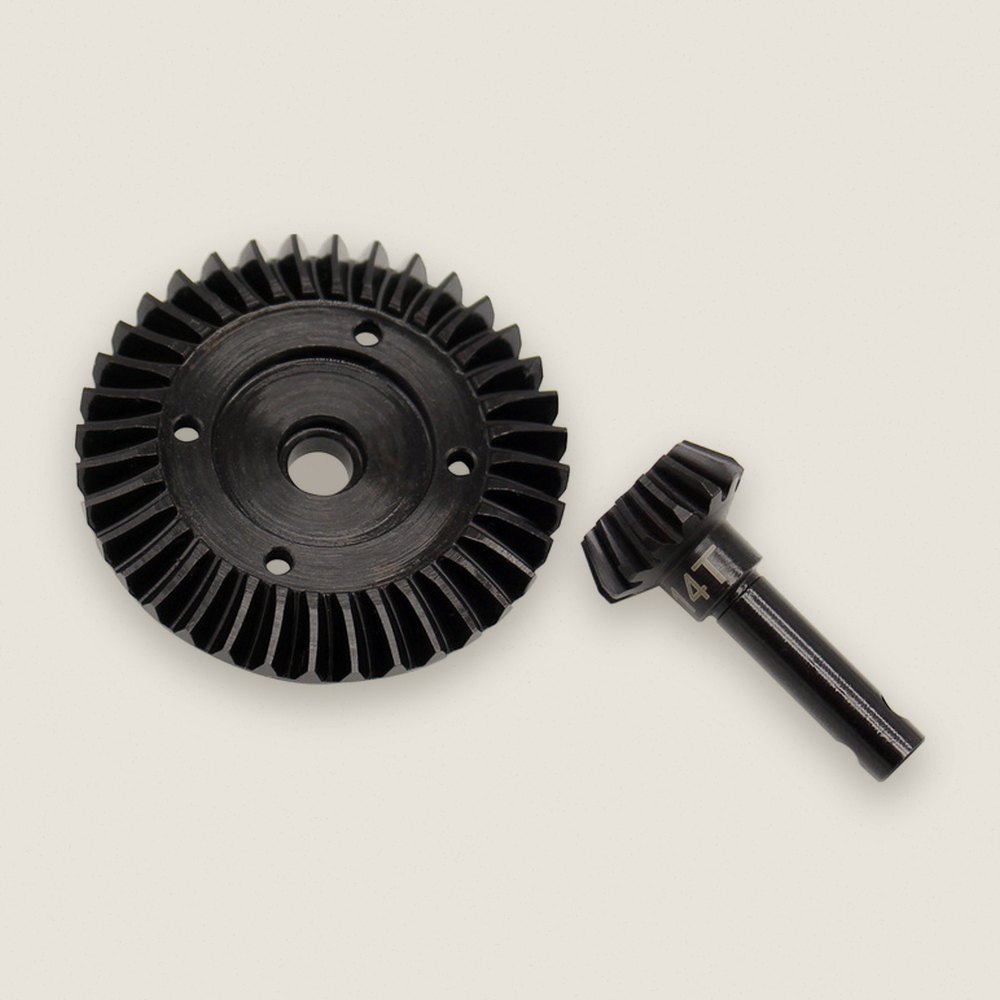

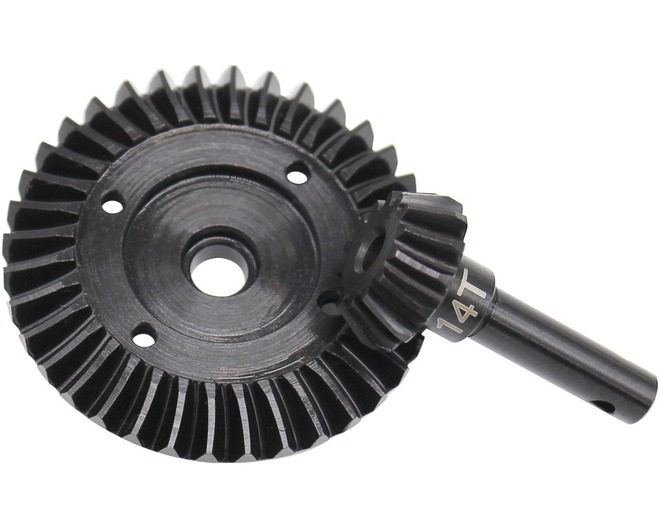

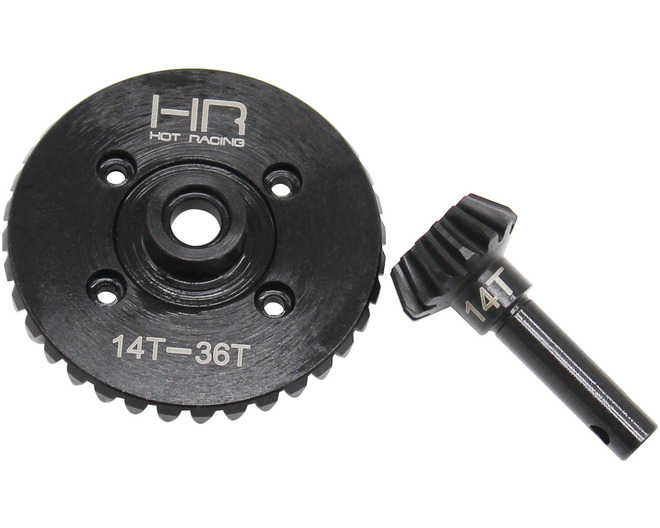

36t/14t Steel Helical Diff Ring/Pinion Overdrive Gear Set

About this part

Hot Racing steel helical spiral 12% overdrive 36T/14T gear set for 1/10 Axial AX10, EXO, RR10 Bomber, SCX10, SMT10, Wraith, and Yeti.

Features

• Precision machined helical spiral cut gears offer inherently greater strength and smooth operation than the factory bevel cut gears
• High carbon steel construction
• Stronger than the stock bevel-cut zinc cast gears
• 36T/14T provides 12% overdrive (vs stock 38T/13T) increases the wheel speed and is commonly used in the front end for digs
• Works on front or rear. Use cases are typically front and rear at the same time, or front only to increase front digs

You will receive

• One (1) 36 tooth spiral cut ring gear
• One (1) 14 tooth spiral cut pinion gear

Requirements

• Installation following kit manual
• One M3x2.5x11mm (Axial AXA0175 or Hot Racing SSP311) or M3x2.5x12mm (Axial AXA176) screw shaft for driveshaft attachment
• Do not use the stock M3x3mm setscrew (Axial AXA180), if originally equipped.
• Medium threadlock (blue threadlocking compound) if screws are threaded into metal
• Hot Racing SPL10G05 high temp grease recommended

Comments

• Replaces Axial AX30392 38/13T bevel-cut zinc cast gears
• Hot Racing gear set options include: SWRA9364 (36T/14T overdriv

Fits

Replaces stock part
