OT 57t Mod 0.8 Steel Spur Gear Arrma 1:10 4x4 Blx 3S 4S

About this part

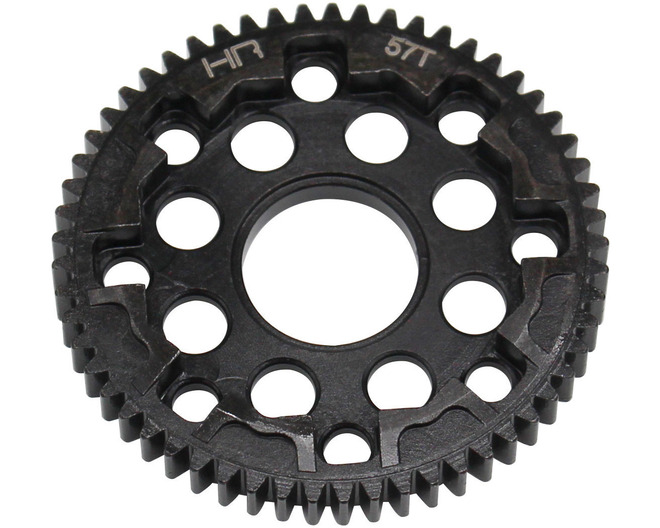

Hot Racing steel super duty 0.8 Mod (32 pitch), 57 tooth spur gear for 1/10 Arrma 4X4 4S 3S BLX brushless vehicles. See comments below for specific vehicle fit information.

Features

• Rugged 32 pitch (0.8 module) for total reliability when using high power brushless systems
• CNC machined and lightened hardened steel construction
• Replaces factory plastic gear
• Black oxide coating for durability and corrosion resistance

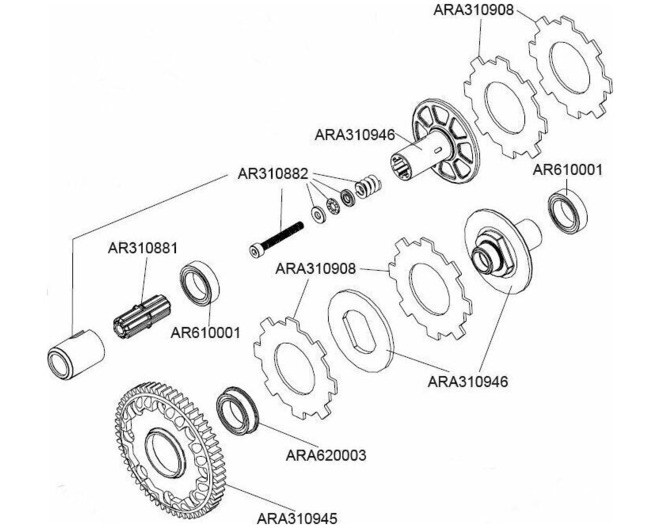

• Can uses factory slipper pads ARA310908 or Hot Racing ATF15N aluminum slipper pad(s)

You will receive

• One (1) 57T 32 pitch (Mod 0.8) spur gear

Specifications

• Number of Teeth: 57
• Gear Pitch: 32 pitch (0.8 module)
• Tooth Face width: 0.24 inch (6mm)

Comments

• Direct replacment OF ARA310945 0.8Mod (32P) 57T spur gear
• KRATON 4X4 4S BLX: ARA102690 and ARA4408V2T1
• OUTCAST 4X4 4S BLX: ARA102692
• Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
• For the following 3S BLX
• You will need add one more slipper pads (4 total)
• .
• Or

Fits

Replaces stock part
