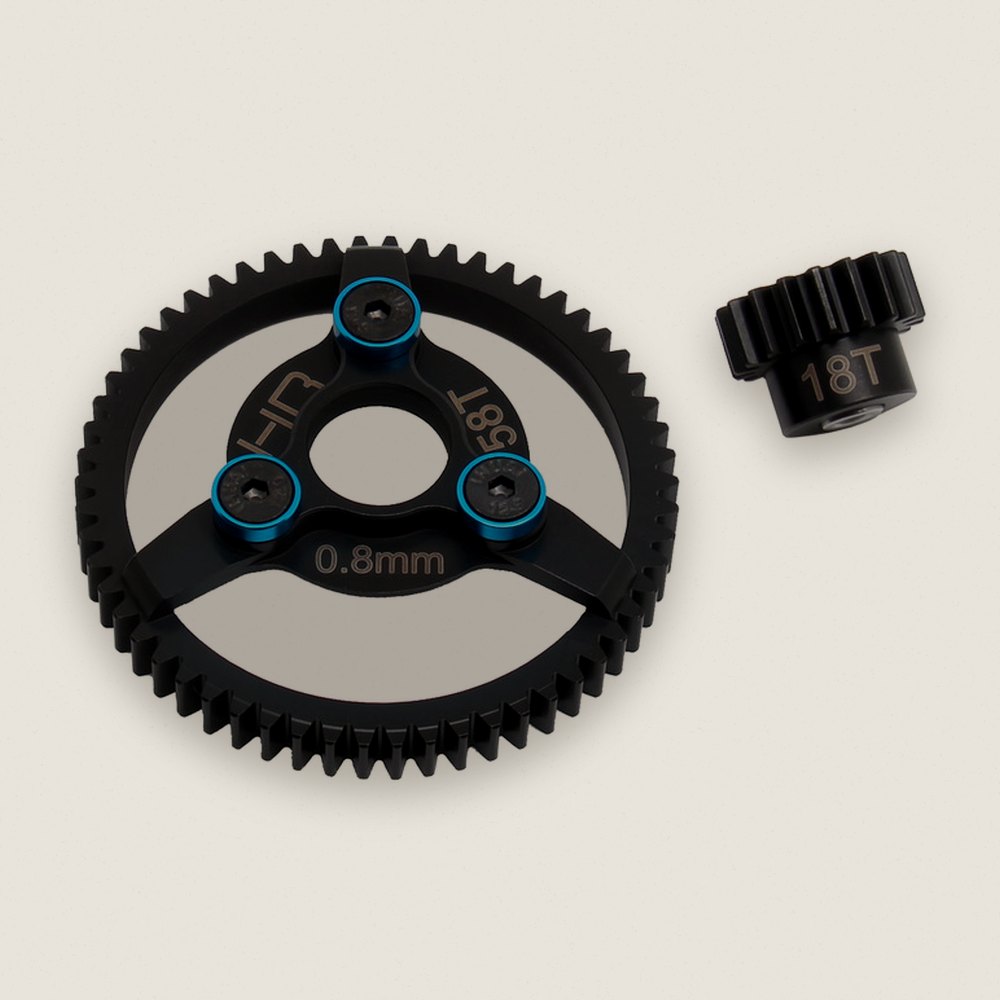

Pinion and Spur Gear Set, Steel 18t/58t 32p (Blue) for Traxxas - Hot Racing

About this part

Pinion and spur combo for 2WD TRA builds. This blue set runs 18T and 58T steel gears with a sleeve that fits either 1/8 inch or 5mm motor shafts.

Features

• CNC machined, lightened, hardened steel
• Replaces the stock nylon spur gear
• 0.8 module, 32 pitch teeth for brushless power
• Aluminum pinion sleeve for 1/8 inch or 5mm motor shafts
• Black oxide coating for durability and corrosion resistance
• Blue anodized countersunk aluminum washers
• High strength hardware

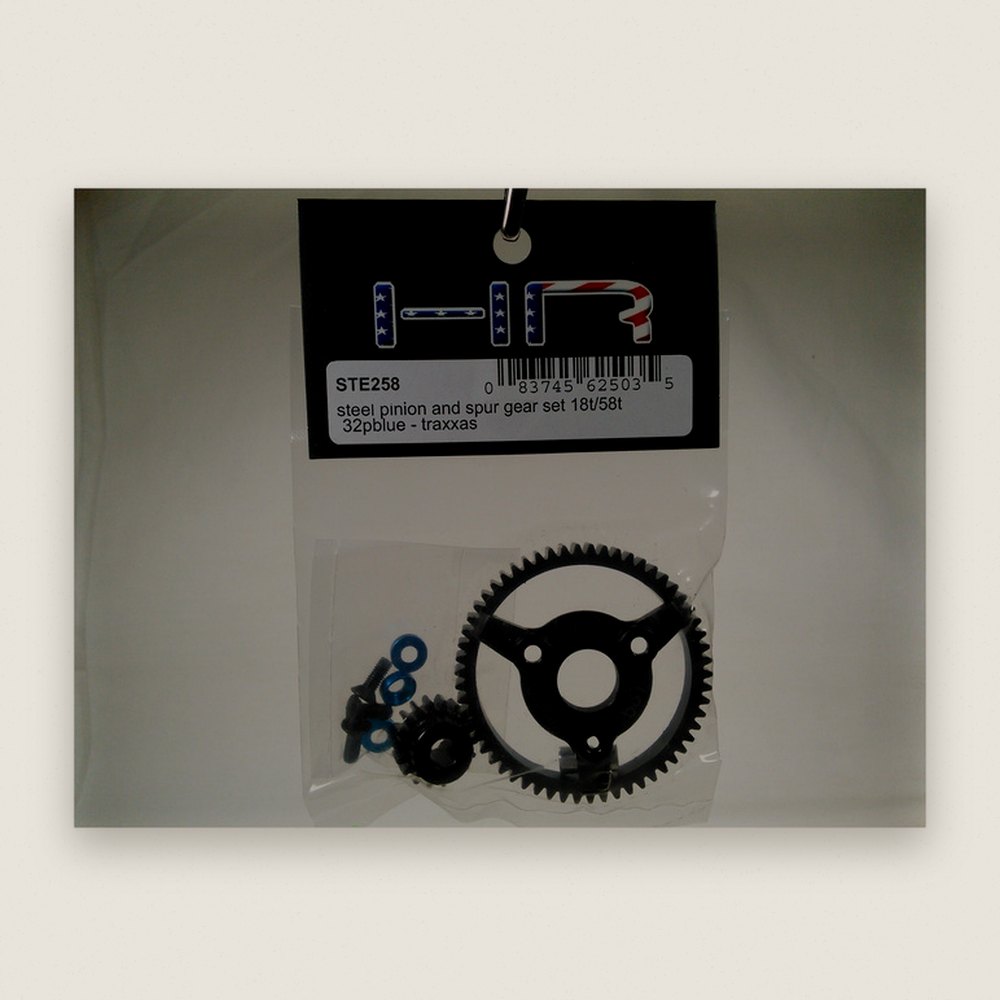

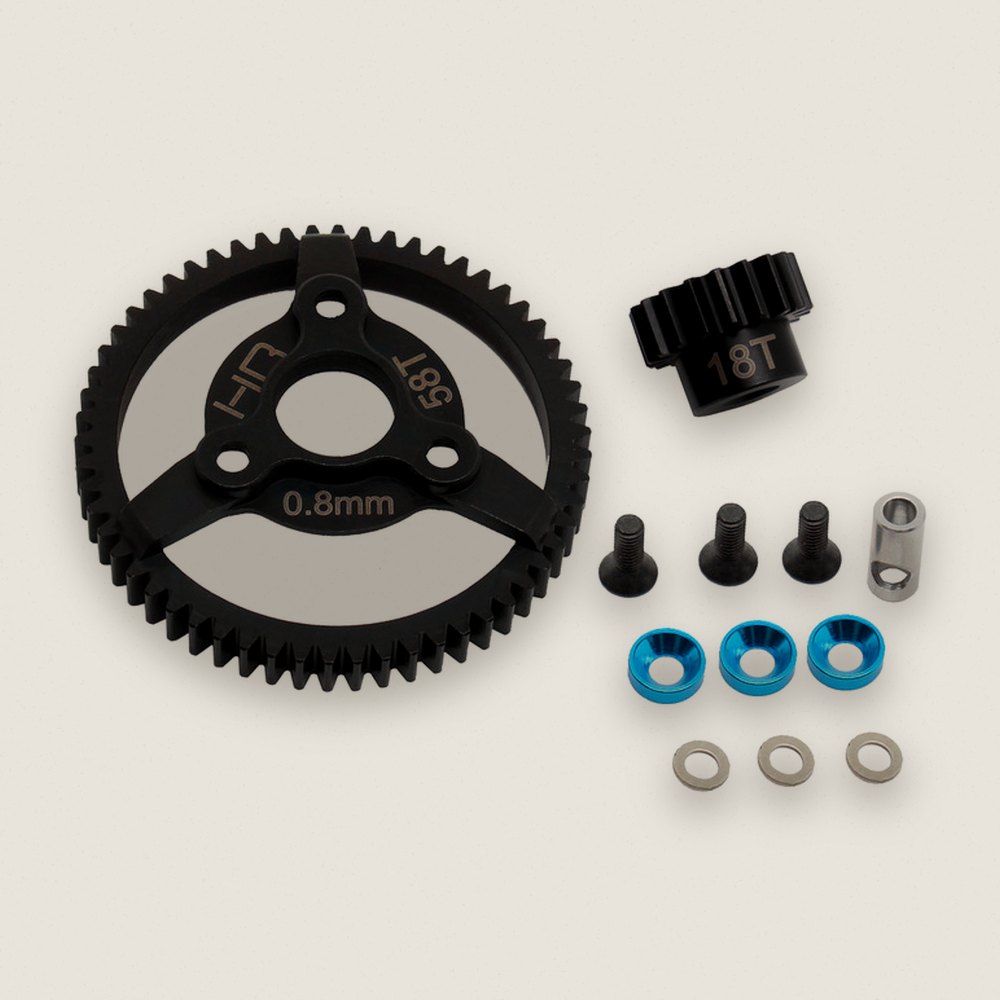

• YOU GET:
• One 18 tooth, 32 pitch (0.8 mod) pinion gear
• One 58 tooth, 32 pitch (0.8 mod) spur gear
• Three mounting screws
• Three blue anodized countersunk washers
• One pinion adapter sleeve
• Three spacer washers, for under the countersunk washers if screw ends poke through the backing plate
• SPECS:
• Teeth: 18T/58T
• Pitch: 32 (0.8 module)
• Mounting holes: 3
• Face width: about 5mm

Notes

• Consider Hot Racing motor lock plate TE18L06 for secure motor mounting.
• Motor should never exceed 180F. ESC should not exceed 160F. Excess heat shortens motor and ESC life.
• FITS:
• Traxxas Rustler 2WD EHD
• Traxxas Bandit Electric
• Traxxas Drag Slash
• Traxxas Rustler 2WD
• Traxxas Slash 2WD all versions
• Traxxas Slash 2WD EHD
