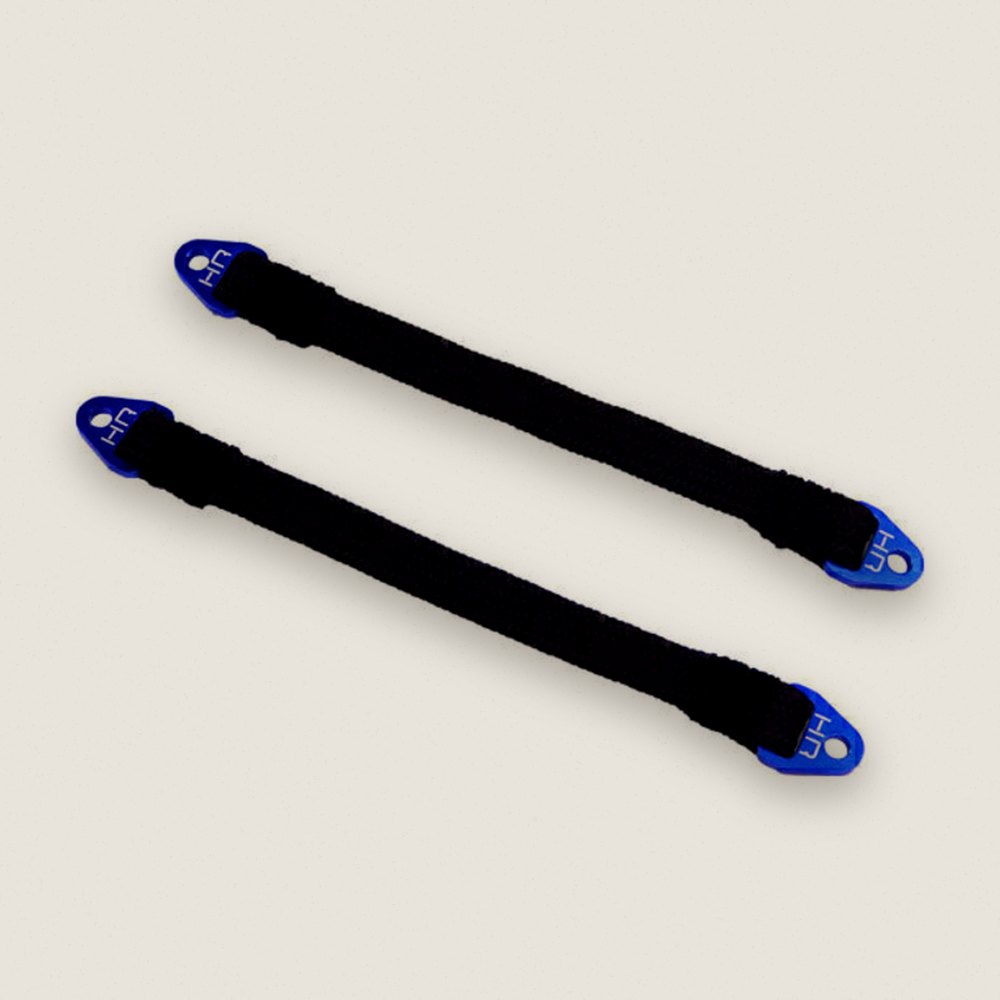

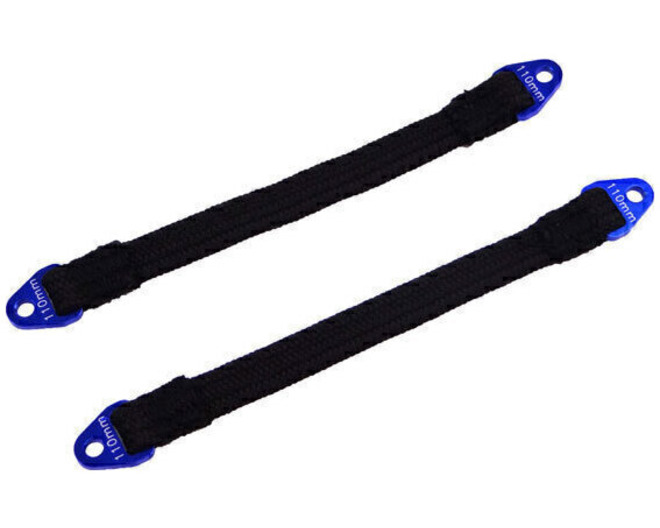

Suspension Travel Limit Straps 110mm (2)

About this part

Hot Racing scale functional suspension limit straps limit suspension travel on all types of off-road R/C vehicles, including rock crawlers and racers. Limit straps are used to take stress off shocks and to control suspension extension. For example, when crawling up or descending steep grades, straps tied to the center of an axle are useful to limit the suspension from unloading and the vehicle from rolling, all while keeping suspension articulation intact. From climbing, to droop control, to super scale looks, these limit straps will get you further and get you noticed!

Features

• Woven 2-ply Nylon fabric strap material
• CNC machined aluminum clevis buckles, anodized blue in color

You will receive

• Two (2) 110mm (nominal length) limit straps

Requirements

• Installation on vehicle, custom mounting may be required
• Mounting hardware to suit installation

Specifications

• Length eye-to-eye: 110mm (4.33 inch)
• Total length end-to-end: 117mm (4.61 inch)
• Nominal strap size: 8x2.3mm (0.31x0.09 inch)
• Eyelet hole size: 3.3mm (0.13 inch) - for a 3mm screw

Comments

• These straps are made from 200 lb. test nylon and offers minimal stretch to provide a consistent strap length and to protect against ov

Fits
