Servo Saver, Adjustable Steering Bellcrank for TRA Rally/Rustler/Stampede 4x4 - Hot Racing

About this part

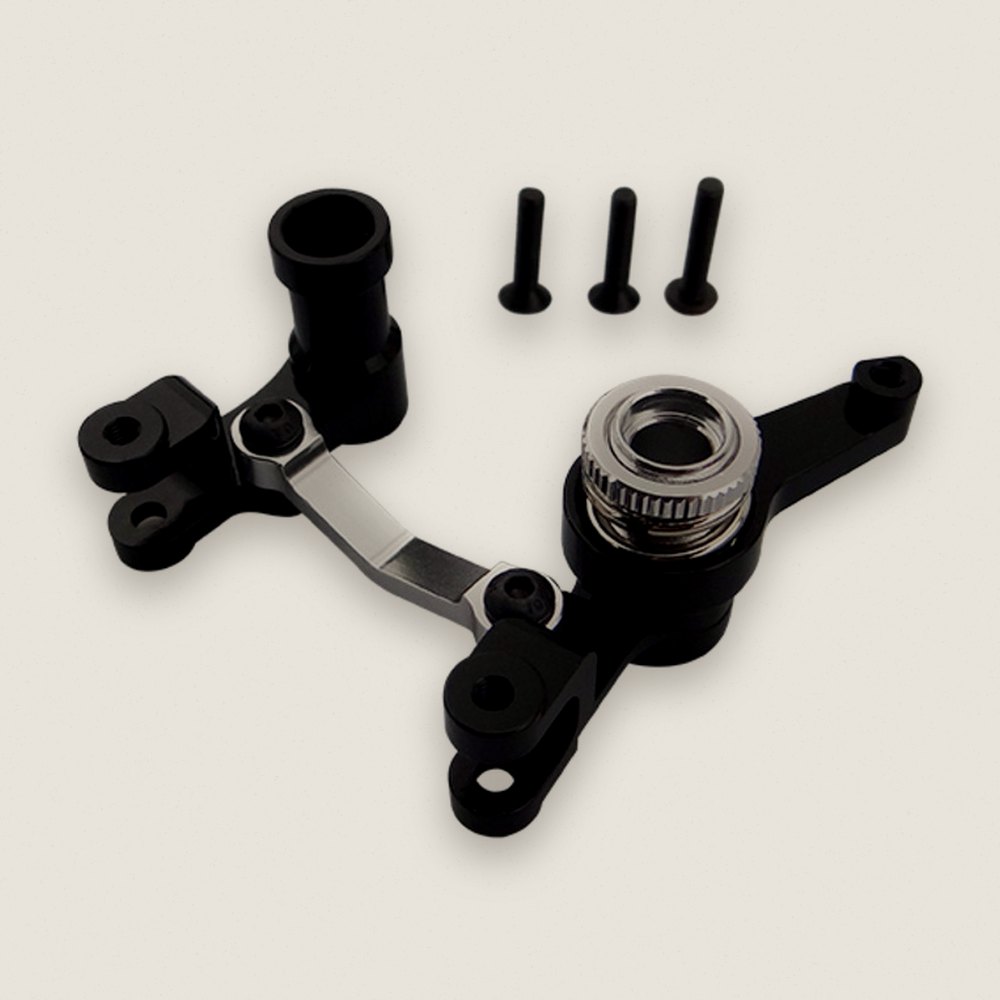

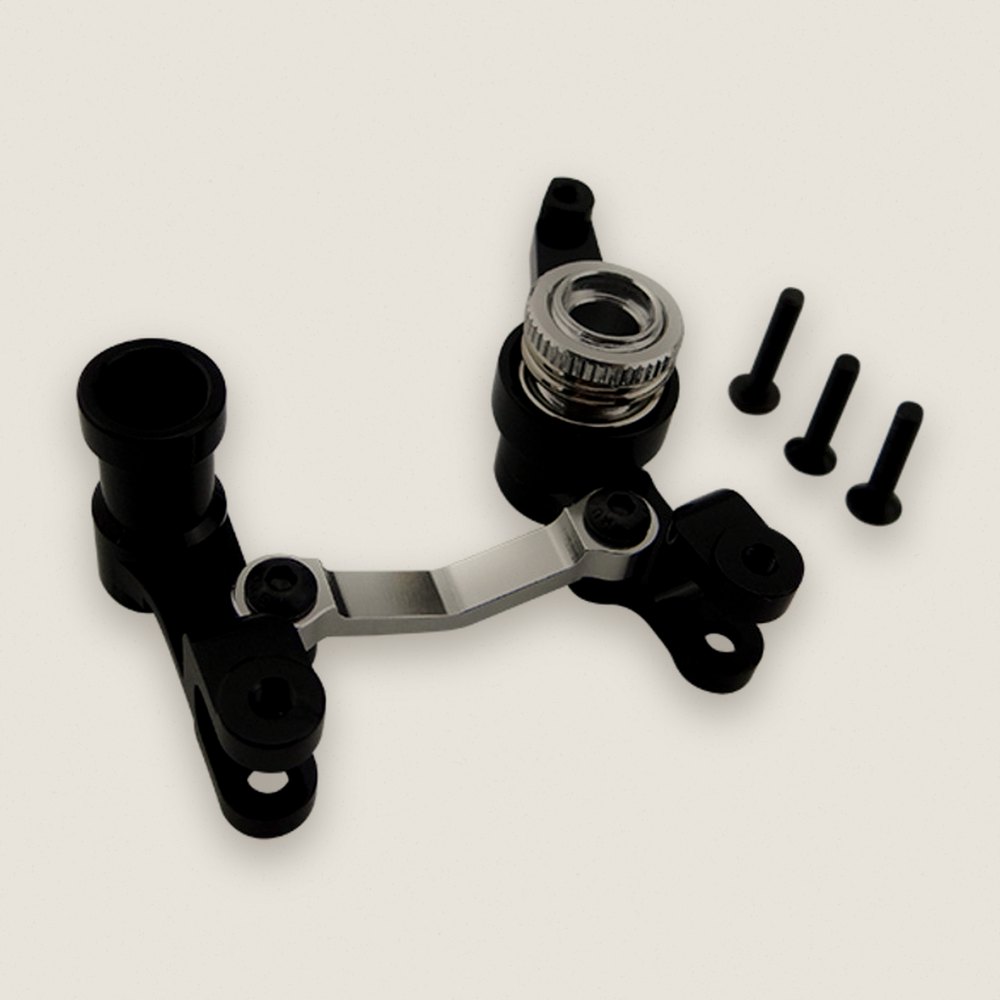

Hot Racing's CNC machined aluminum steering bellcrank with an adjustable spring-loaded servo saver arm. When you hit something, the arm takes the load so your servo gears don't have to.

Features

• CNC machined aluminum
• Adjustable spring-loaded steering arm protects servo gears during impact

You will receive

• One (1) steering servo saver bellcrank
• FITS:
• Traxxas 1:10 Jato 4x4
• Traxxas Hoss 3S
• Traxxas LCG Slash 4x4 or Rally
• Traxxas Rustler 4x4
• Traxxas Rustler 4x4 EHD
• Traxxas Slash 4x4 (2024 and older)
• Built for the 1/10 TRA Rally 4X4 VXL, Rustler, Slash, Stampede 4X4, and Telluride 4X4 and 2WD Drag Slash

Requirements

• Reuses your stock steering bellcrank bearing
• Use removable thread-locker on screws going into metal
• High-pressure grease on the servo saver cam surfaces smooths out the action

Specifications

• Brass bushing: total length 4.7mm, ID 3mm, OD 4.5mm, flange diameter 6-7mm, flange thickness 0.5mm

Comments

• Replaces TRA plastic 6845 or 6845X steering bellcranks
• Replacement brass bushings: Hot Racing SLF48RB

Fits
