Mini HeatVision ITV500 Tool - SkyRC

About this part

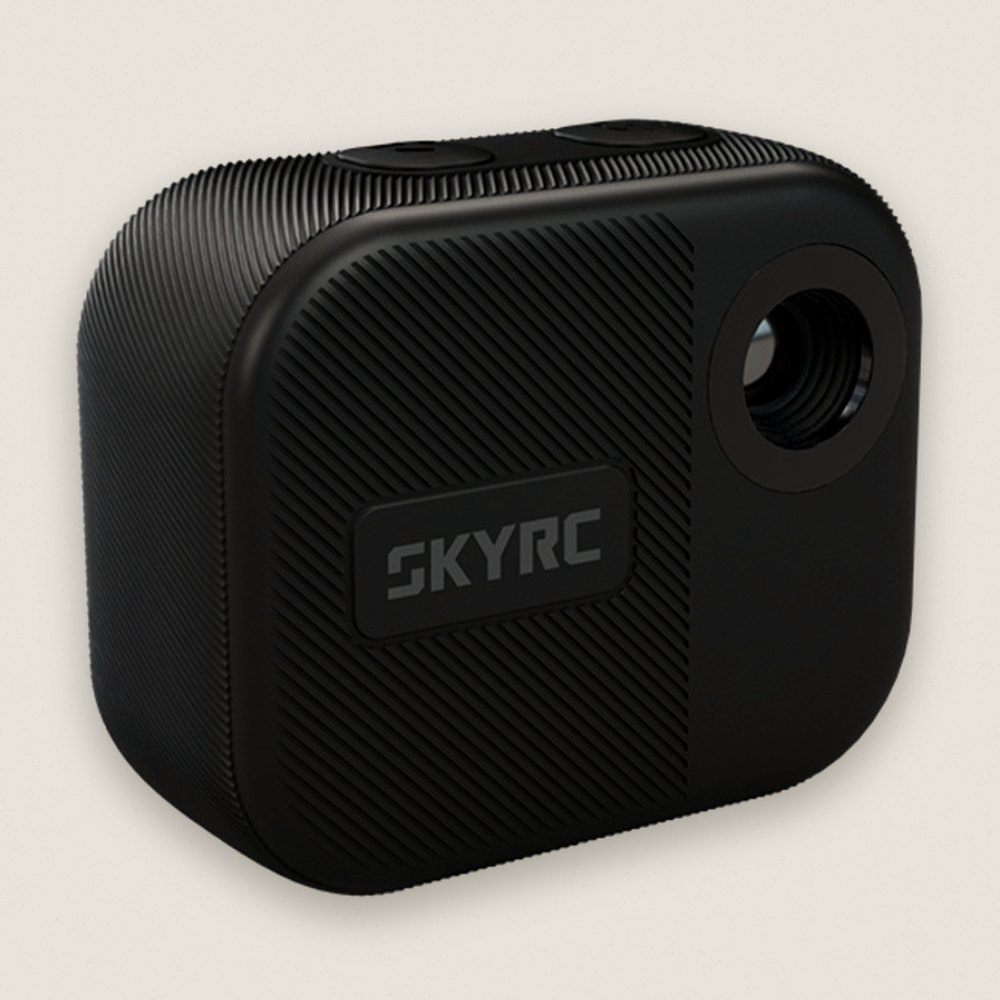

SkyRC ITV500 Mini HeatVision thermal camera. It's built for checking heat on your RC gear at the track or the bench.

Specifications

• Size: 46 x 38 x 20.1mm
• Weight: about 38g

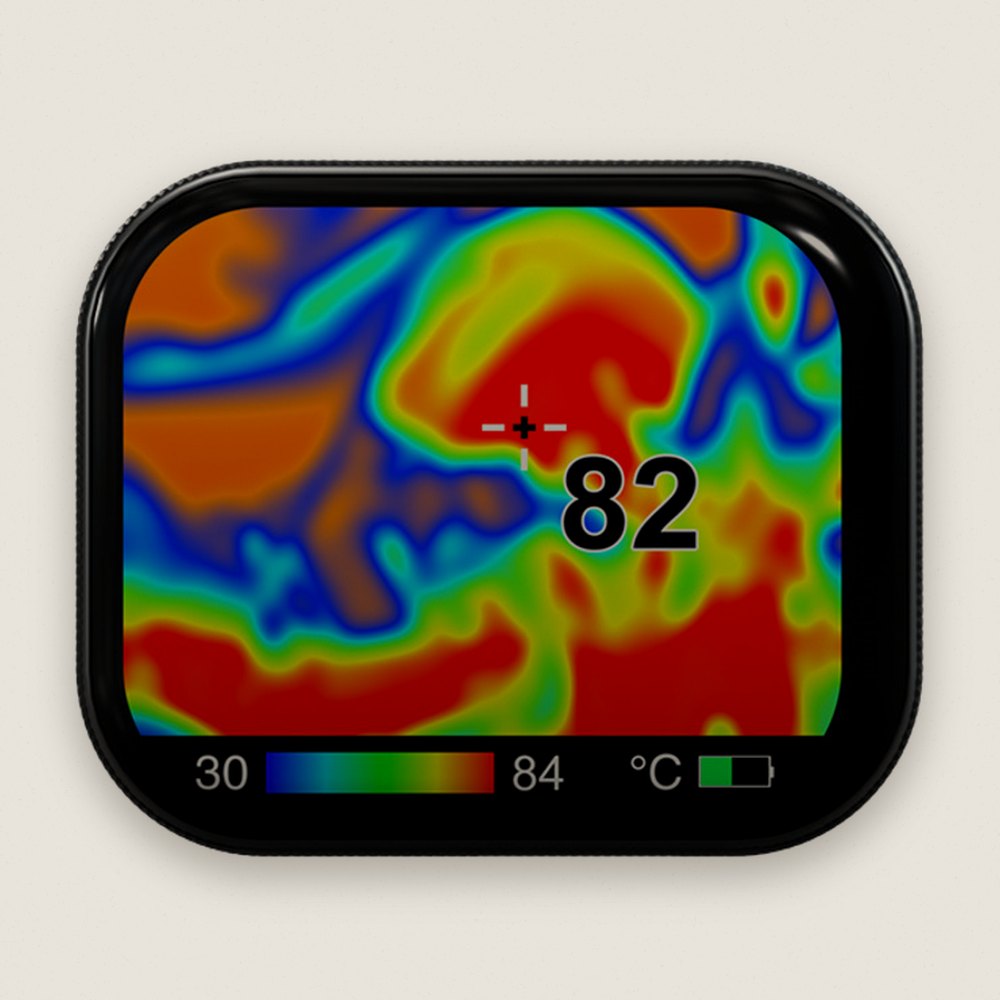

• Display: 1.83 in capacitive touch screen, 240 x 284 pixels
• IR resolution: 32 x 24 pixels
• Thermal sensitivity: 100mK @ 1Hz
• Field of view: 55 x 35
• Frame rate: 8 FPS
• Battery: 600 mAh rechargeable lithium
• Charging: USB Type-C, DC 5V input
• Measurement range: -20C (-4F) to 300C (572F)
• Accuracy: 2.0C (3.6F)
• Measuring distance: under 5 m (within 20 cm for high accuracy)
• Languages: EN, CN, FR, DE, ES, JP
• Operating temperature: -5 to 60C
• Working humidity: 85% RH, non-condensing
• Storage temperature: 0C to 35C
• Storage humidity: 65% RH, non-condensing
