SH25TH01Offset Servo Arm, Aluminum 5 mm 25 Spline - Hot Racing
Hot Racing Radio Accessories
$14.09
Out of stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked: this one just sold out — check back soon.
About this part

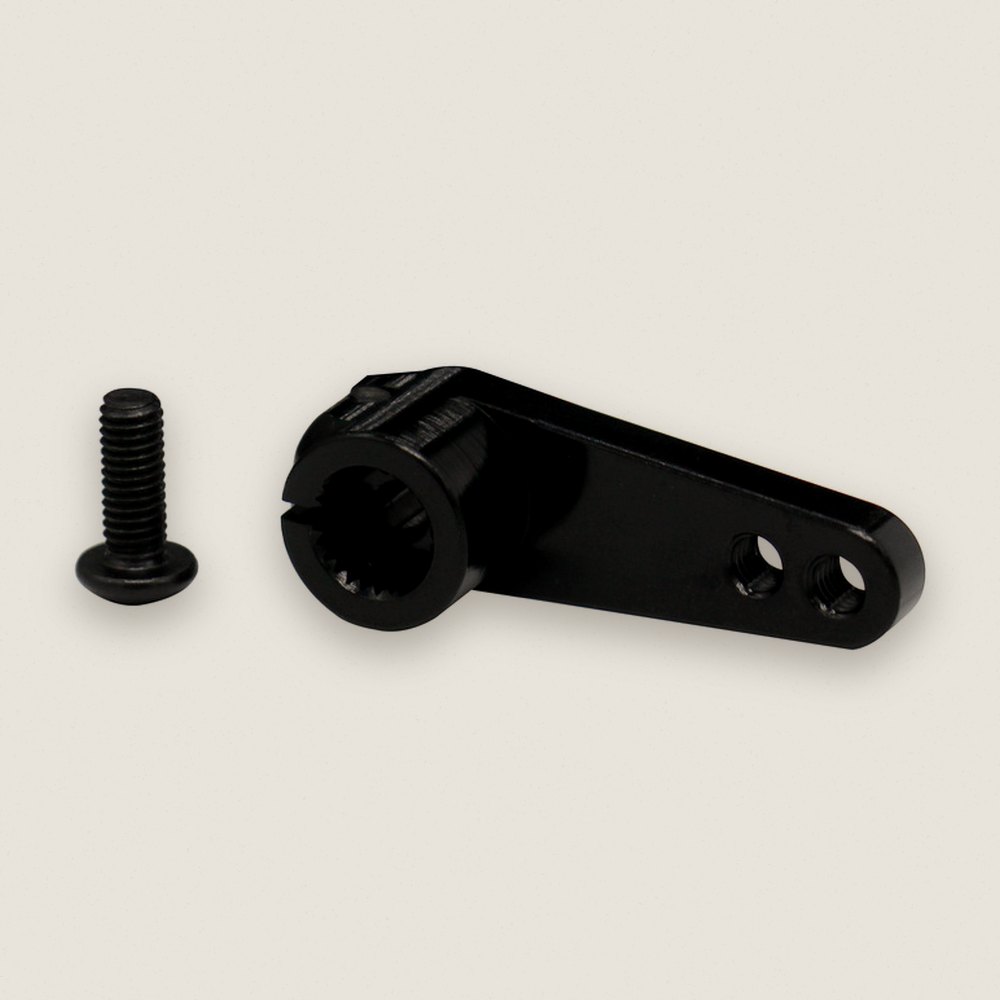

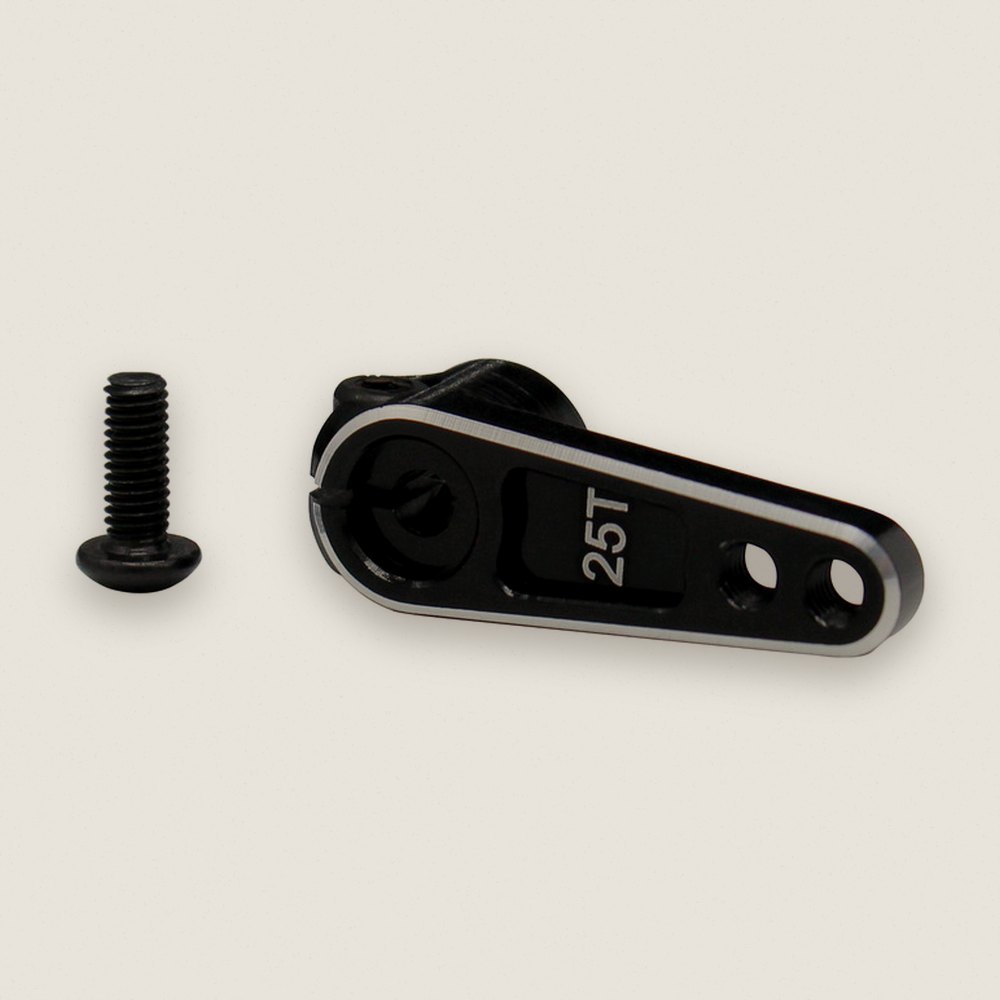

Hot Racing 5mm offset aluminum servo horn for 25 spline servos. Double clamp, black, tougher arm. Double clamping servo horn for Futaba, TRA, Savox, Orion and ProTek servos. CNC machined 6061 aluminum, anodized black, with two M3 holes. Install needs a servo screw and thread lock. The arm is 5mm offset, 10mm thick, with 16mm and 20mm hole spacing.
Features
- Lock clamp for a precise, secure fit
- CNC machined 6061 aluminum, anodized black
- Two M3 holes

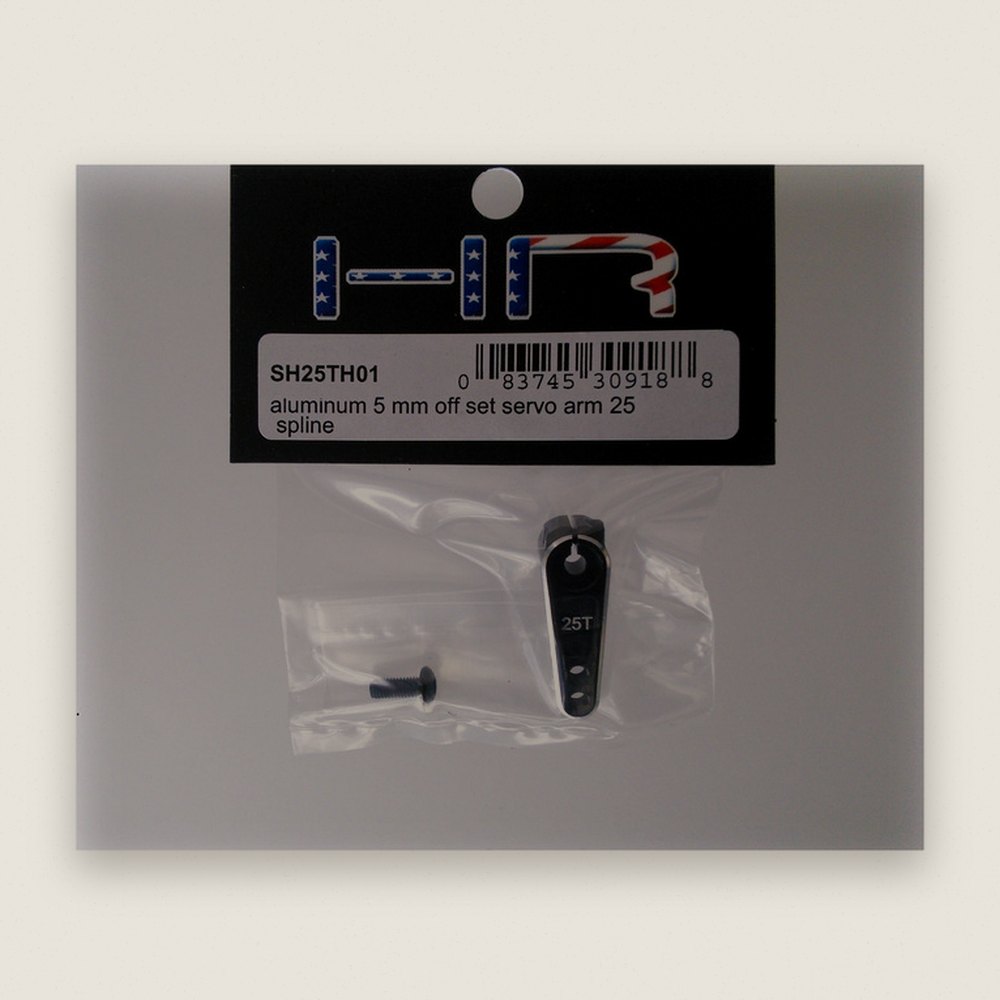

You will receive
- One 25T servo horn
- One M2.5x4mm socket head cap screw for clamp
Requirements
- 25 spline servo (Futaba/TRA/Savox/Orion/ProTek)
- Servo screw
- Thread lock adhesive
Specifications
- Hole A distance: 16mm
- Hole B distance: 20mm
- Thickness: 10mm
- Offset: 5mm
- Material: 6061-T6 aluminum
- Spline: 25T
- Arm thickness: ~3.5mm, length ~28.5mm
- FITS:
- Tamiya Hummer
- Tamiya F-150/S-10
- Tamiya Hi-Lift: F350 Tundra HiLux
- HPI Electric Wheely King 1/12
- Axial AX-10 Scorpion Crawler
- Tamiya CR-01 Crawler FJ40
