Offset Servo Arm, Aluminum 5 mm 23 Spline - Hot Racing

About this part

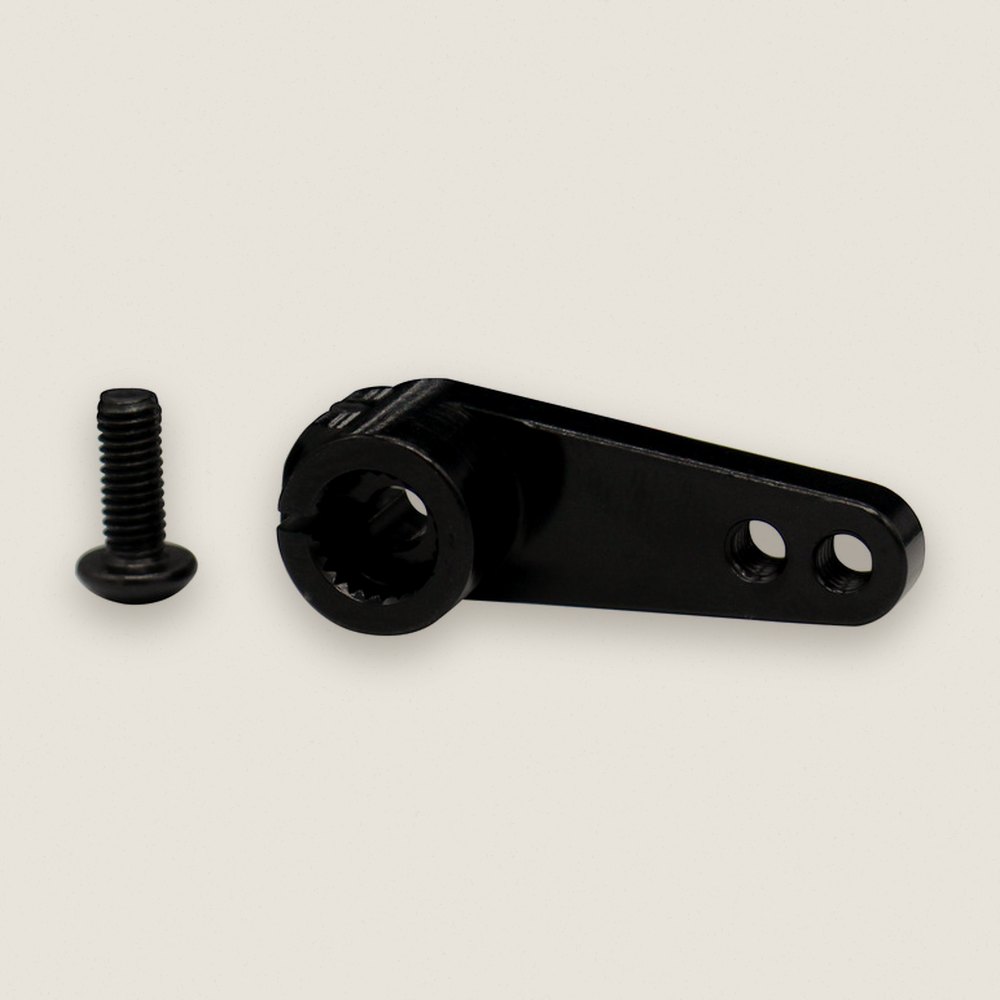

Hot Racing aluminum 5mm offset servo arm for 23 spline servos. Stronger, thicker and more clearance. Clamping servo horn in 6061 aluminum, anodized black. The arm is thick and strong, with 5mm of offset for better clearance. Two M3 drag link holes and a single clamp screw. Install needs a servo screw and thread lock.

Features

• 23T for JR, Airtronics and KO servos
• 6061 aluminum, anodized black
• Strong and thick
• Increased arm offset for better clearance
• Two M3 drag link mounting holes
• Single clamp screw

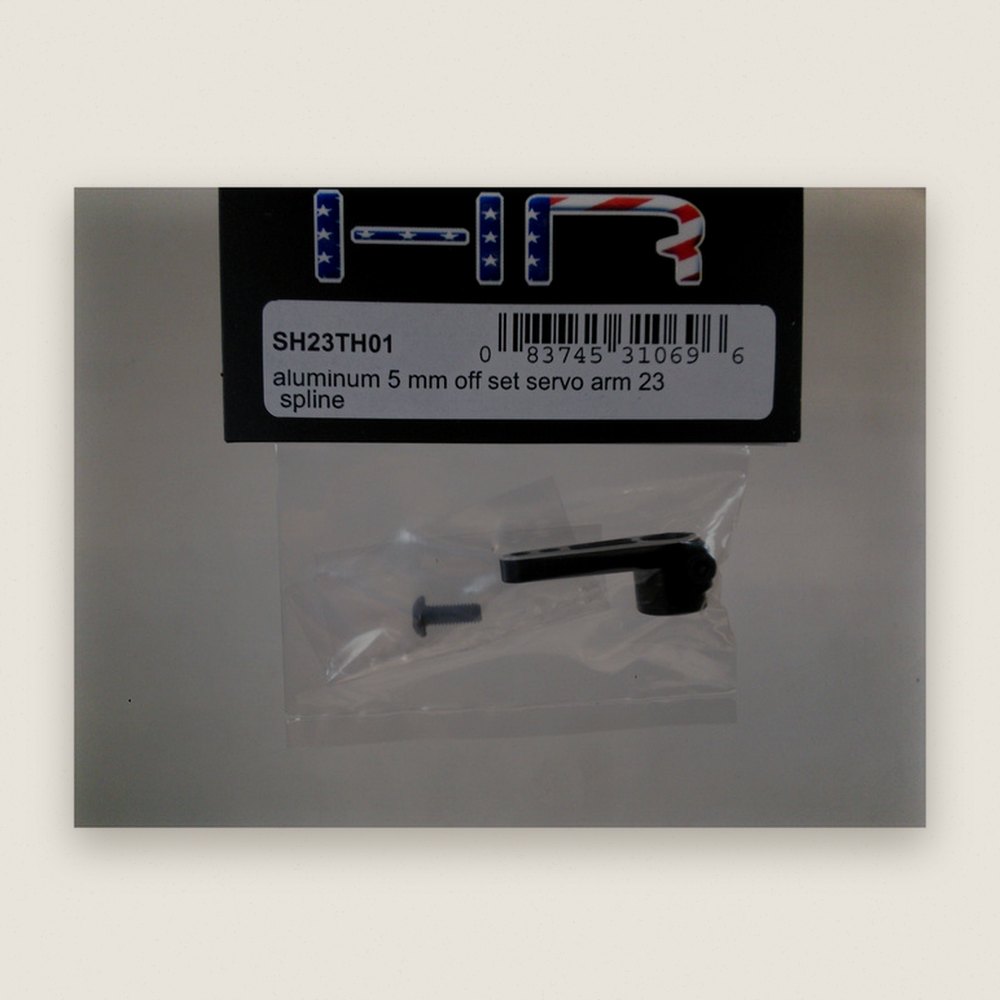

You will receive

• One 23T servo horn
• One M2.5x5mm socket head cap screw for clamp

Requirements

• 23 spline servo (JR/Airtronics/KO)
• Servo screw
• Thread lock adhesive

Specifications

• Hole A distance: 16mm
• Hole B distance: 20mm
• Thickness: 10mm
• Offset: 5mm
• Material: 6061-T6 aluminum
• Spline: 23T
• Arm thickness: ~3.5mm, length ~28.5mm
• FITS:
• Tamiya Hummer
• Tamiya F-150/S-10
• Tamiya Hi-Lift: F350 Tundra HiLux
• HPI Electric Wheely King 1/12
• Axial AX-10 Scorpion Crawler
• Tamiya CR-01 Crawler FJ40
