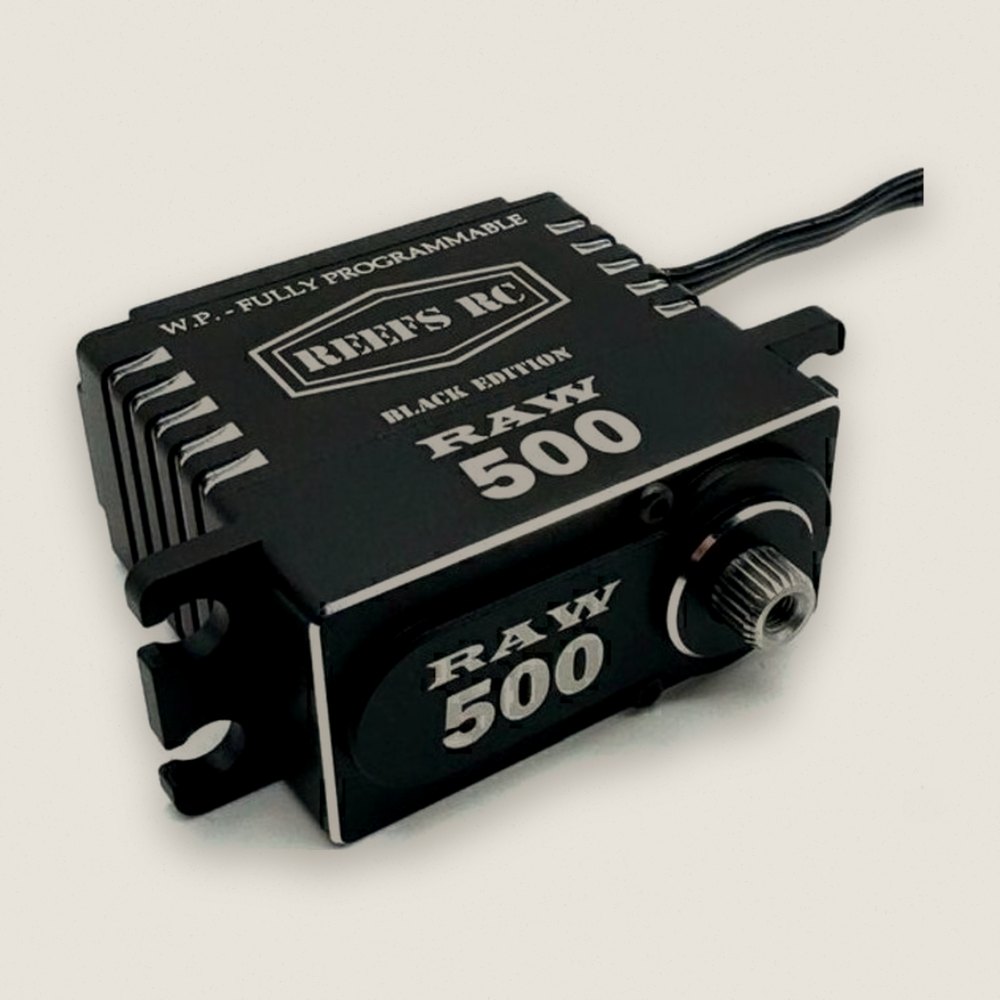

Servo Programmable, Raw 500 Black Edition - Reefs RC

About this part

A high-torque, high-speed brushless servo built with military grade construction and 7 point submarine seals. It runs a magnetic angle sensor with PWM control. REEFS LINK required for programming. No BEC needed, but it is recommended for max performance.

Specifications

• Voltage: 4.8V / 8.4V
• Internal: steel gears, all CNC aluminum casing
• Bearings: 2 ball
• Weight: 2.75 oz
• Size (LWH): 1.57 x .79 x 1.5 in
• Torque: 450 oz @ 6V, 500 oz @ 7.4V, 565 oz @ 8.4V
• Speed: .11 s @ 6V, .095 s @ 7.4V, .08 s @ 8.4V
• Spline: 25T, dead band width 2s
