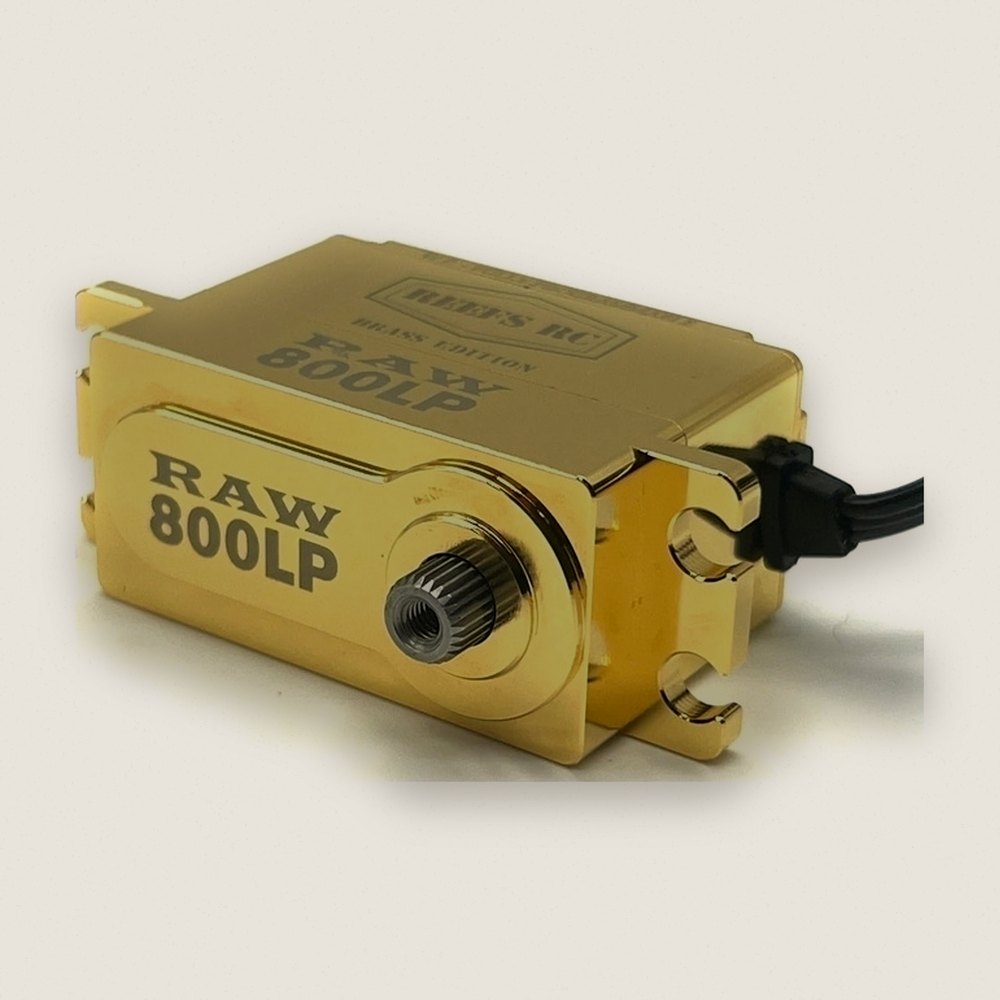

Servo, RAW 800LP Brass Edition, Fully Programmable - Reefs RC
SEHREEFS160

Servo, RAW 800LP Brass Edition, Fully Programmable - Reefs RC

Reefs RC Radio Accessories
$225.79
Out of stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked: this one just sold out — check back soon.

About this part

The RAW800LP Brass Edition is a fully programmable, brushless low profile servo. A BEC is not required, but it is recommended for best performance.

Specifications

  • Motor: 4 pole brushless
  • Waterproof: submarine rated, 7 point seals
  • Positioning: magnetic angle sensor
  • Voltage: 4.8V to 8.4V
  • Programming: REEFS LINK required (optional)
  • Gears: steel
  • Spline: 25T, dead band width 2
  • Case: CNC aluminum
  • Bearings: 2 ball
  • Weight: 2.3 oz / 66 g
  • Size (LWH): 1.6 x .79 x 1.16 in / 40.8 x 20.2 x 29.5 mm
  • Torque: 635 oz @ 6V, 715 oz @ 7.4V, 800 oz @ 8.4V
  • Speed: .12 s @ 6V, .10 s @ 7.4V, .09 s @ 8.4V
  • Unloaded current: 500 mA @ 6V, 540 mA @ 7.4V, 580 mA @ 8.4V
  • Loaded current: 6000 mA @ 6V, 6800 mA @ 7.4V, 7500 mA @ 8.4V
  • FITS: Align T-Rex 250, 450, 500, 550, 600, 700

Fits

Align T-Rex 250Align T-Rex 450Align T-Rex 500Align T-Rex 550Align T-Rex 600Align T-Rex 700Arrma 1:10 2WD ADX-10 BuggyArrma 1:10 2WD Fury (old)Arrma 1:10 2WD Granite MegaArrma 1:10 2WD Raider BLX BuggyArrma 1:10 4x4 Vorteks 3S BLXArrma 1:10 Mojave Desert TruckAssociated 1:10 Apex Touring V-TypeAssociated B44.xAssociated RC-10 DS
