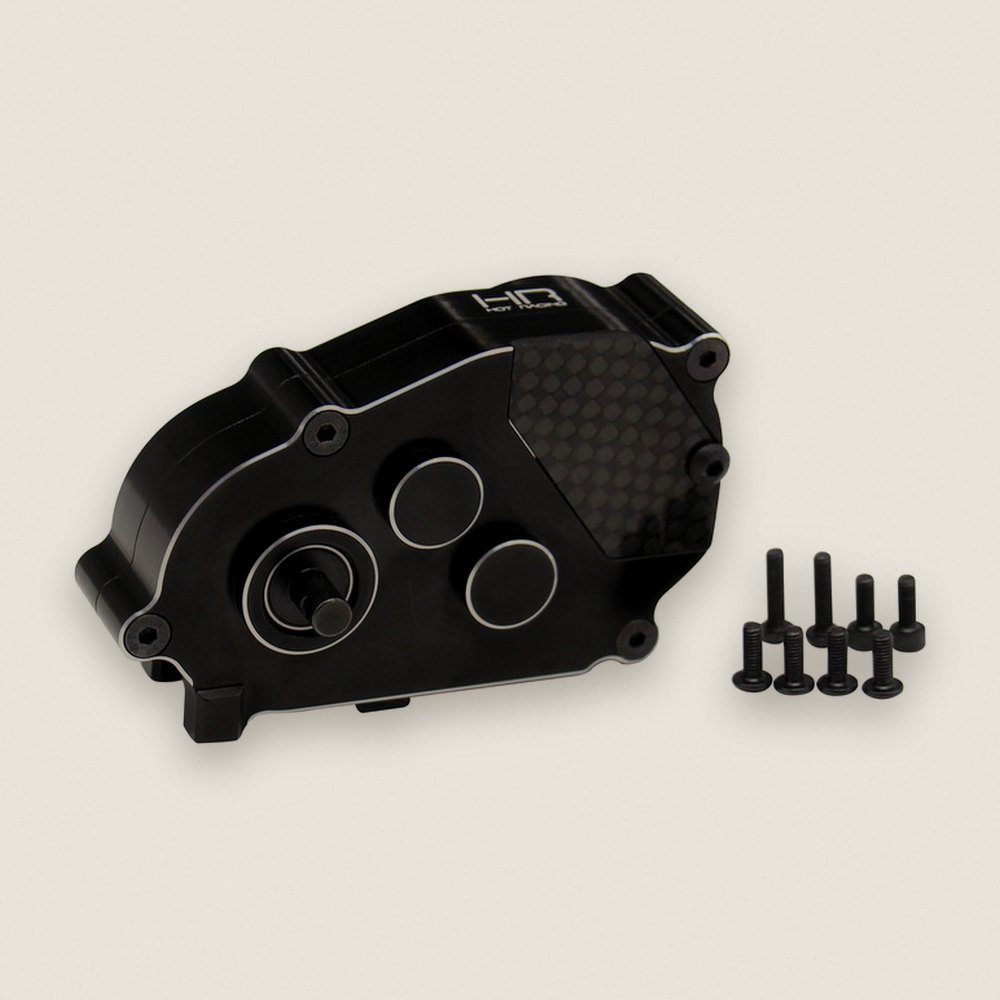

LCG crawler Transmission Axial SCX 10 Scx2 Wraith1.9

About this part

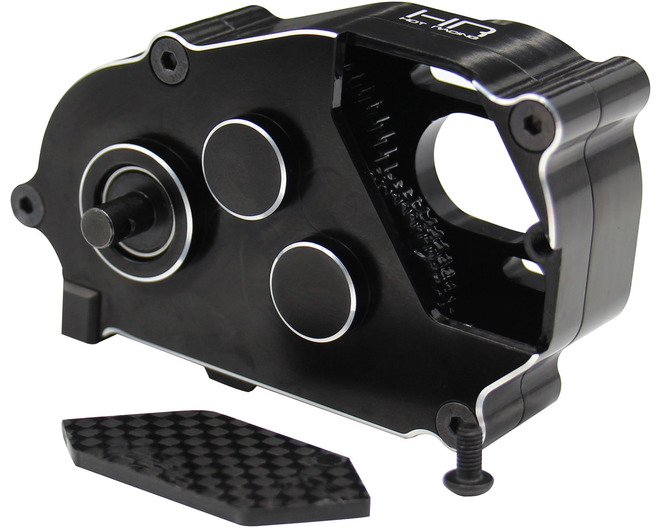

Hot Racing low center of gravity Crawler transmission for the Axial AX10 SCX10 SCX2 RTR Waith 1.9 etc vehicles

Features

• CNC machined 6061 aluminum case
• Hardened steel gears
• Full ball bearing
• High gear reduction
• 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
• Supports 9T to 30T 48 pitch pinion gears

You will receive

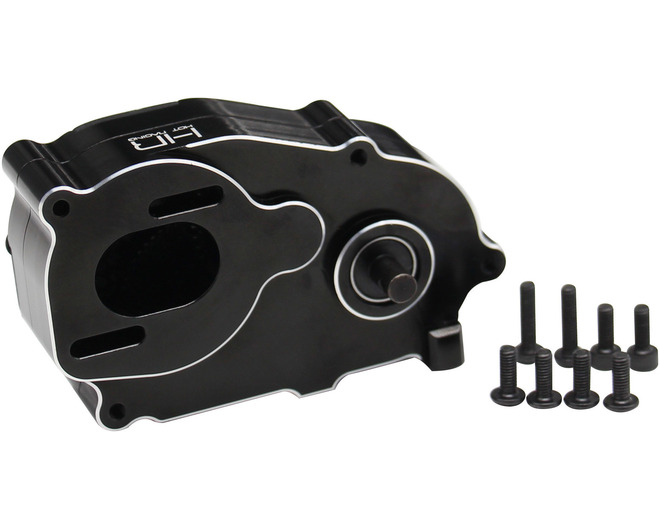

• One (1) low CG transmission
• Four (4) M3x8mm flat head cap screw
• Two (2) M3x8mm button head cap screw

Requirements

• Due to the large array of vehicle variants, additional axle trimming may be required
• Recommended to use black grease gear lubricant on gear train

Specifications

• Length: ~78.8mm - width: ~18.8mm
• Height: ~47.8mm

Comments

• A 12T, 48P pinion will produce a 49.5:1 final drive ratio
• Replacement parts include: RSCP12SG (internal gear set - output shaft and gear are different), RSCP12CC (clear gear cover)
• Bearings are: 2x 10x15x4mm, 1x 4x10x4mm, 3x 5x10x4mm

Fits
