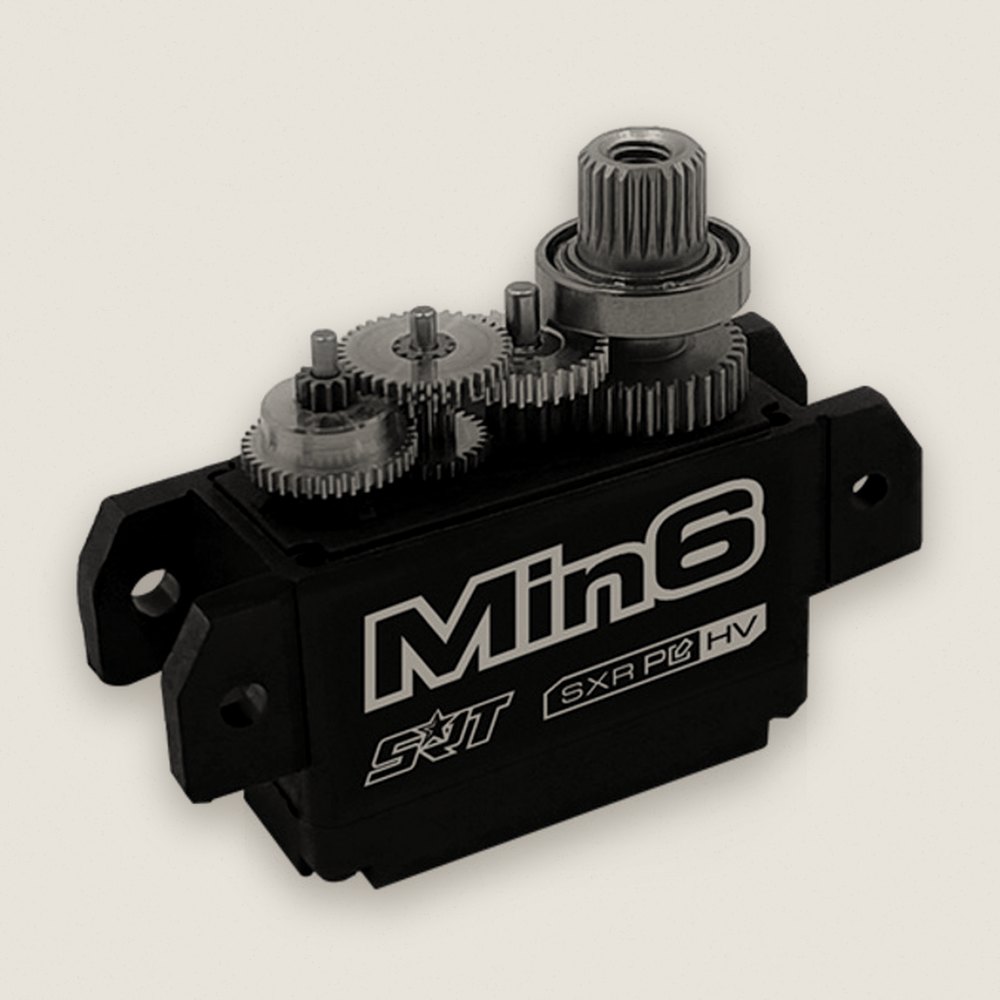

Servo, SRT Min6 1/12 Pancar HV Coreless - Schumacher

About this part

A special 1/12 pancar servo with multiple ultra high speed modes (SXR, SFR, SR, SSR). It's designed to sip power, with a 2 second dead band and a 1-year limited warranty.

Specifications

• Type: Digital
• Bearing: Dual
• Motor type: Coreless
• Gear type: Metal, 7075 aluminum
• Control system: pulse width control
• Working frequency: 1520s / 333hz
• Operating voltage: DC 4.8-8.4v
• Operating temperature: -10 to +60 degrees
• Speed (no load, 60 degrees): 0.100 sec at 4.8v, 0.080 sec at 6.0v, 0.070 sec at 7.4v, 0.062 sec at 8.4v
• Stall torque: 5.0kg.cm (69.4 oz/in) at 4.8v, 6.8kg.cm (94.4 oz/in) at 6.0v, 8.0kg.cm (111.1 oz/in) at 7.4v, 9.0kg.cm (125.0 oz/in) at 8.4v
• Potentiometer drive: direct drive

Dimensions

• 27.2x12.1x28.2 mm / 1.07x0.48x1.11 in
• Weight: 18.0g (0.63 oz)
• Connector wire length: JR 170 mm
• FITS: Associated RC-12L, RC-12L3, RC-12L4, RC-12LW, RC-12R5, RC-12R5.2
