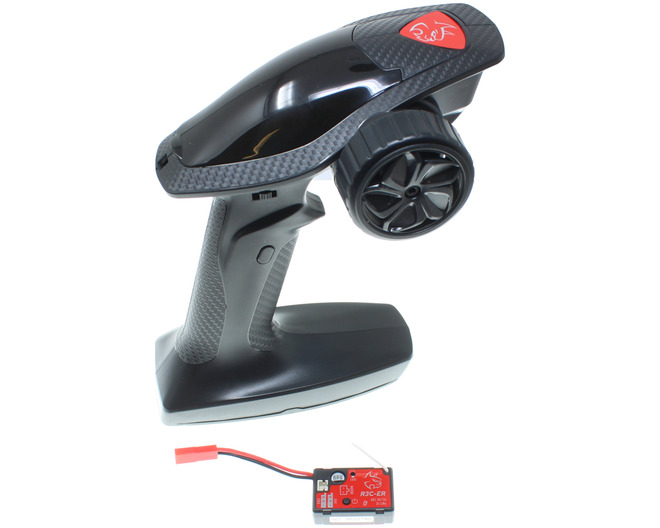

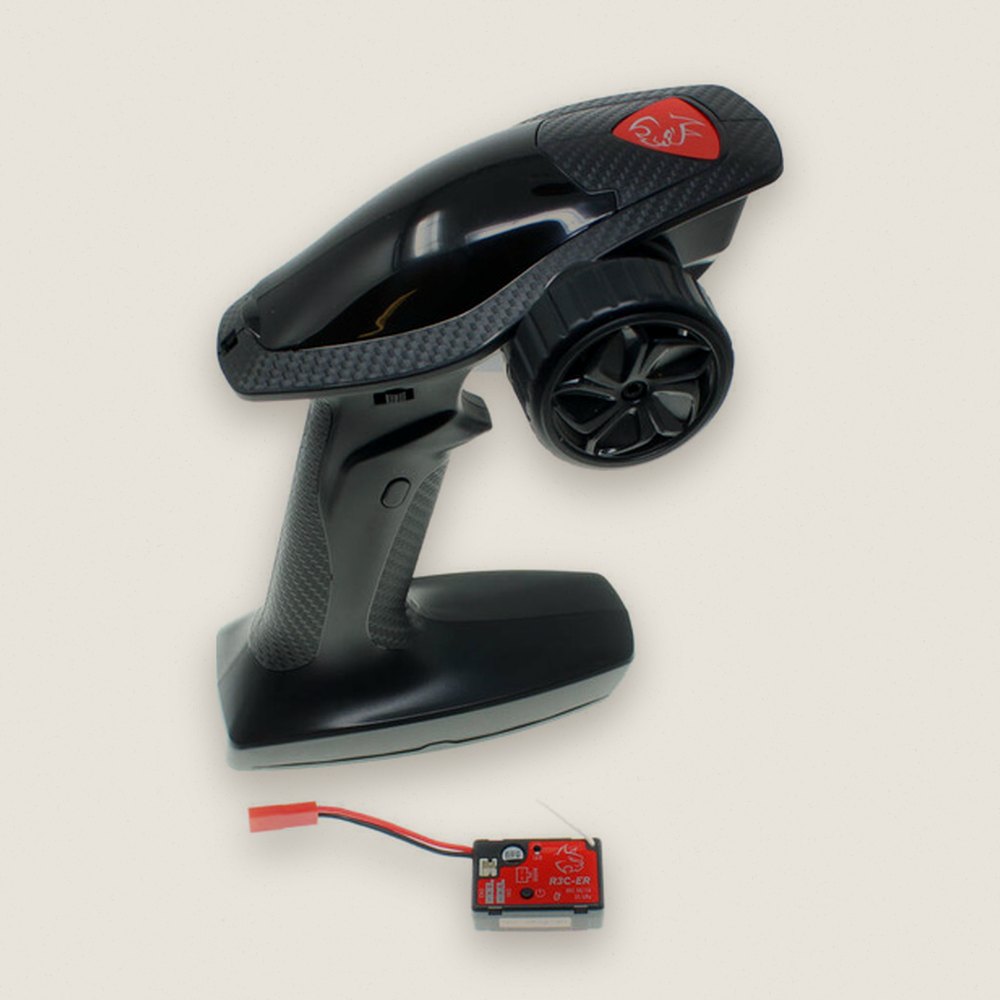

Radio System, Flysky with 2n1 R3c Esc/Rx - Redcat

About this part

• Flysky radio with a 2-in-1 R3C ESC/receiver, fitting the Redcat 1:18 Ascent Rock Crawler.
• TRANSMITTER

Specifications

• Number of Channels 4
• Compatible Receivers RCR-R3A
• Compatible Models Car, Boat
• RF 2.4GHz ISM
• Maximum Power <20dBm (e.i.r.p.) (EU)
• 2.4GHz Protocol 2A-BS
• Distance >300m (no-interference ground distance)
• Channel Resolution 1024
• Input Power 4 x 1.5AA
• Charging Jack None
• Life Time according to battery type
• Low Voltage Alarm <4.2V
• Antenna Single built-in antenna
• Data Interface None
• Temperature Range -10C ~ +60C
• Humidity Range 20% ~ 95%
• Online Update None
• Color Black
• Dimensions 160x193x97mm
• Weight 220g
• Certifications CE, FCC ID: N4ZG4P00
• ESC/RECEIVER

Specifications

• Number of Channels 3
• Compatible Models 1:18 Crawler
• RF 2.4GHz ISM
• 2.4GHz Protocol 2A-BS
• Distance 300m (no-interference ground distance)
• Antenna Single external antenna
• Input Power 2S LiPo
• BEC Output 5V/1A
• Data Interface PWM
• Continuous / Peak Current 10A/40A
• Motor Type Brushed Motor
• Applicable Motors 180 Brushed Motor
• Online Update None
• Waterproof PPX4
• Temperature Range -10C ~ +60C
• Humidity Range 20% ~ 95%
• Weight 9.8g
• Dimensions 38x25x13mm
• Certifications CE, FCC ID: 2A2UNR3A00

Fits
