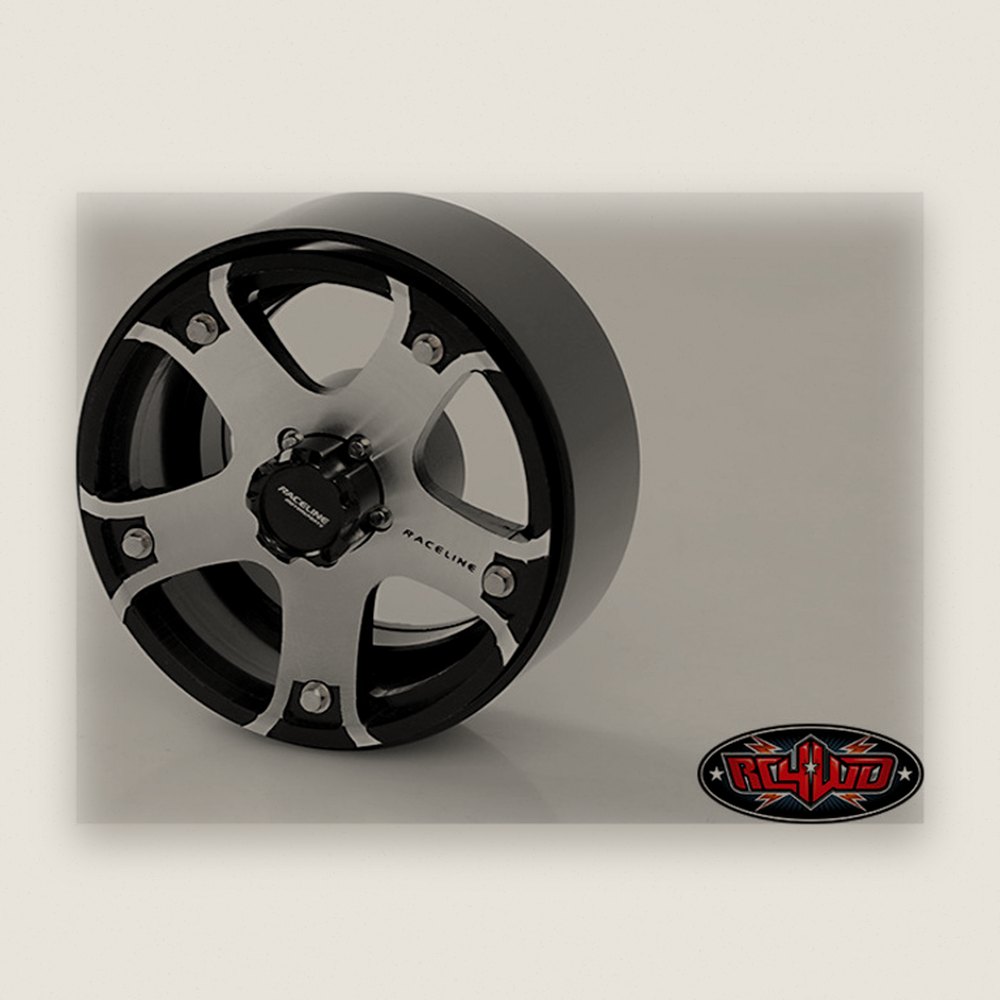

Beadlock Wheels, Raceline Gunner 1.7, Set of 4 - RC4WD

About this part

Raceline Gunner beadlock wheels in 1.7 in size. CNC machined billet aluminum with a black anodized finish, and a scale wheel nut cover with the Raceline logo.

Specifications

• CNC machined billet aluminum
• Black anodized finish
• Fits standard 12mm hex
• Wheel size: 1.7 in
• OD: 1.7 in / 44 mm
• Width: 0.93 in / 23.7 mm
• Center hole OD: 0.16 in / 4.1 mm
• Positive offset: 0.3 in / 12 mm
• Each wheel weighs 1.72 oz / 49 g
• YOU GET:
• 4x Raceline Gunner 1.7 in beadlock wheels
• 1x miniature scale hex bolt tool for M2.5 & M3 scale bolts (2.5mm hex) (Z-S0635)
• 1x miniature scale hex bolt tool for M1.6 scale bolts (1.5mm hex) (Z-S1328)
• 4x special 12mm axle wheel hexes
• 4x nylock nuts M4 (silver) (Z-S1265)
• 4x M3 x 3mm set screws
• 2x M2.5 x 12mm FHSC (black)
• 1x Raceline decal sheet
• REPLACEMENT HARDWARE:
• 20x M1.6 x 4mm hex bolts (silver) (Z-S1124)
• 20x M2 x 5mm hex bolts (silver) (Z-S0624)
• 32x M2.5 x 5mm FHSC (black)
• USE SCALE HEX BOLTS for a realistic look.

Notes

• Tires and wheels vary between makers, so RC4WD tires and wheels are the ones we vouch for together. Other brands may work, but no guarantees.
