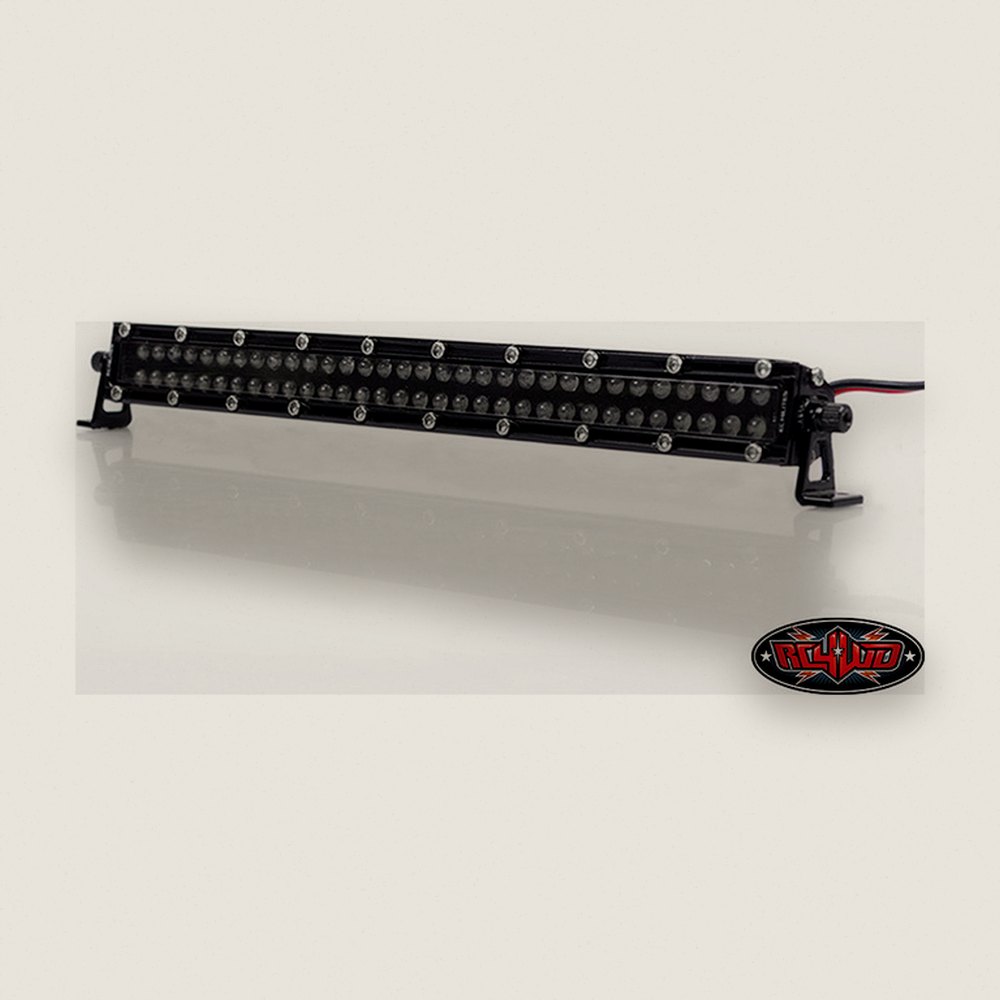

LED Light Bar, High Performance, 1:10, 150mm/6 - RC4WD

About this part

A 150mm high performance LED light bar with 64 super bright LEDs. Cast molded housing, vented side to get rid of heat, and reversible L brackets to fit a bunch of setups.

Specifications

• Cast molded housing
• Reversible L brackets for many applications
• Adjustable L brackets for rotating light
• 64 individual super bright LED bulbs
• Vented on side to dissipate heat
• Works with up to 11.1V LiPo, with a BEC to regulate voltage below 7.4V
• Standard receiver plug, connects to an extra channel on the receiver
• 2mm mounting holes
• Overall length: 6.7in / 170.5mm
• Light bar width: 5.9in / 150mm
• Overall height: 0.82in / 21mm
• Light bar height: 0.63in / 16.2mm
• Weight: 2.43oz / 69g

Notes

• Use medium grade threadlock on the L bracket nut so it doesn't come loose and the light stays in position.
• Mounting hardware: M2 SHCS / M2 BHSC.
• The receiver plug is there for convenience only. The receiver can't supply enough power, so the bar will be dim. For full brightness, power it from your battery or use a BEC.
• FITS:
• Axial AX-10 Deadbolt, Axial AX-10 Ridgecrest Crawler, Axial AX-10 Scorpion Crawler, Axial RR-10 Bomber, Axial SCX-10 II, Axial SCX-10 II Deadbolt
