Cast Straight Rear Axles, 1.9 Yota Ultimate Scale - RC4WD

About this part

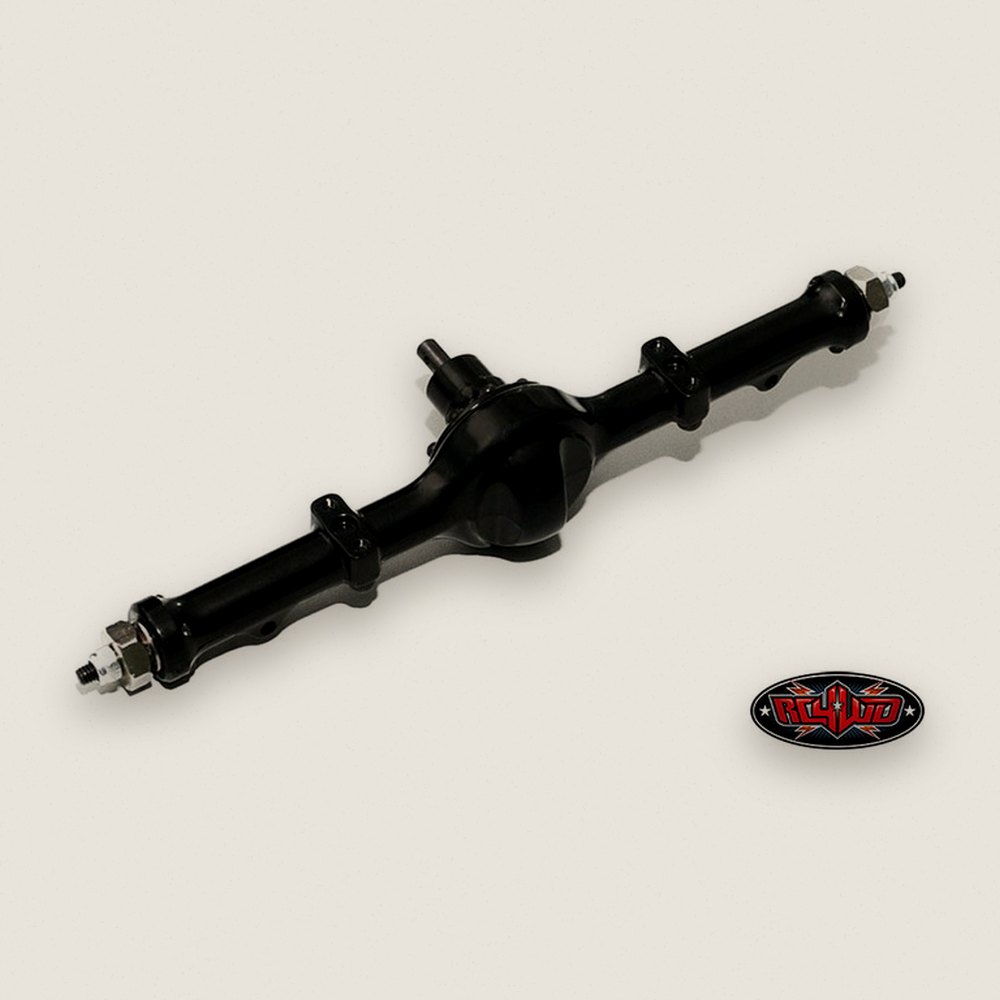

The Yota Ultimate Scale cast straight axle. It's the most scale and most detailed axle on the market, with a removable center cap and diff housing, lower mounts that let you run the shocks front or back, and a compact offset pumpkin. Engineered by Fracture in New Zealand and made by RC4WD.

Features

• Die cast, lightweight metal housing
• Hardened steel spool gears
• 5mm axle output shaft
• Full ball bearings
• Powder coated black
• Designed for 1:10 scale trucks

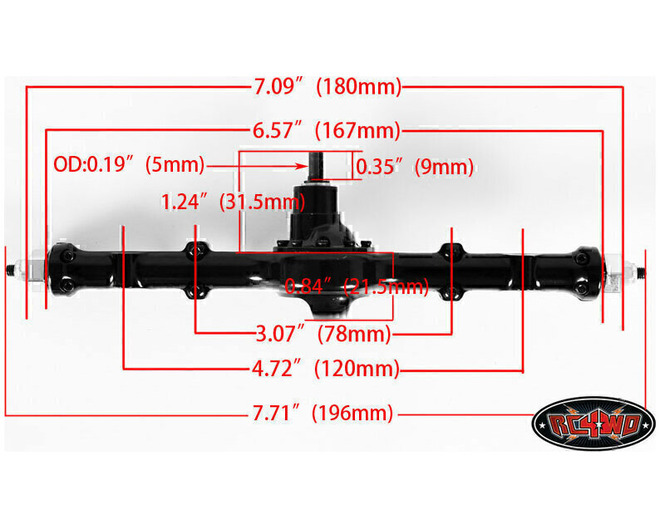

Specifications

• Hex to hex width: 179mm / 7.04in
• Pin to pin width: 168mm / 6.61in
• Total width: 180mm / 7.09in
• Pumpkin height: 35.8mm / 1.4in
• Leaf mount width: 78mm / 3.07in
• Gear ratio: 2.67:1
• Output shaft OD: 5mm / 0.19in
• Hex: 12mm steel
• Weight: 1441g / 4.95oz
• FITS:
• RC 4WD Terrain

Fits
