Pinion Gear, 27-Tooth Steel Mod 0.6 5mm - Hot Racing

About this part

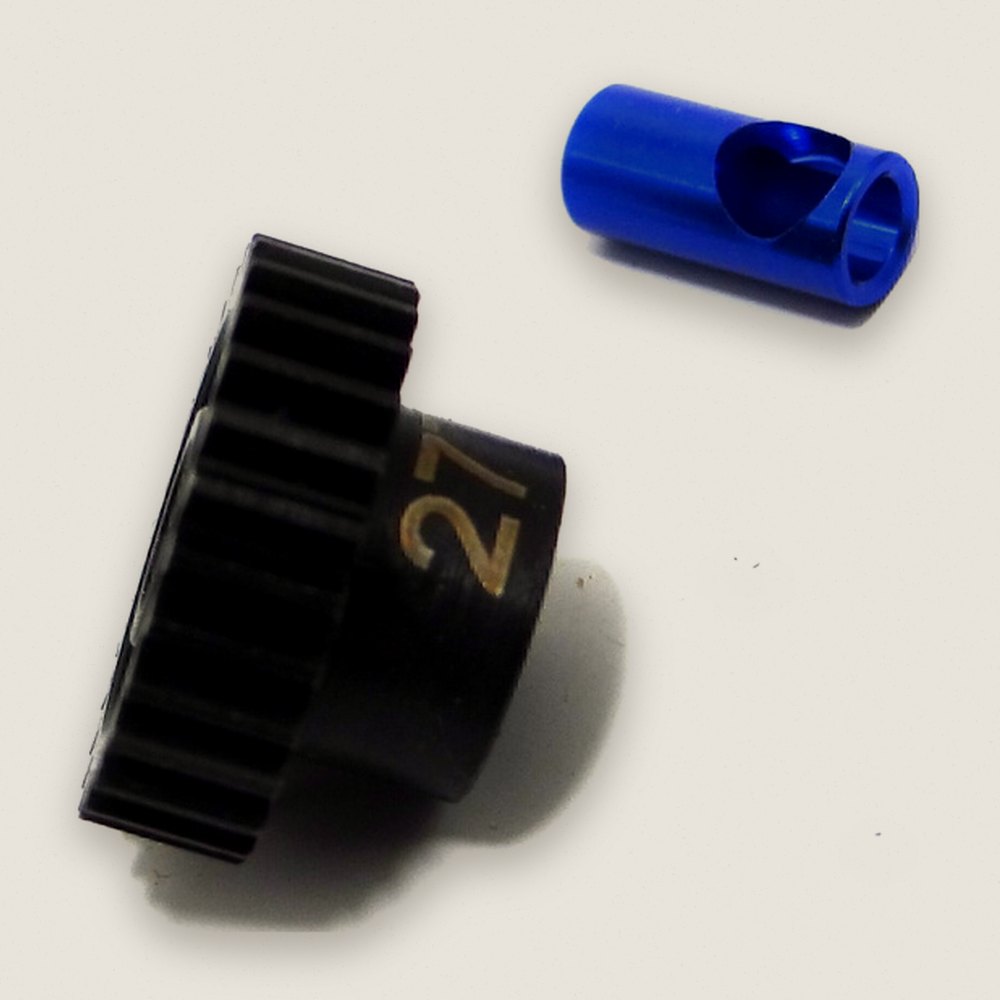

Hot Racing 27T, 0.6 module (~42P) steel pinion for 5mm or 1/8in motor shafts. Heavy, long, and ready to bite.

Features

• CNC machined steel with a black nitride finish
• Heavy duty 4mm set screw
• Long hub for maximum motor shaft contact
• Laser-marked tooth count
• Includes a 5mm-to-1/8in shaft adapter so one gear runs on either size shaft

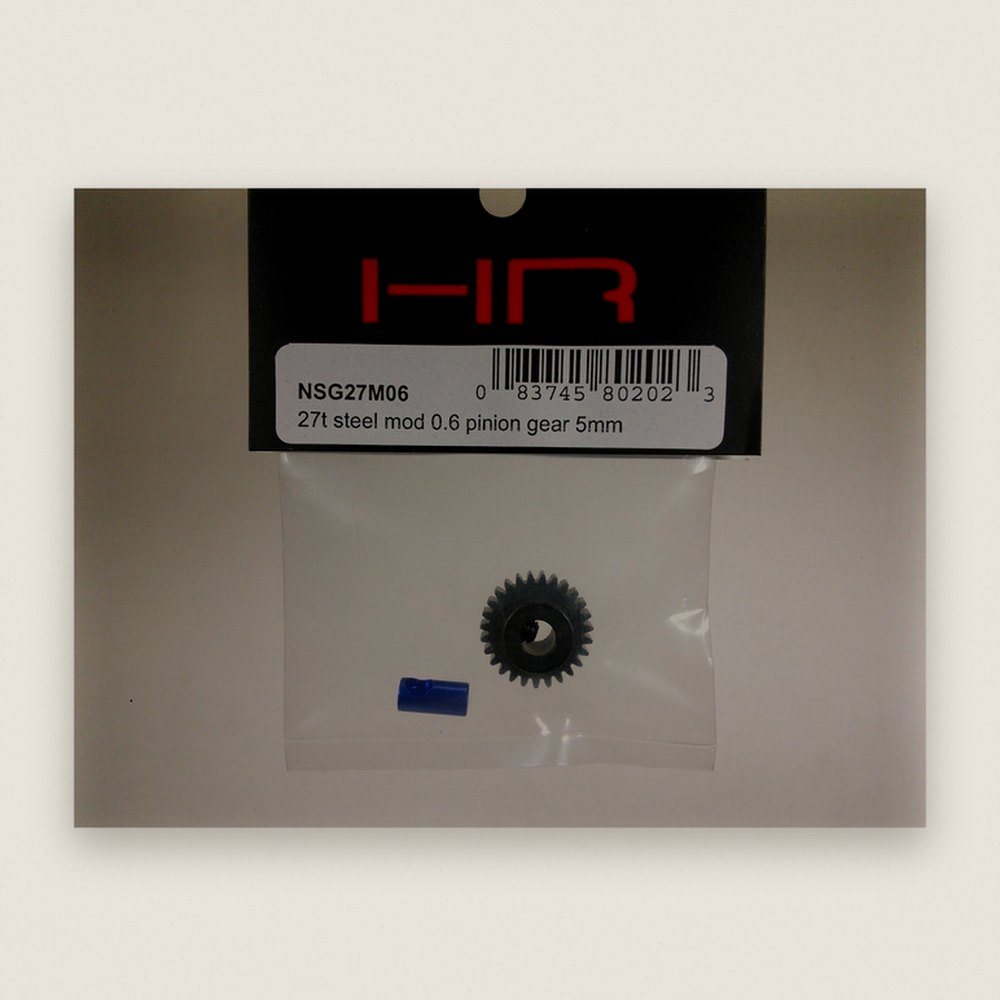

• IN THE BOX:
• One 27T, 0.6 mod pinion gear
• One M4x4mm set screw
• One 5mm-to-1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable thread locker (blue threadlocking compound) on the set screw is recommended

Specifications

• Teeth: 27
• Pitch: 0.6 module (~42P), length 10.5mm
• Outside diameter: 17.3mm
• Tooth face width: 5mm
• FITS:
• HPI Electric E10
• Tamiya Bruiser
• Tamiya CR-01 Crawler FJ40
• Tamiya F-150/S-10
• Tamiya FF-03
• Tamiya Hi-Lift: F350 Tundra HiLux
