About this part

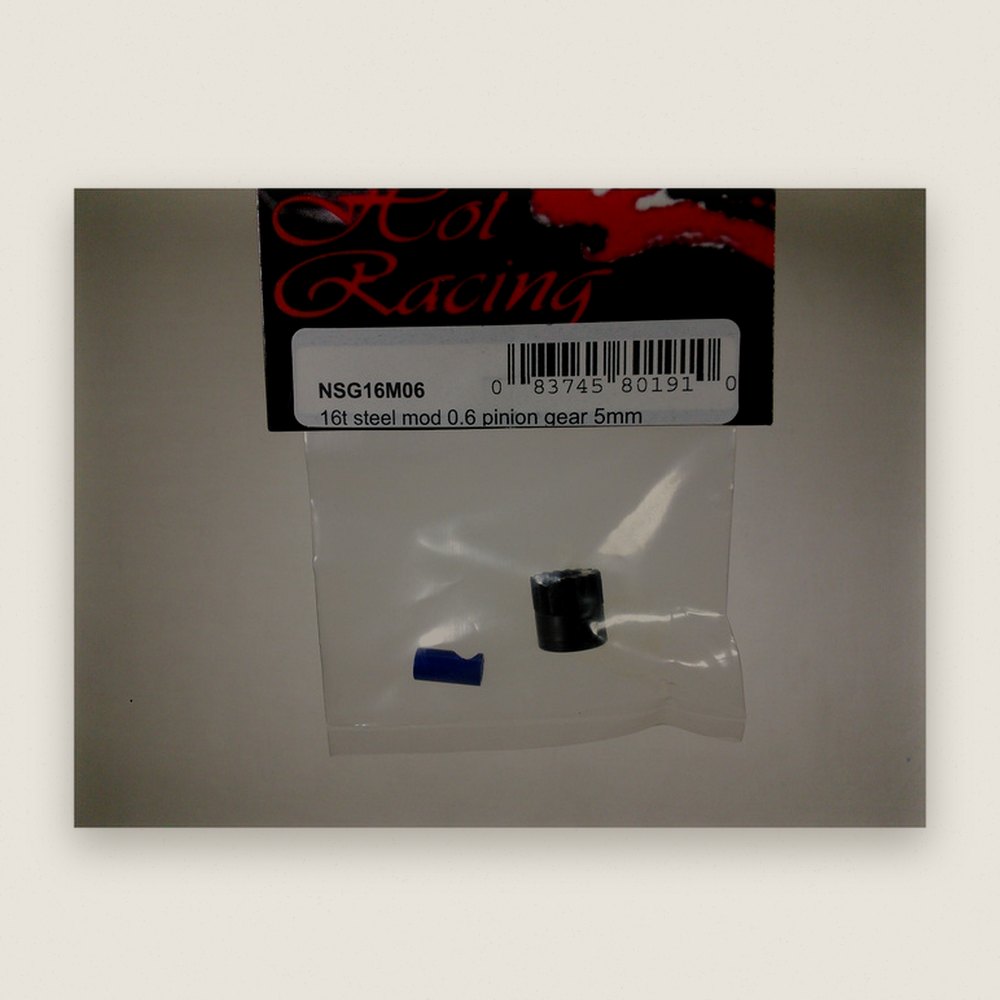

A 16-tooth, 0.6 module steel pinion that runs on 5mm or 1/8in motor shafts. CNC cut from steel with a black nitride finish, and it's built to hold up to abuse. The long hub grabs more of the shaft, and the tooth count is laser marked so you never have to guess.

Features

• CNC machined steel with black nitride finish
• Heavy duty 4mm set screw
• Long hub for maximum motor shaft contact
• Laser-marked tooth count
• Includes a 5mm-to-1/8in shaft adapter for both shaft sizes
• IN THE BOX:
• One (1) 16T, 0.6 mod pinion gear
• One (1) M4x4mm set screw
• One (1) 5mm-to-1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable blue threadlock recommended on the set screw

Specifications

• Teeth: 16
• Pitch: 0.6 module (~42P)
• Length: 10.5mm
• Outside diameter: 10.8mm
• Tooth face width: 5mm
• FITS:
• Tamiya TA01, TA02, TL-01, TA02W, TA03, F-150/S-10
