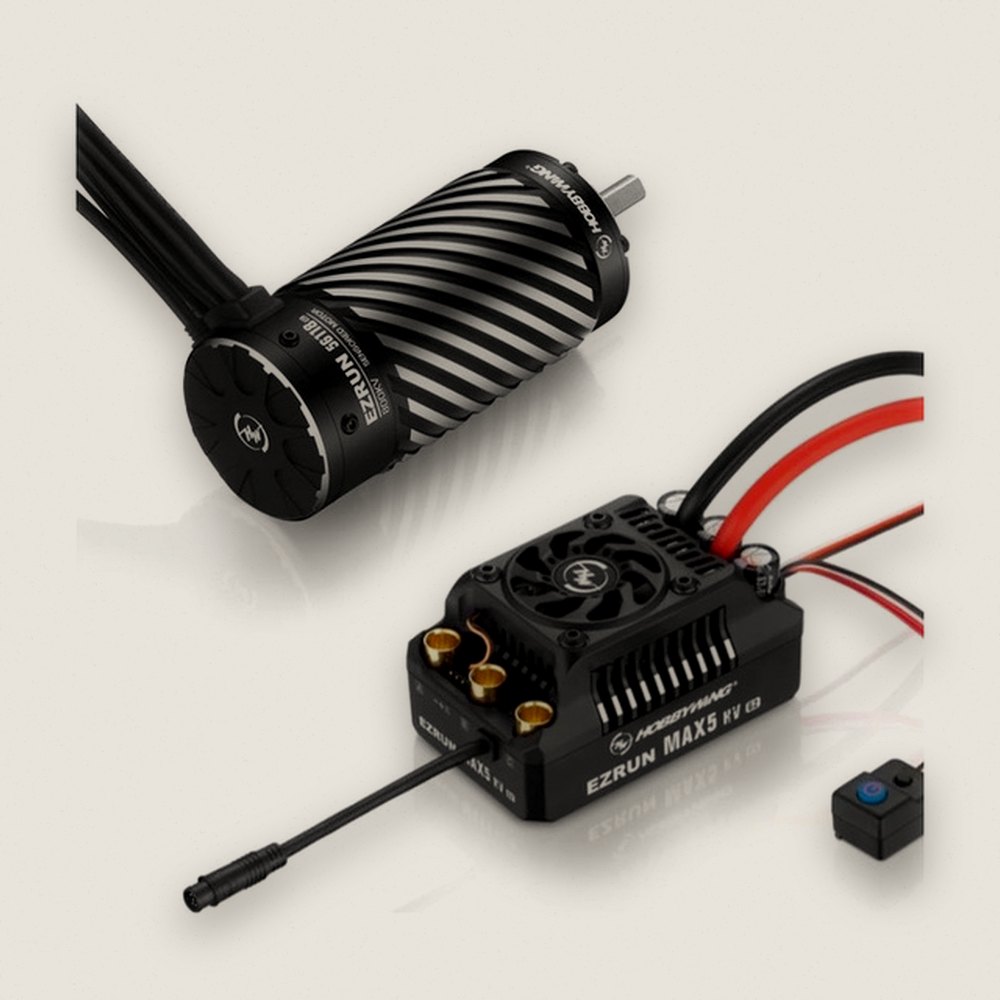

Combo, Max5 Hv G2 with G2-56118sd G2 800kv - Hobbywing

About this part

Max5 HV G2 ESC paired with a 56118SD G2 800kv motor, built for 1/5th buggies and trucks. Serious power for the big-boy classes.

Specifications

• Cont./peak current: 250A/1600A
• Motor type: sensored / sensorless brushless
• Application: 1/5th buggy/truck
• Motor limit*: with 8S LiPo, KV < 1200; with 12S LiPo, KV < 800 using 56118 size motor
• LiPo cells: 6-12S
• BEC output: 6V/7.4V/8.4V adjustable, 8A continuous (switch-mode)
• Size/weight: 94.5(L) x 59.4(W) x 50.9(H) / 428.5g (including input wires)
• MOTOR

Specifications

• KV: 800KV
• LiPo range: 8-12S
• No-load current: 6.9A
• Diameter/length: 56mm x 119.2mm
• Shaft diameter: 8mm
