G2 Esc, Ezrun 5690sl 2400kv - Hobbywing

About this part

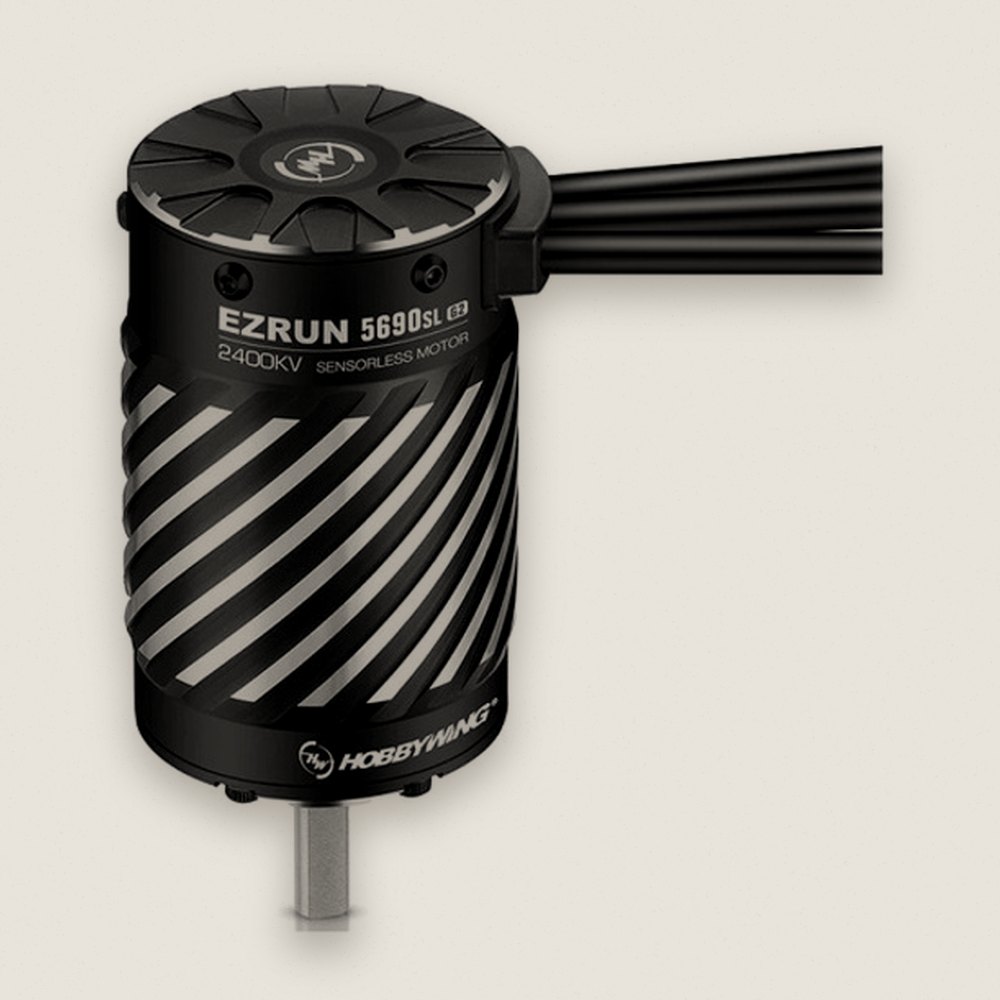

Ezrun 5690SL, 2400KV, G2. Top-end speed for 1/7 and 1/8 rigs. Unleash the top end. This motor puts out big power and handles high RPM, so it is built for fast runs. Designed to pair with the EzRun MAX5 HV Plus G2 ESC for higher speeds and more power output. Grooved housing pulls heat away, so temps stay lower and high-power, high-torque runs last longer. Built tough: CNC aluminum housing, top-tier bearings, ultra-thin silicon steel, high-temp oxygen-free copper wire, a carbon fiber-wrapped explosion-resistant rotor and a high-strength aluminum output shaft keep the performance up over time.

Specifications

• KV Value: 2400KV
• LiPo Cells: 6-8S
• No-load Current: 16A
• Outer Diameter/Length: 56mm (2.2in) / 90.5mm (3.56in)
• Shaft Diameter/Exposed Length: 8mm (0.315in) / 30mm (1.18in)
• Bearing Size: Front D22*D8*T7, Rear D19*D8*T6
• Poles: 4
• Weight: 885g
• Application: 1/7 and 1/8 vehicles for extreme speed
