Mighty Mini Metal Gear Servo HS-225MG, Ball Bearing S, Universal - Hitec/RCD

About this part

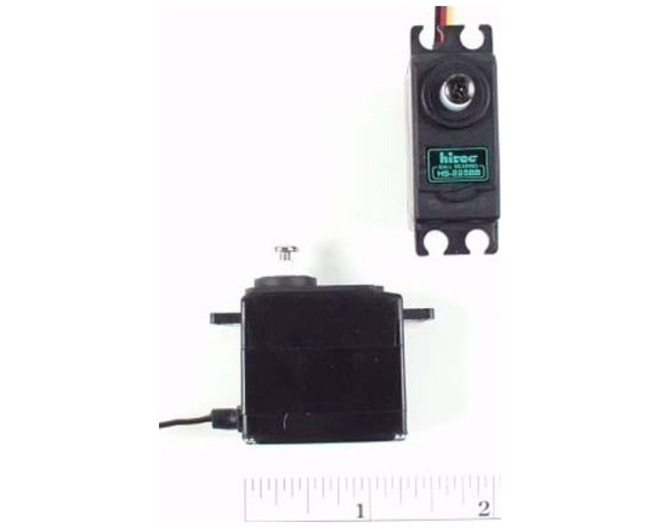

This is the HS-225MG Precision Mini from Hitec, in the Universal S/Z/JR and Futaba J version. Ball bearing, metal gears, indirect drive and a hybrid circuit, all in a light, small package for sailplanes and weight-sensitive builds.

Features

• Light weight and small
• Ball bearing
• Metal gears
• Indirect drive
• Hybrid circuit
• YOU GET:
• One HS-225MGS metal gear micro servo
• Four screws, grommets and eyelets
• Three servo arms and one wheel
• SPECS:
• Length 32.4mm x width 16.8mm x height 30.8mm (1.27 x 0.66 x 1.21 in)
• Transit 0.14 sec/60 at 4.8V, 0.11 sec/60 at 6.0V
• Torque 3.9 kg-cm (54.2 oz-in) at 4.8V, 4.8 kg-cm (66.7 oz-in) at 6.0V
• Weight 31g (1.09 oz)

Comments

• Replacement metal gear set is #56396
