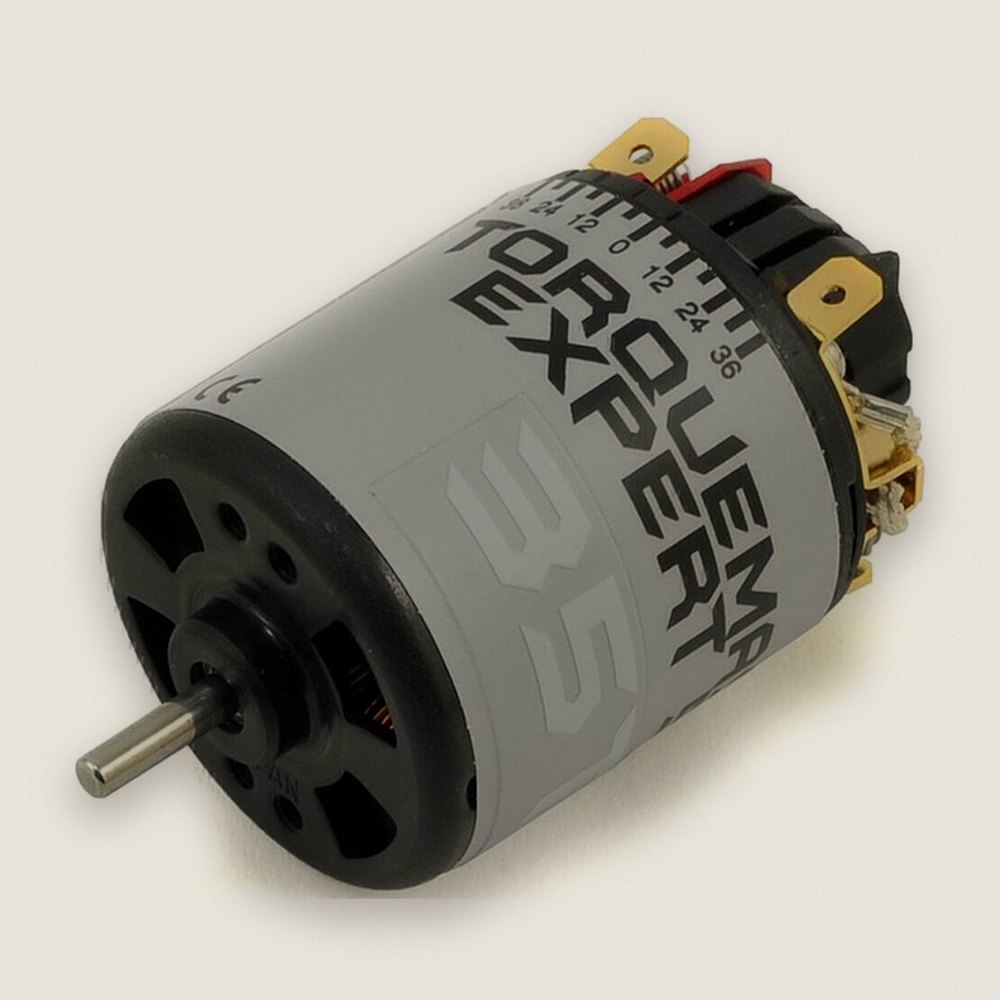

HHB110100008Brushed Electric Motor, TorqueMaster Expert 540, 35t - Holmes Hobbies
Holmes Hobbies Electric Motors
$70.59
Out of stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked: this one just sold out — check back soon.
About this part
Need a brushed motor that is built right and will not break the bank? The TorqueMaster Expert 540 is a 35-turn Holmes Hobbies motor with a machine-wound armature, part of the Expert series. FITS: Axial AX-10 Deadbolt, Axial AX-10 Ridgecrest Crawler, Axial AX-10 Scorpion Crawler, Axial RR-10 Bomber, Axial SCX-10 II, Axial SCX-10 II Deadbolt
Features
- Machine-wound armature, standup brush and 7.5mm commutator for more power and motor longevity
- Gold plated copper brush hood to resist corrosion and keep resistance low
- 4mm web, 3-slot armature for more power and RPMs
- 1.4mm thick can with minimal venting and two high-power FB9 wet magnets for torque and efficiency
- Dual ball bearings and adjustable timing
- 0.55mm extra heavy springs for a consistent drag brake
- 729 type soft brushes for high torque and long motor life
- Broken in and ready to install and run
- 30 day manufacturer warranty covering manufacturing defects
Specifications
- 35T = 1450 rpm/volt
- Motor speeds taken from averaged lots at 7 volts, zero timing, no load
